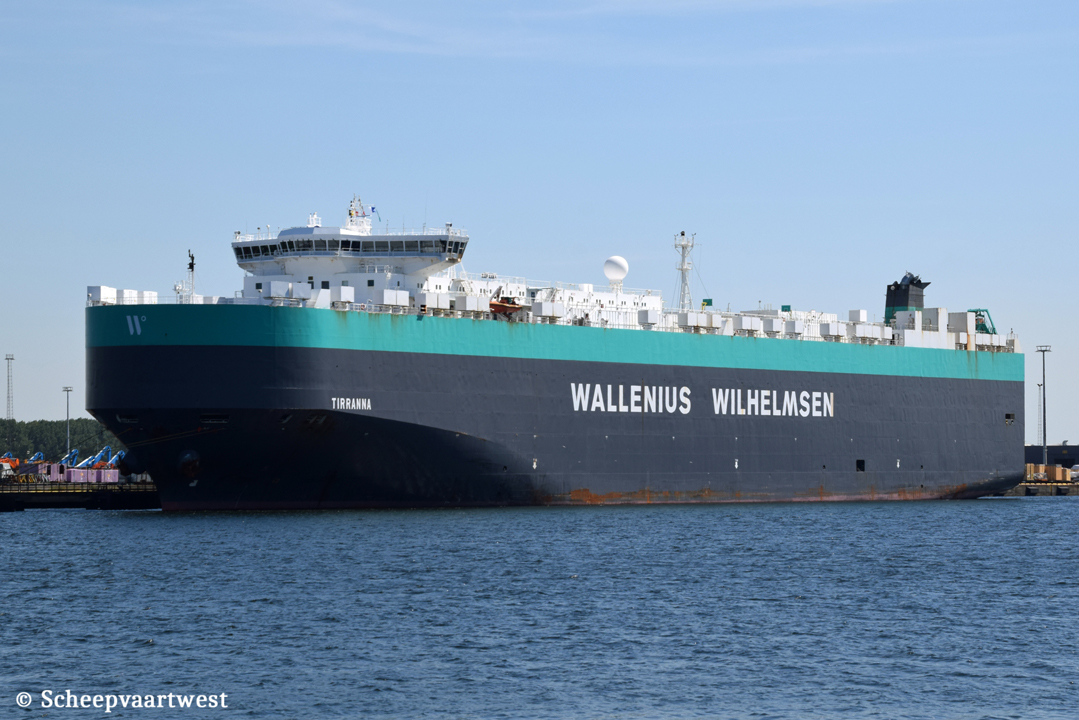

| Zeebrugge 10 August 2022 |
 |
 |
 |
 |
 |
 |
|||||

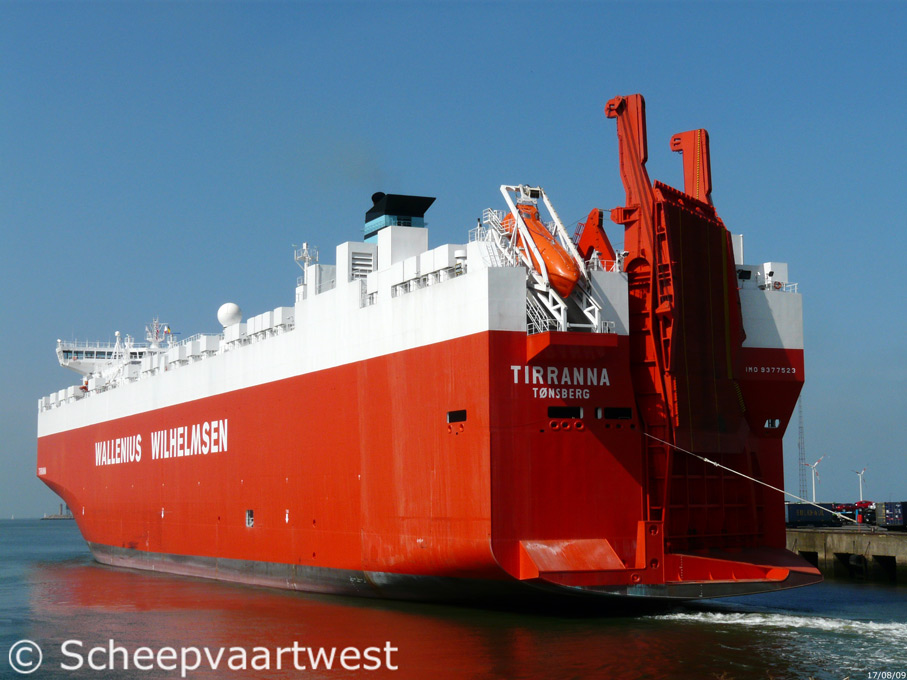

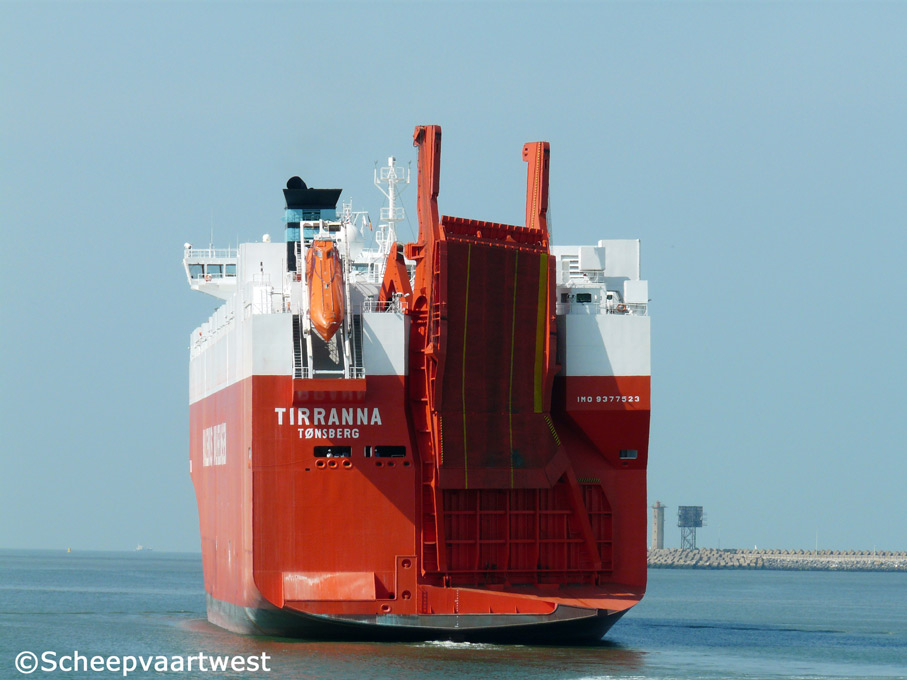

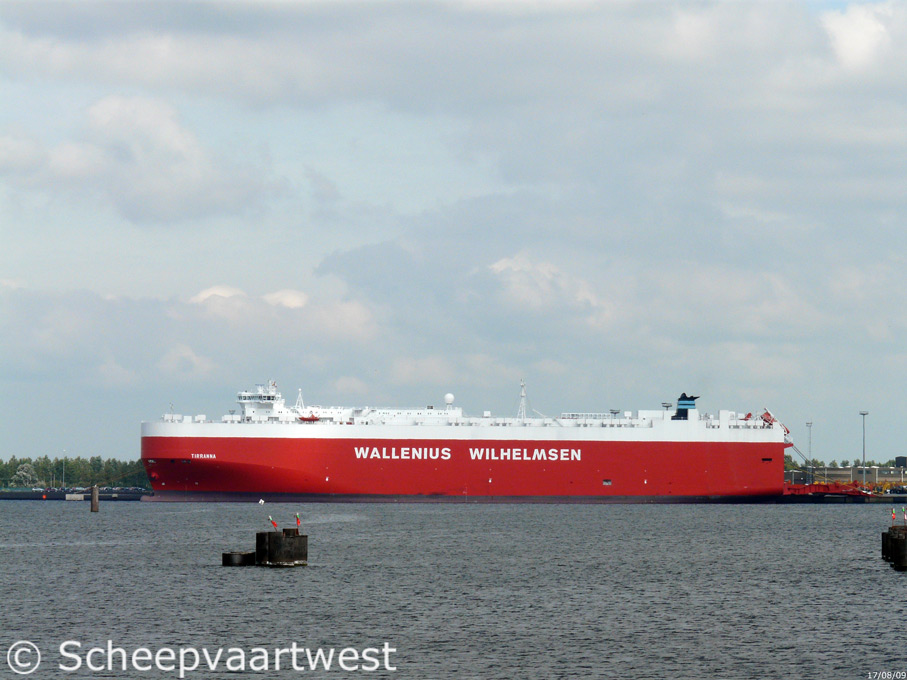

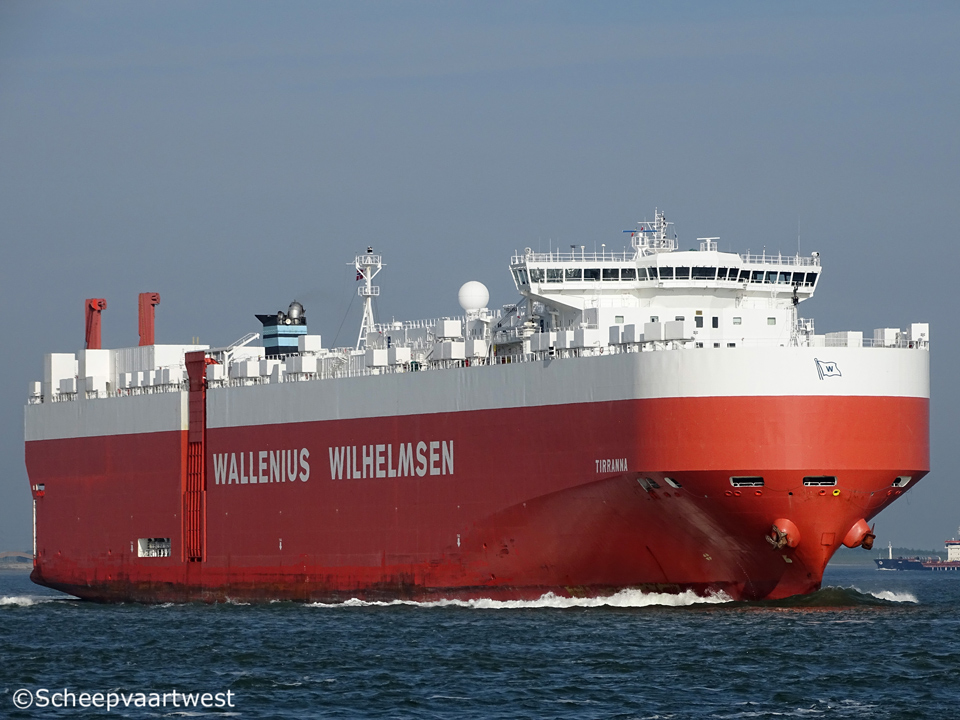

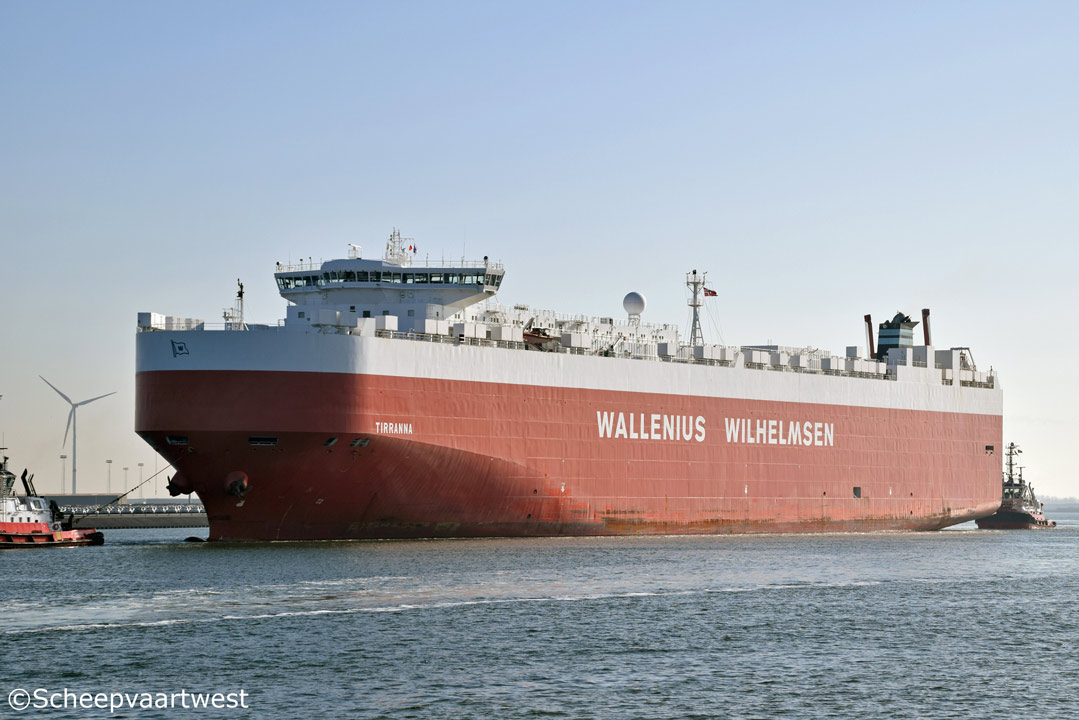

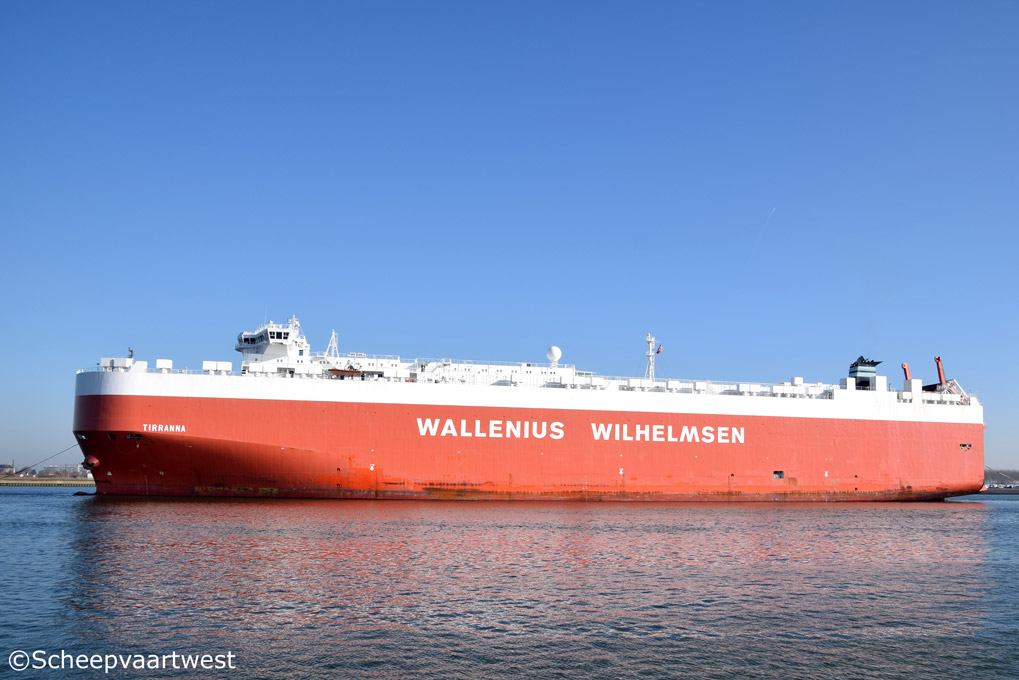

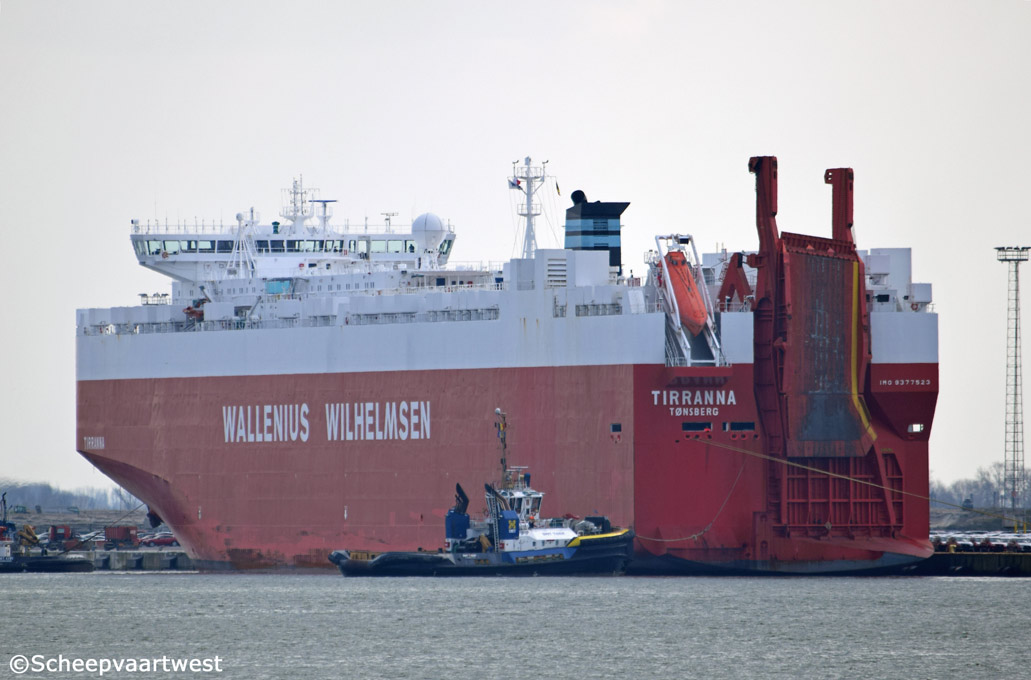

| Westerschelde 24/05/17 | Zeebrugge 15/02/17 | Zeebrugge 14/02/17 | Zeebrugge 14/02/17 | Zeebrugge 18/08/09 | Zeebrugge 17/08/09 | |||||
 |
 |
 |
||
| Zeebrugge 18/08/09 | Zeebrugge 18/08/09 | Zeebrugge 25/03/14 | ||
|
Name |

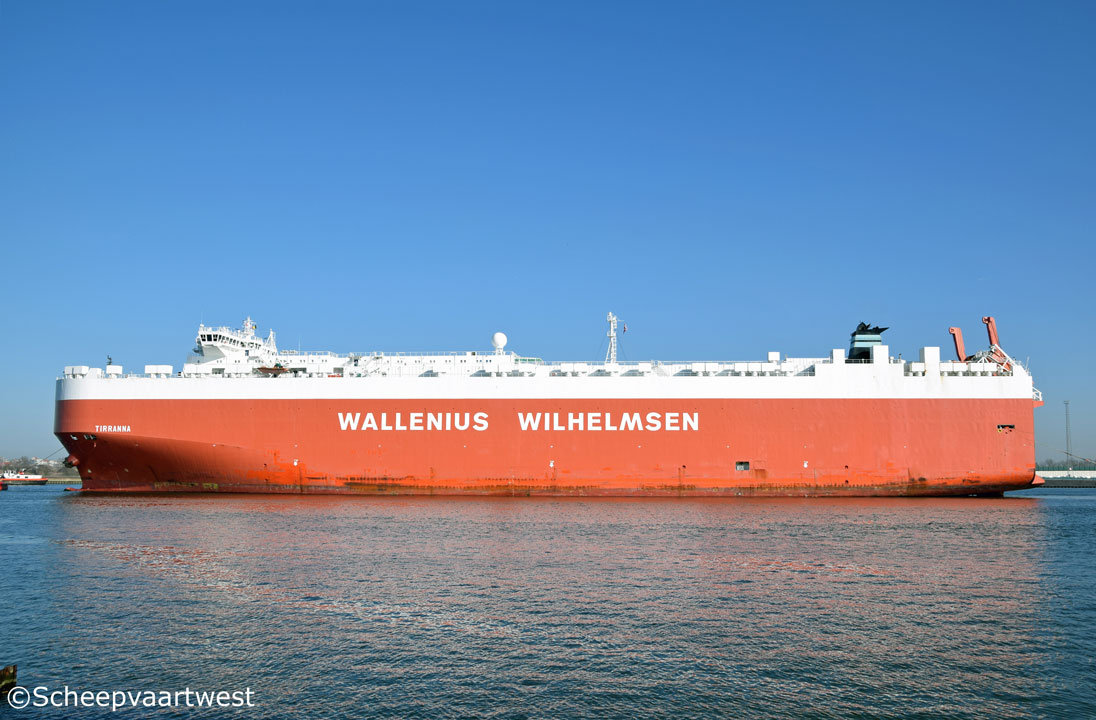

TIRRANNA |
|
Type |
Roll-On/Roll-Off vehicles carrier - Strengthened for the carriage of roll on/roll off cargoes LCTC - Large car and truck carrier |
|
IMO-number |
9377523 |
|
Call sign |
LAFU7 |
|
Flag |
Norway |
|
Port of registry |
Tønsberg |
|
GT |
71.659 |
|
DWT |
18.775 t at maximum draft |
|
NT |
33.513 |
|
Length |
236,60 m overall 219,30 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 11,32 m |
|
Air draft |
44,10 m |
|
Depth |
34,70 m to upperdeck |
|
Speed |
20,8 knots |
|
Built |
2009 |
|
Keel laid |
16/12/2008 |
|
Date of completion |
11/06/2009 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co. Ltd. 656-714 Gyeongsangnam-do Republic of Korea |
|
Yard number |
4452 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Doosan/MAN-B&W 8S60 ME-C - 2 stroke 8 cylinder 600 x 2.400 mm combustion engine 18.080 kW / 24.582 hp at 105,0 rpm |
|
Shaft generator |
1x Taiyo 1901A - 1.132 kW |
|
Propeller |
1x Fixed pitch propeller - Diameter: 6.900 mm |
|
Generators |
2x STX MAN Diesel 9L21/31H engines connected with 2 generators HHI 2726A each 1.700 kW |
|
Bow thruster |
1x 2.000 kW |
|
Number of decks |
13 |
|
Capacity deck area |
67.047 m² |
|
Capacity car units |
7.620 |
|
Stern ramp capacity |
320 t |
|
Tank capacities |
Fuel oil: 5.079 m³ Fresh water: 365 m³ |
|
Crew |
20 |
|
Commercial manager |
Wallenius Wilhelmsen Logistics Strandveien 20 1366 Lysaker Norway |
|
ISM manager |
Wilhelmsen Ship Management AS Awilhelmsen AS, Beddingen 8, 2nd floor, Aker Brygge NO-0250 Oslo Norway |
|
Registered owner |
Wilhelmsen Lines Shipowning Malta c/o Wallenius Wilhelmsen Logistics AS (WWL) Strandveien 20 1324, Lysaker Norway |
|
Latest data adjustment |
20 September 2025 |
