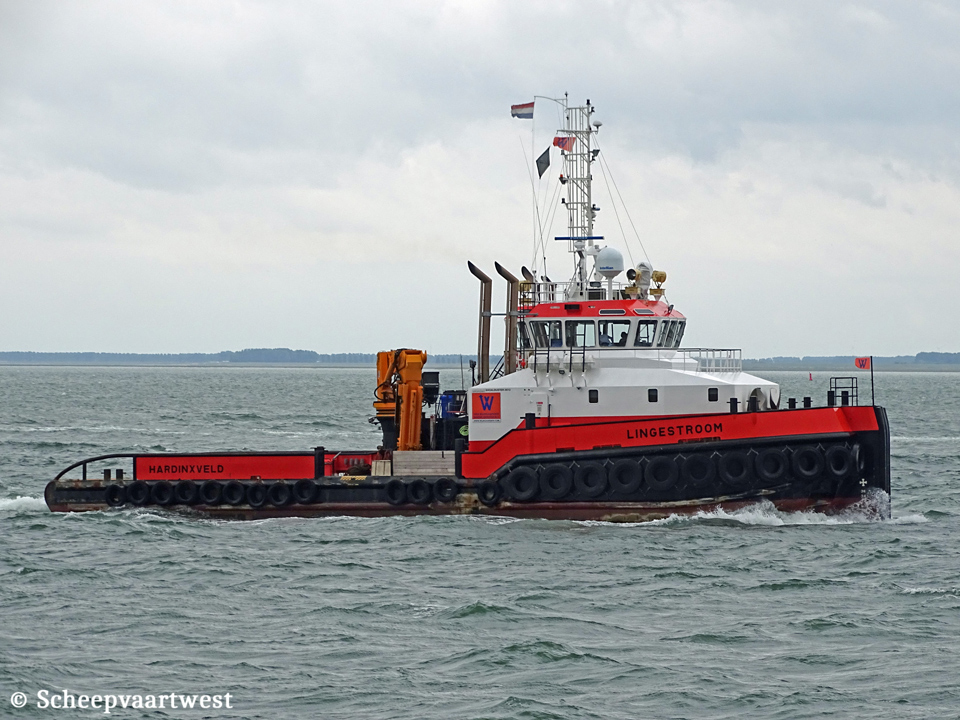

Lingestroom IMO 9819404 04

Westerschelde 18 July 2016

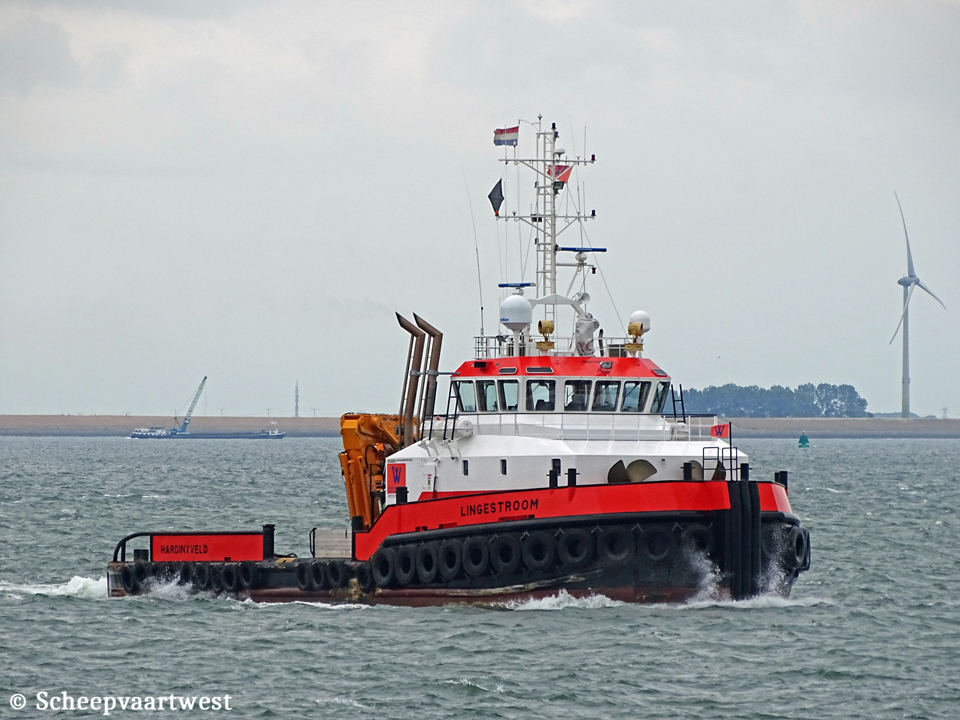

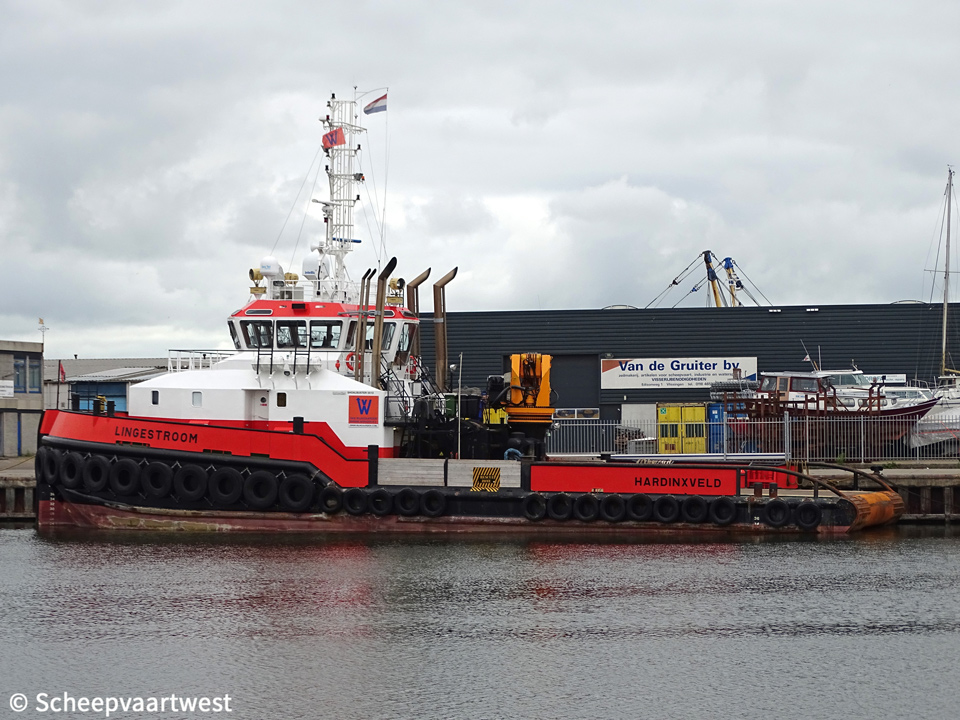

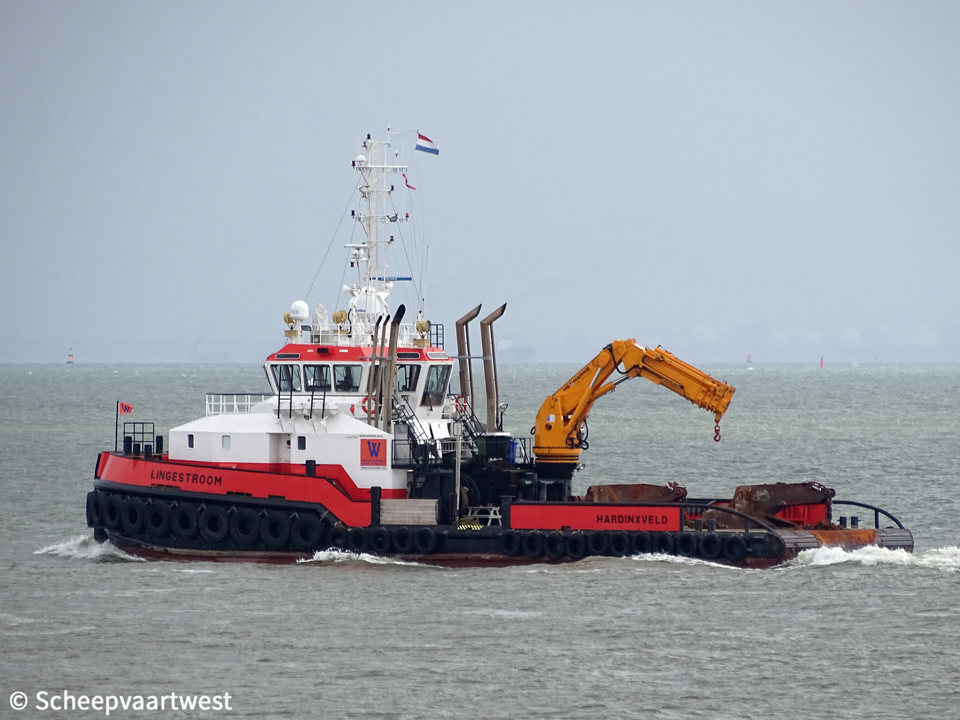

Lingestroom IMO 9819404 03   Lingestroom 01   Lingestroom 02
Westerschelde 18/07/19 Westerschelde 28/04/19 Vlissingen 15/07/19


Name

LINGESTROOM

Type

AHTS - Anchor handling tug vessel - Supply vessel

Type Shoalbuster 3512

Basic functions

Towing, Mooring, Pushing, Anchor Handling, Supplying, Surveying, Ploughing, Crew Transfer

IMO-number

9819404

Call sign

PICW

Flag

The Netherlands

Port of registry

Hardinxveld

GT

476 t

NT

142 t

Displacement

597 t

Length

34,80 m overall

34,48 m between perpendiculars

Breadth

12,00 m

Draught

Min: 2,90 m

Max: 3,40 m

Air draft

Min: 10,86 m

Max: 17,88 m

Freeboard

558 mm

Depth

4,30 m

Speed

11,4 knots

Built

2017

Date of completion

26/04/2017

Builder casco

Safe Co., Ltd. Sp z.o.o

Gdansk

Poland

Builder completion

Damen Shipyards

Hardinxveld

The Netherlands

Yard number

571764

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

3x Caterpillar type C32-TTA SCAC - 4 stroke single acting 12 cylinder 145 x 162 mm combustion engines each 970 kW / 1.319 hp at 1.800 rpm

Builder: Caterpillar, La Fayette - USA

Gearboxes

3x Reintjes, type WAF 675L - reduction 7.07:1

Propulsion

3x Fixed pitch propeller in Van der Giessen Optima Nozzle diameter 2.250 mm at 254 rpm

Generators

2x Caterpillar type C7.1 - 4 stroke 6 cylinder 110 x 127 mm diesel engine each 223 hp connected with 2 generators each 187,5 kVA / 150 kW - 230/400 VAC - 50 Hz

E-power generator

Combined with centre C32 main engine, 600 ekW @ 1.800 rpm - 440 VAC

Hydro set

Electric drive with 3x electric-motor:

2x 110 kW

1x 52 kW

Bow thruster

Electrical driven fixed pitch propeller 243 kW / 320 hp

Diameter: 960 mm

Bollard pull

61,8 t

Deck equipment

  • Hydraulic crane, HS Marine, type AKC290-LHE3, 11,3 t - 16,50 m / 24,4 t - 7,89 m

  • Towing winch, Kraaijeveld, WF - 1000 m., Ø 48 mm steel wire, 59,1 / 115 tons + incl. AH winch, 600 m., diameter 48 mm steel wire, 101,7 / 150 tons

  • Tugger winch, power 12 tons - Hydraulic towing pins + chain stopper, SWL 100 tons

  • Stern roller, L. 5,00 m., diameter 1.180 mm, SWL 165 tons

  • Towing hook & Gob eye, SWL 55 tons

  • Container locks (7x 20 ft. / 3x 10 ft.)

  • Push bow

Transfer pumps

Fuel / Fresh water, type SIHI - 50 m³/h @ 4,8 bar

Deck space

145 m²

Optional applications

A-frame, SWL 50 ton

4p-Mooring system - 700 x 600 mm

Water injection dredging system

ROV / diving platform

Tank capacities

Fuel oil: 255,0 m³

Lub oil: 3,7 m³

Hydraulic Oil: 2,0 m³

Gear oil: 3,3 m³

Dirty oil: 4,5 m³

Sludge: 2,0 m³

Fresh water: 67,0 m³

Lifting equipment

1x Hydraulic deck crane - SWL 11,3 t @ 16,50 m

Accommodation

11 Persons:

5x Crew

6x Passengers

Nautical equipment

  • 2x Radar (sea/river)

  • Magnetic compass

  • Gyro compass

  • Auto pilot

  • GPS / Satellite navigation system ECDIS

  • AIS

  • 2x Echosounder

  • Speedlog

  • Windindicator

  • 2x VHF + DSC

  • 1x VHF

  • SSB Radio + DSC

  • Navtex

  • VSAT system

  • 2x Inmarsat-C

  • EPIRB

  • SART

  • 2x HH VHF

  • Satcom + GSM

Registered owner

Van Wijngaarden Marine Services BV

Buitenweistraat 15

3372 BC Hardixveld - Giessendam

The Netherlands

Latest data adjustment

29 June 2020
