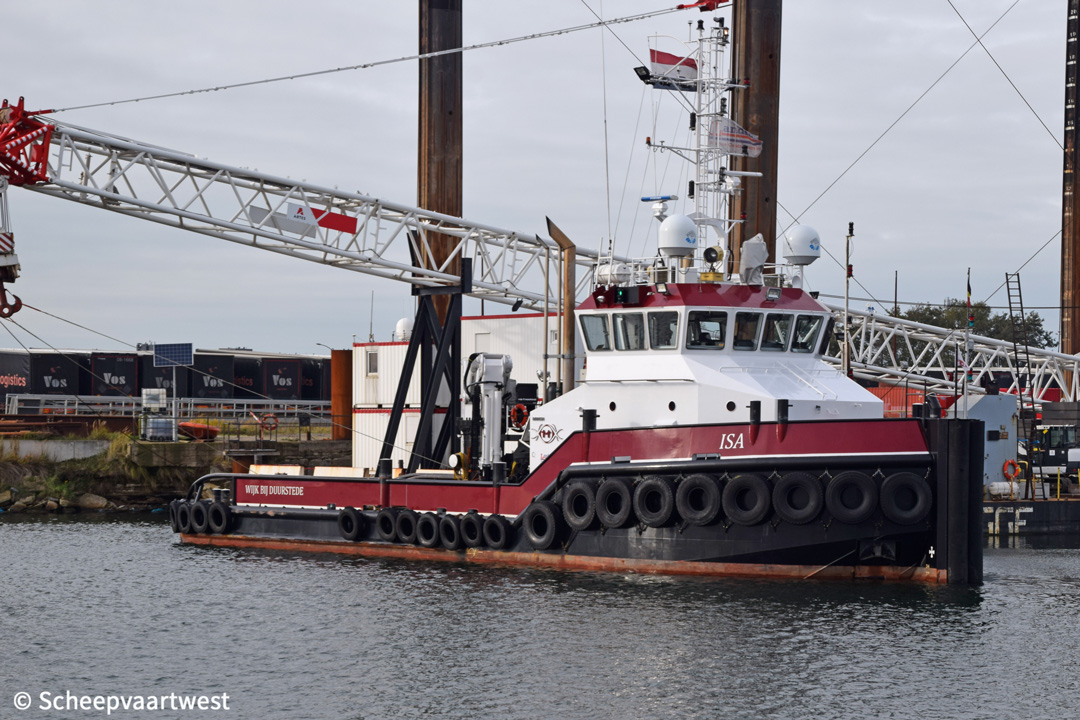

Isa IMO 9688879 01

Zeebrugge 16 November 2019

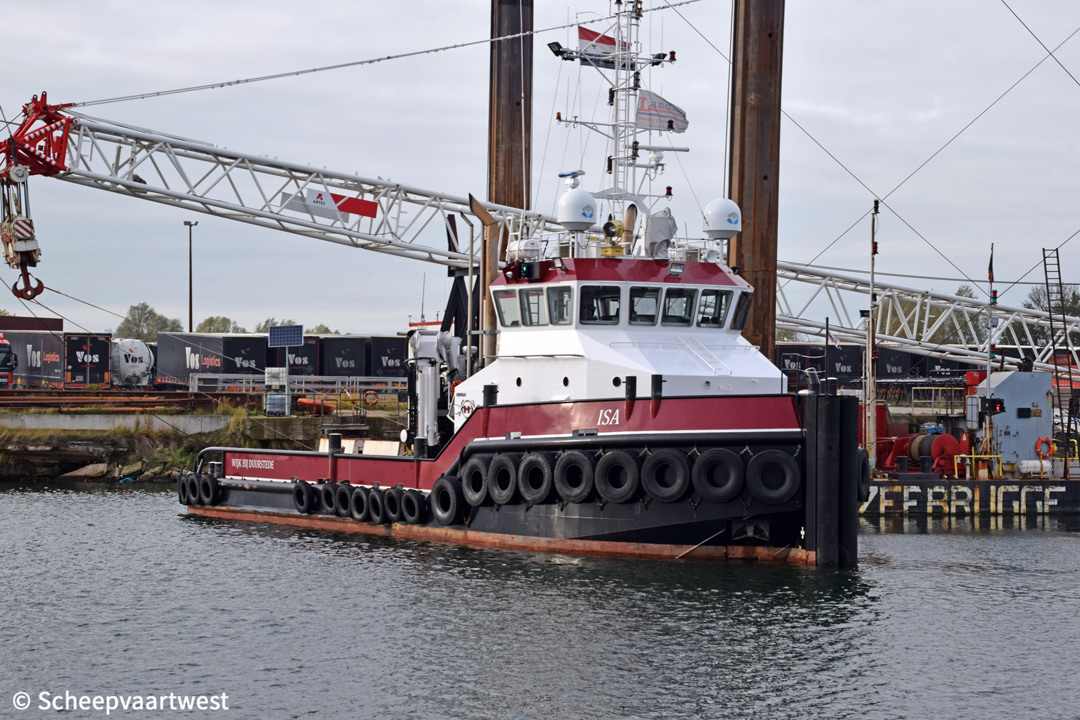

Isa IMO 9688879 02
Zeebrugge 16/11/19













Name

ISA

Type

Shallow draft anchor handling tug / Utility vessel / Pusher

Damen Shoalbuster 3209

IMO-number

9688879

Call sign

PBPG

Flag

The Netherlands

Port of registry

Wijk Bij Duurstede

GT

327 t

DWT

220 t

NT

98 t

Length

32,27 m overall

29,60 m between perpendiculars

Breadth

9,10 m

Draught

Min: 2,80 m

Max: 3,30 m

Air draft

18,00 m

10,80 m with mast lowered

Freeboard

608 mm

Depth

4,40 m at sides

Speed

Max: 11,6 knots

Built

2017

Date of completion

31/07/2017

Builder

Damen Shipyards Hardinxveld
Hardinxveld Giessendam
The Netherlands

Yard number

571713

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Machinery aft

Main engine

2x Caterpillar 3512C TA/HD - 4 stroke single acting 12 cylinder 170 x 215 mm combustion engines 2.611 kW / 3.546 hp at 1.600 rpm

Start type: Electrical starter

Built: 2015

Builder: Caterpillar Tractor Co.

Gearbox

2x Reverse reduction gears Reintjes WAF-773

Reduction: 6.44:1

Propellers

2x Fixed propellers in nozzles - aft at 248 rpm

Diameter: 2.250 mm

Generators

2x Caterpillar C-4.4 TA - 4 cylinder 105 x 127 mm diesel engines each 86 KW / 126 hp at 1.500 rpm coupled with 2 generators each 107,5 kVA - 230/400 volt 50 Hz

Built: 2015

Builder: Caterpillar Tractor Co.

Emergency generator

1x Caterpillar C18 TA-B - 6 cylinder 145 x 183 mm engine 357 kW at 1.800 mm

Built: 2015

Builder: Caterpillar Tractor Co.

Bow thruster

257 kW / 350 bhp, hydraulic driven

Bollard pull

51,6 t

Deck Equipment

Winch: DMT Waterfall Winch (WATW-H1000KN hydraulic winch)

Towing drum:

Pull Force 50 tons at 1st layer

Holding F. 150 tons at 1st layer

800 meters x 48 millimetres

Anchor handling drum: DMT WATW-H1000KN hydraulic winch

Pull Force 100 tons at 1st layer

Holding F. 150 tons at 1st layer

600 meters x 48 millimetres

Tuggerwinch: Dromec HPV12000, 12 tons

Towing pins: Double pin, SWL 50 ton

Chain stopper: SWL 75 ton

Push bow :Double Rubber Fender

Coupling winches: 2x 60 tons for pushing mode

Stern roller: 6 meters x 1,8 meters, SWL 100 t

Main marine deck crane: HS Marine AKC 210/16 HE4

Maximum lift capacity: 8,0 tons at 16,00 meters

Clear deck area

96 m²

Cargo deck load

15,0 t/m²

Tank capacities

Fuel: 226,43 m³

Fresh water: 40,8 m³

Lub oil: 7,3 m³

Hydraulic oil: 3,10 m³

Dirty oil: 4,30 m³

Sewage: 3,30 m³

Bilge water: 4,3 m³

Transfer of fuel oil: 40 m³/h

Transfer of fresh water: 40 m³

Anchor equipment

2

360 kg each

Length: 220 m

Crew

4

Navigation & Radio

2x Radar

Echo sounder

2x ECDIS

V-SAT

AIS

DGPS

Autopilot

SSB

2x Compass

Navtex

SART

EPIRB

7x VHF

2x Inmarsat-C + GMDSS

GSM

Wind meter

Speed log

2x Searchlight 2.000 Watt

Registered owner

Global Ship Leasing 44 BV
Avelingen-West 20
4202 MS Gorinchem
The Netherlands

Latest data adjustment

23 November 2019
