Viking Avant 02

Nesna, Norway 07 June 2019

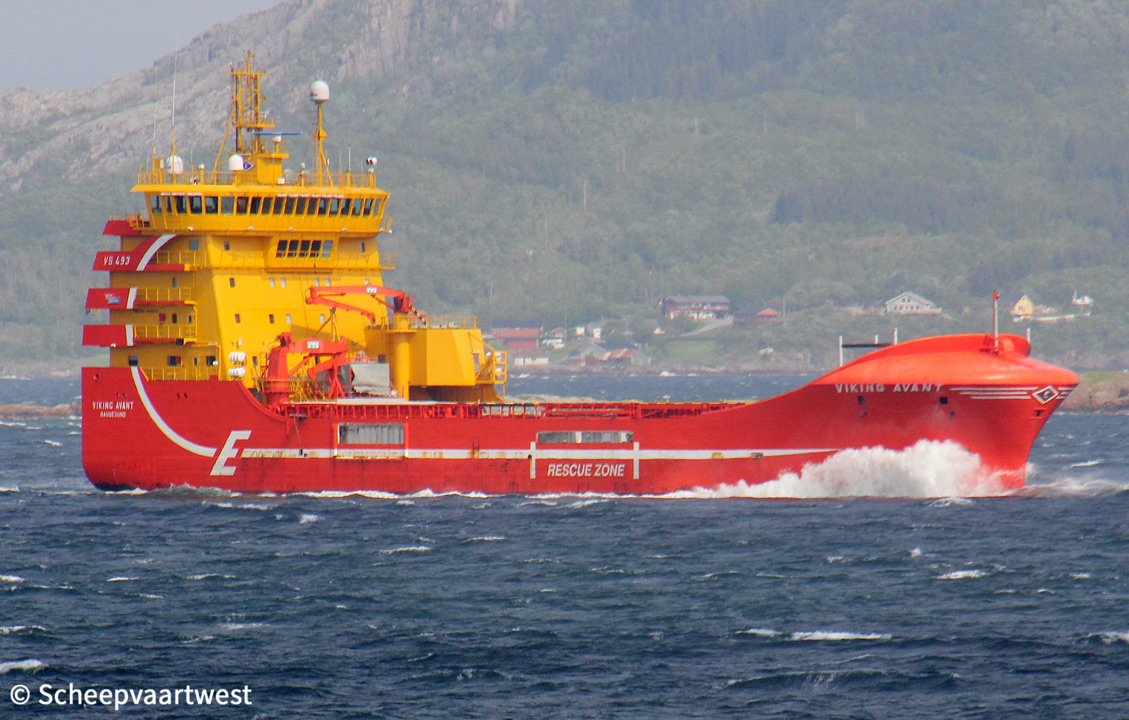

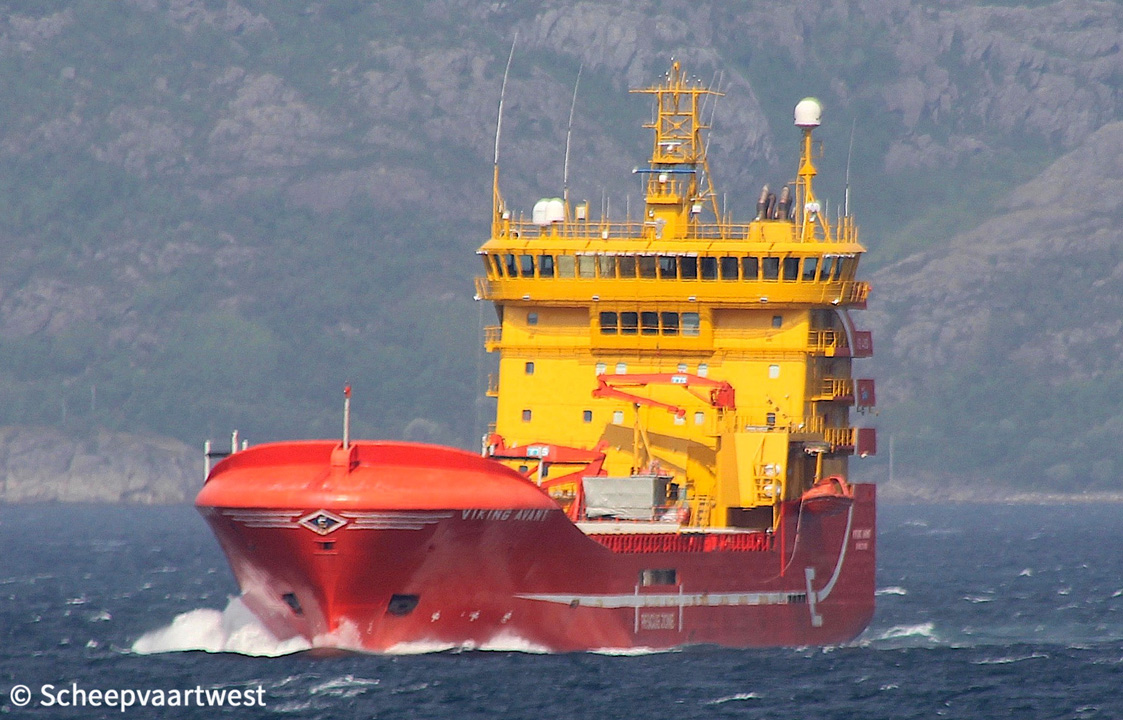

Viking Avant 01   Viking Avant 03
Nesna, Norway 07/06/19   Nesna, Norway 07/06/19













Name

VIKING AVANT

Type

Offshore supply vessel - Standby safety vessel

IMO-number

9306914

Call sign

LMSZ

Flag

Norway

Port of registry

Haugesund

GT

6.545 t

DWT

Summer: 2.500 t

NT

1.963 t

Length

92,17 m overall

84,80 m between perpendiculars

Breadth

20,40 m extreme

Draught

Max: 7,25 m

Depth

9,00 m

Speed

Max: 16,5 knots

Economic: 10,0 knots

Built

2004

Keel laid

12/09/2003

Launch date

30/04/2008

Date of completion

20/12/2008

Builder casco

Aker Tulcea SA
Tulcea
Romania

Yard number: 309

Builder completion

Vard Group AS Avd Langsten
Tomrefjord
Norway
Yard number: 197

Hull material

Steel

Bulkheads

Transverse: 4

Longitudinal: 2

Propulsion thruster

2x Fixed pitch, four-bladed propellers turning at a variable RPM each output 3.000 kW

Diameter: 3.300 mm

Generators

4x Caterpillar 3516 main diesel generatorsets each 1.800 kW at 1.800 rpm

Emergency generator

1x Caterpillar C9 diesel generatorset 250 kVA

Bow thruster

Brunvoll tunnel thrusters located forward, each rated at 1.000kW, and an 880kW Brunvoll AR-63 type retractable Azimuth thruster

Cargo capacity

3.900 t

Deck area

1.010 m²

Tank capacities

Ballast: 2.205,6 m³

Fuel oil: 1.400 m³

Fresh water: 1.000 m³

Anchor equipment

Length: 550,00 m

Diameter: 50 mm

Manager

Eidesvik AS
Vestvikvegen 1
N-5443 Bømlo
Norway

Registered owner

Eidesvik MPSV AS
Vestvikvegen 1
N-5443 Bømlo
Norway

Latest data adjustment

09 November 2019
