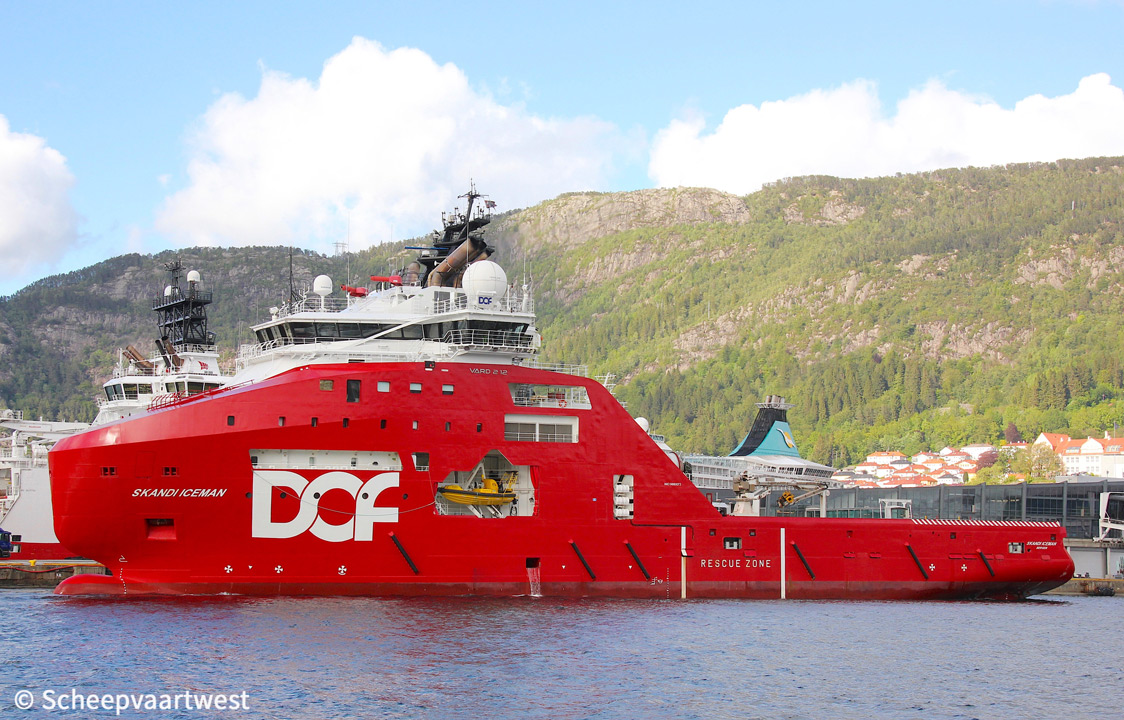

Skandi Iceman 02

Bergen, Norway 28 May 2019

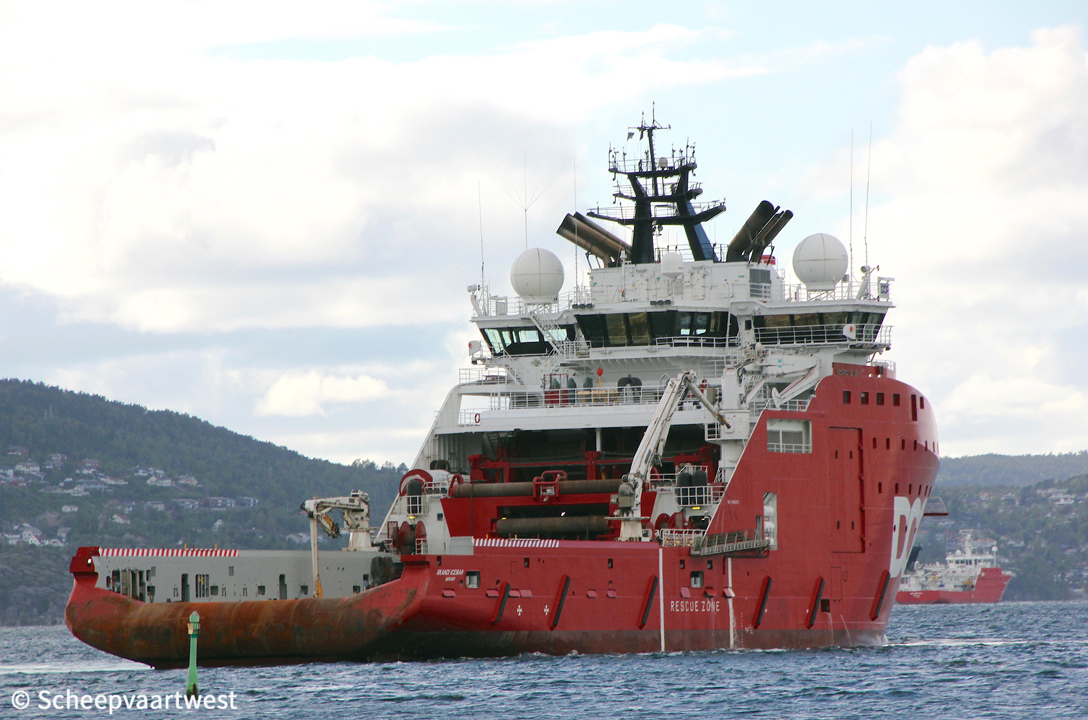

Skandi Iceman 01
Bergen, Norway 28/05/19



Name

SKANDI ICEMAN

Type

Deepsea anchor handling tug - Supply vessel - Oil recovery - Fire fighting

Type VARD AH 12

IMO-number

9660073

Call sign

LFMY

Flag

Norway

Port of registry

Bergen

GT

8.269 t

DWT

4.240 t

NT

2.481 t

Length

93,50 m overall

84,80 m between perpendiculars

Breadth

24,0 m extreme

Draught

Max: 6,50 m

Depth

9,80 m

Speed

Max: 16,5 knots

Built

2013

Keel laid

24/08/2012

Launch date

28/03/2013

Date of completion

23/10/2013

Builder

Vard Group AS Avd Soviknes (Vard Tulcea SA)
Sovik
Norway

Yard number

799

Hull material

Steel

Main engine

2x Bergen B32:40V12 - combustion engines each 6.000 kW

Propellers

2x controllable pitch propellers

Generators

3x Bergen C25:33L9ACD diesel generatorsets each 288 kW

Emergency generator

1x Nogva Scania DI12 62M diesel generatorset 335 kW

Harbour generators

1x Nogva Scania DI 1655M diesel generatorset 532 kW

Bow thruster

2x 1.200 kW

Azimuth thruster

1x 1.200 kW

Stern thruster

2x 1.200 kW

Bollard pull

280 t

Deck dimensions

780 m²

Deck strength

10,0 t/m²

Deck capacity

Appr. 3.00 t

Dry bulk capacity

250 m³

Deck equipment

AH drum: 500 t

Towing drum: 1x 500 t / 1x 450 t

Chain lockers: 4x 250 m³

Shark jaws: 2x 600 t

Towing pins: 2x 400 t

Deck crane 2x SWL 5,0 t / 1 x SWL 12,0 t

A-frame: SWL 300 t

Tank capacities

Fuel oil: 1.429 m³ (combined tanks 2.047 m³)

Pot water: 845 m³

Mud: 618 m³

Brine: 618 m³

Drill water: 3.462 m³

Ballast: 3.765,3 m

Anchor equipment

Length: 577,50 m

Diameter: 56 mm

Accommodation

For 45 persons

Manager

DOF Management AS

Operator

DOF ASA (District Offshore ASA)
Alfabygget

5392 Storebø
Norway

Registered owner

Iceman AS

Latest data adjustment

05 June 2019
