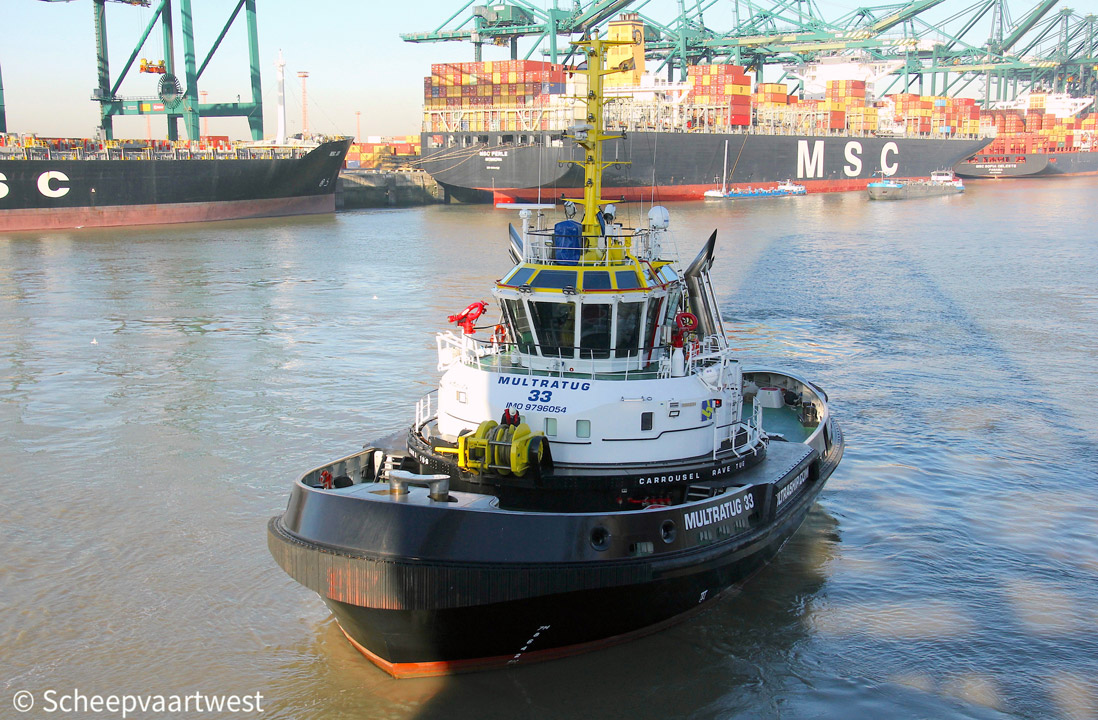

Multratug 33 01

Antwerpen 15 November 2018



Name

MULTRATUG 33

Type

Carousel rave tug - Fire-Fighting - Escort Tug - Waterspray tug

IMO-number

9796054

Call sign

PBDM

Flag

The Netherlands

Port of registry

Terneuzen

GT

494 t

DWT

168 t

NT

148 t

Length

31,90 m overall

Breadth

13,20 m overall

Draught

6,30 m

Air draft

Min: 11,00 m

Max: 18,00 m

Freeboard

1.708 mm

Depth

5,40 m

Speed

Max: 14,0 knots

Built

2018

Keel laid

2017

Launch date

14/09/2018

Date of completion

30/05/2018

Builder hull

Theodor Buschmann GmbH & Co KG
Hamburg
Germany
Yard number: 289

Builder completion

Maaskant Shipyards

Stellendam
The Netherlands

Yard number: 622

Hull material

Steel

Watertight compartments

31

Continuous decks

1

Main engine

2x ABC 12VDZC - 4 stroke single acting 12 cylinder combustion 256 x 310 mm engines 5.304 kW / 7.206 hp at 1.000 rpm

Start type: Compressed air

Built: 2017

Builder: Anglo Belgian Corporation NV; Gent - Belgium

Propulsion

2x Voith-Schneider/Cycloidal propeller controllable pitch (VSP) 32R5EC/250-2

Propeller

Diameter: 3.200 m 5 blades at 180 rpm

Generators

3x Volvo D5A-T - 4 cylinder 108 x 130 mm main diesel engines each 77 kW coupled with Stamford UCM274D1 generators each 87,5 kVA / 3x 400/250 V, 50 Hz

Built: 2017

Bollard pull

Max: 77 t

Deck lay-out

Deck space : 170 m²

Carousel towing system: CTS-250

Towing winch: 1 hydraulically driven double drum two speed pull

Type: CRT 200

Wire length: 150 m

Wire diameter: 60 mm

Capacity: Pull 20 t at 10,00 m/min

Brake capacity: 200 t

Towing hook aft: Straatman GSH-65 - 65 t

Capstan: DMT – AMC-E22 K2

Deck crane: Palfinger PK4501M 1.000 kg/ 4,50 m

Fire Fighting

Fifi type: 2x Main engine driven pump Total capacity: 2.700 m³/h Fifi

Monitors: 2x Jason 1.200 m³/h – water/foam

1x 300 m³/h – waterspray

Tank capacities

Fuel oil: 144 m³

Fresh water: 14,4 m³

Lubrication oil: 5,4 m³

Foam: 20,2 m³

Dirty oil/sludge: 5,8 m³

Bilgewater: 5,8 m³

Grey water: 8,6 m³

Sewage: 8,6 m³

Anchor equipment

2

Weight: 495 kg each

Accommodation

1-man cabin: 2

2-men cabin: 2

Mess room: 1

Galley: 1

Navigation and communications

2x Radars
1x Gyro Compass
1x Cassens & Plath Kotter type Magnetic Compass
1x Autopilot
1x Anemometer
1x ECDIS System
1x Echo Sounder
1x GPS
1x AIS
2x Clinometers
1x Speedlog
1x Watch Alarm
1x EPIRB
1x SART
3x VHF
3x Handheld VHF
1x SSB Radio
1x Navtex
2x Inmarsat-C

Manager

Multraship Towage & Salvage BV
Schuttershofweg 1
4538 AA Terneuzen
The Netherlands

Owner

Novatug BV
Terneuzen
The Netherlands

Latest data adjustment

26 November 2018
