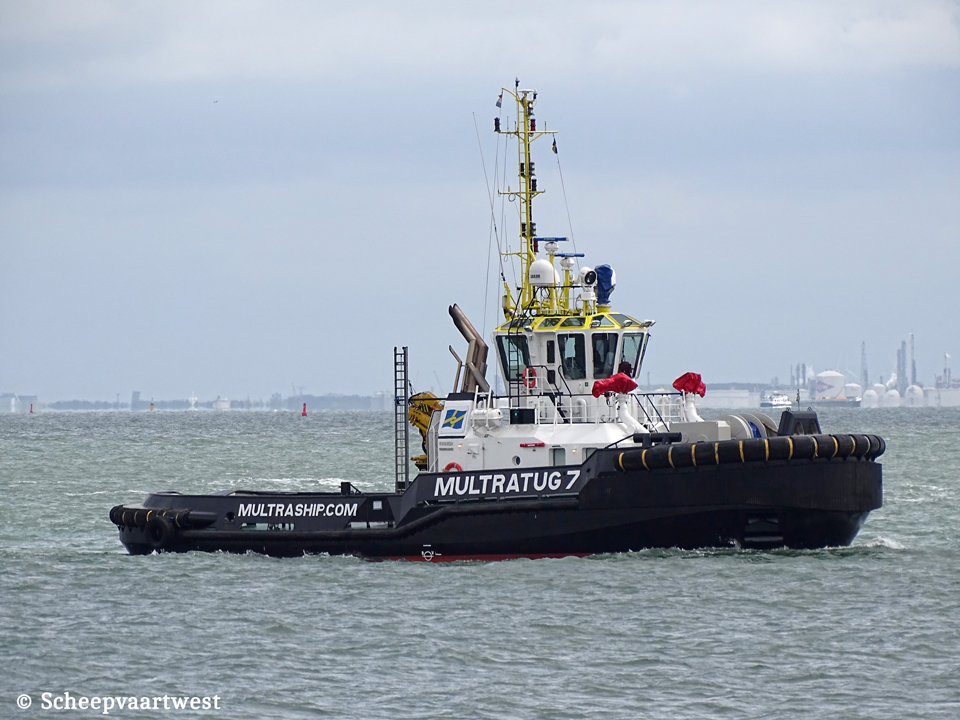

Multratug 7 IMO 9817808 08

Westerschelde 04 June 2020


Multratug 7 IMO 9817808 06   Multratug 7 IMO 9817808 03   Multratug 7 IMO 9817808 01   Multratug 7 IMO 9817808 02   Multratug 7 IMO 9817808 04   Multratug 7 IMO 9817808 03
Westerschelde 24/03/20   Vlissingen 24/03/20 Antwerpen 15/11/18 Antwerpen 15/11/18 Antwerpen 14/05/19   Antwerpen 14/05/19

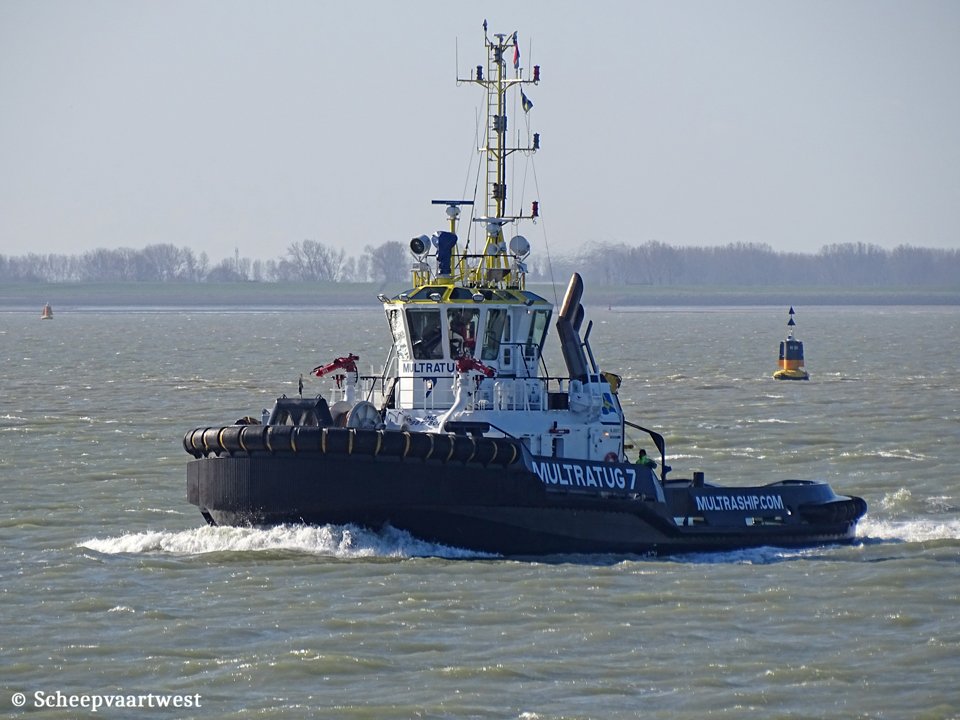

Multratug 7 IMO 9817808 07
Westerschelde 03/03/20


Name

MULTRATUG 7

Type

Escort tug - Fire fighting ship

Damen ASD Tug 2810

IMO-number

9817808

Call sign

PBVW

Flag

The Netherlands

Port of registry

Terneuzen

GT

293 t

NT

87 t

Length

28,57 m overall

24,78 m between perpendiculars

Breadth

10,43 m overall

Draught

3,70 m

Freeboard

358 mm

Depth

4,60 m

Speed

Max: 14,1 knots

Built

2017

Date of completion

23/11/2017

Builder

Damen Shipyards Galati

Romania

Yard number

513515

Hull material

Steel

Main engine

2x Caterpillar 3516C TA HD/C - 4 stroke 16 cylinder 170 x 190 mm combustion engines 3.730 kW / 5.068 bhp at 1.600 rpm

Propulsion

2x Azimuth Thrusters, Rolls Royce US 205

Generators

2x Diesel generatorsets each 102 kVA - 82 kW - 126 hp

Deck lay-out

  • Deck space: 40 m²

  • Anchor/towing winch: 1x Hydraulically driven double drum two speed pull

  • Type: ATW-2211-H19

  • Capacity: Pull 35 t at 9,20 m/min

  • Brake capacity: 150 t

  • Towing winch Aft: 1x Hydraulically driven two speed pull

  • Brake capacity: 150 t

  • Capacity : Pull 35 t at 9,20 m/min

  • Towing hook Aft: Mampaey 65 t

  • Capstan: Damen ce-50kn

  • Deck crane: 2.200 kg at 8,60 m

FiFi 1 system

Type: Diesel driven pump capacity 1x 2.400 m³/h

Fifi monitors: 2x 1.200 m³/h - water / foam

Tank capacities

Fuel oil: 72,3 m³

Fresh water: 14,9 m³

Lubrication oil: 4,5 m³

Foam: 22,7 m³

Dirty oil: 3,1 m³

Bilge water: 5,1 m³

Sludge: 3,1 m³

Hydraulic oil: 1,4 m³

Sewage: 6,7 m³

Accommodation

1-man cabin: 2

2-men cabin: 3

Messroom: 1

Galley: 1

Manager

Multraship Towage & Salvage B.V.

Schuttershofweg 1

4538 AA Terneuzen

The Netherlands

Owner

Multraship Towage & Salvage B.V.

Registered owner

Global Ship Leasing 46 B.V.

Latest data adjustment

17 September 2022
