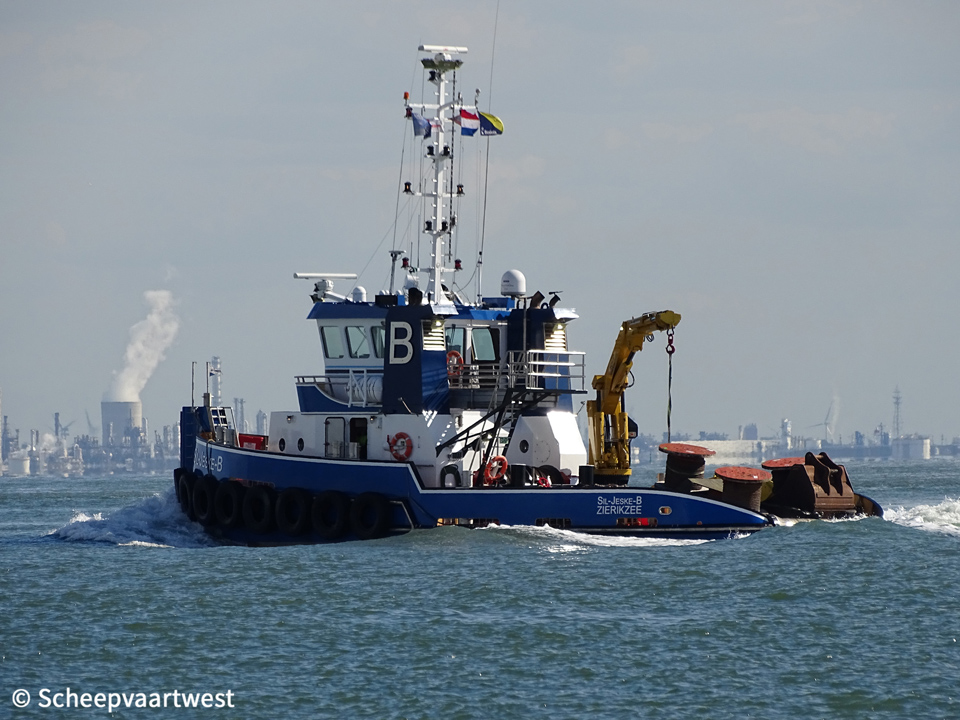

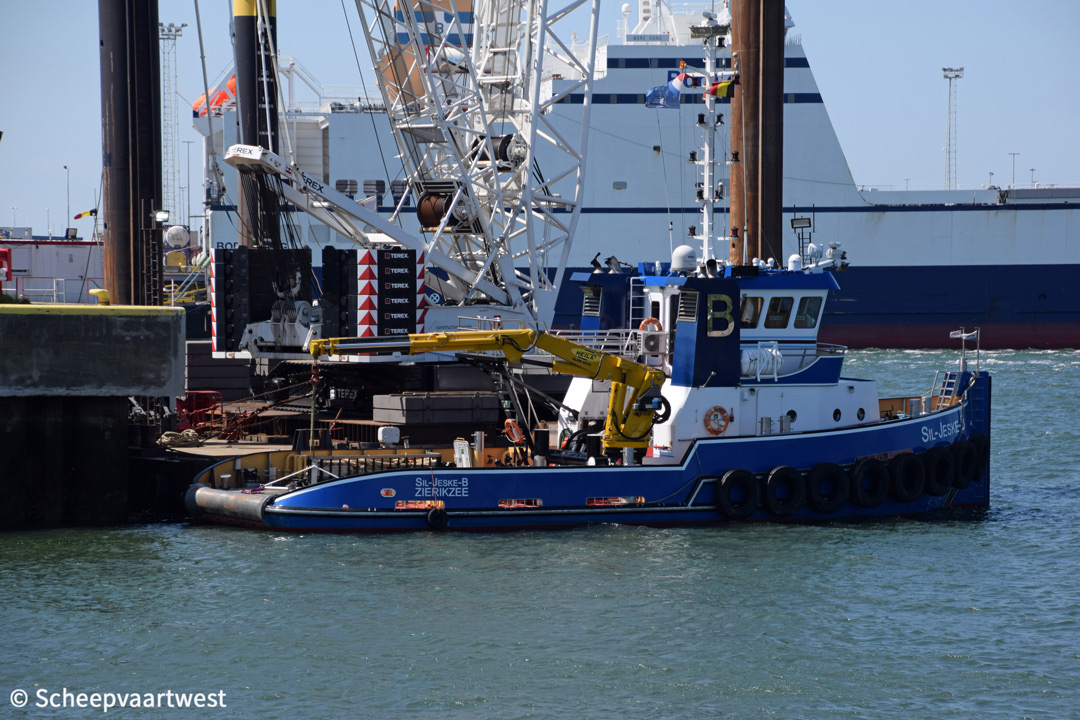

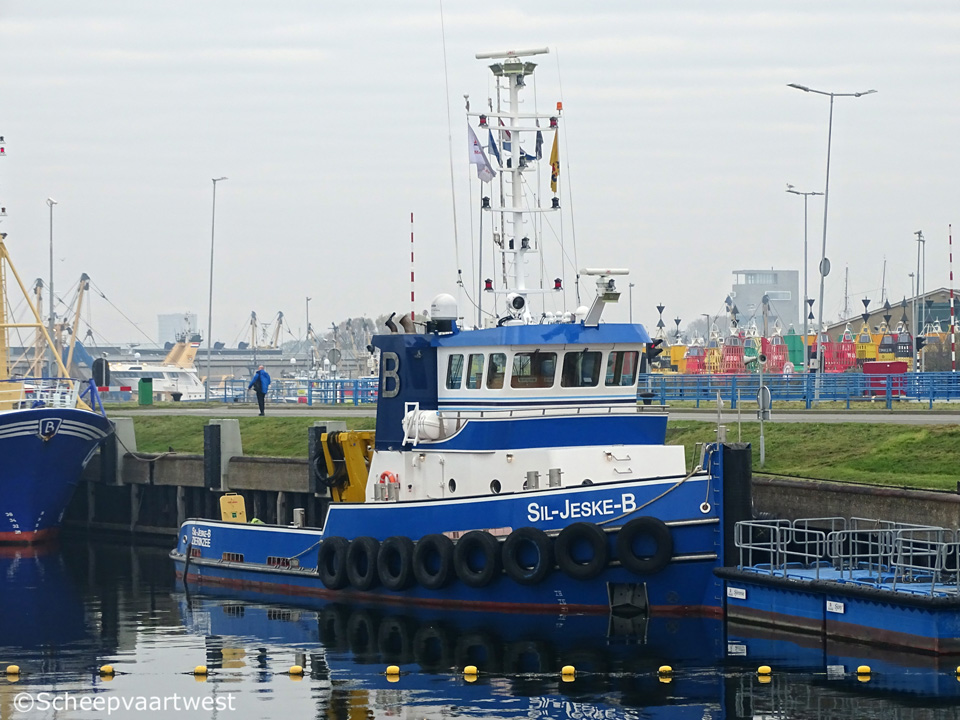

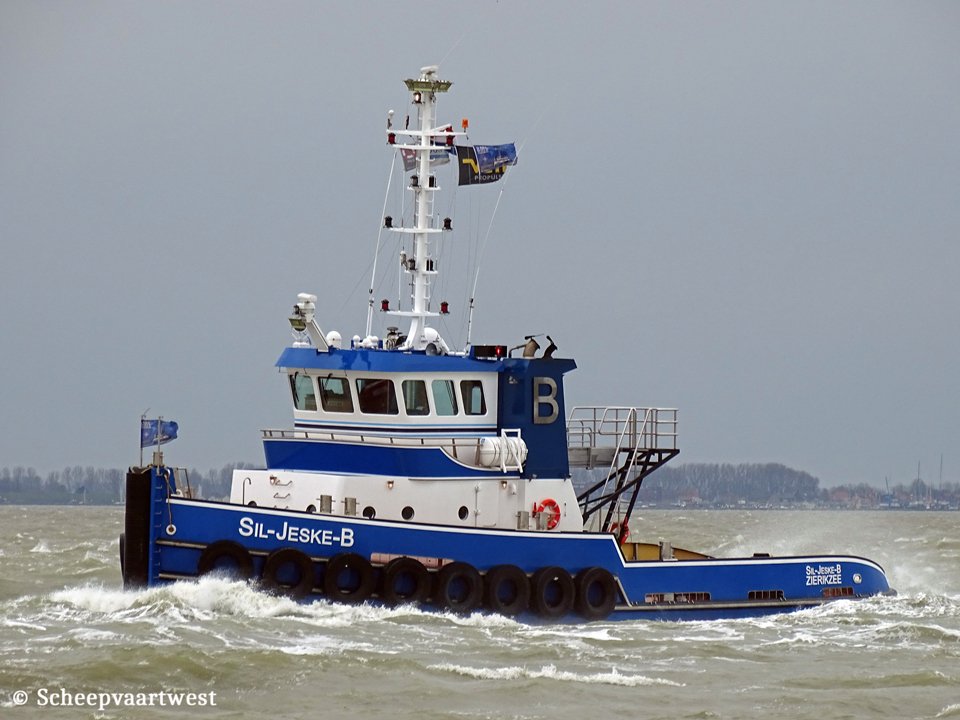

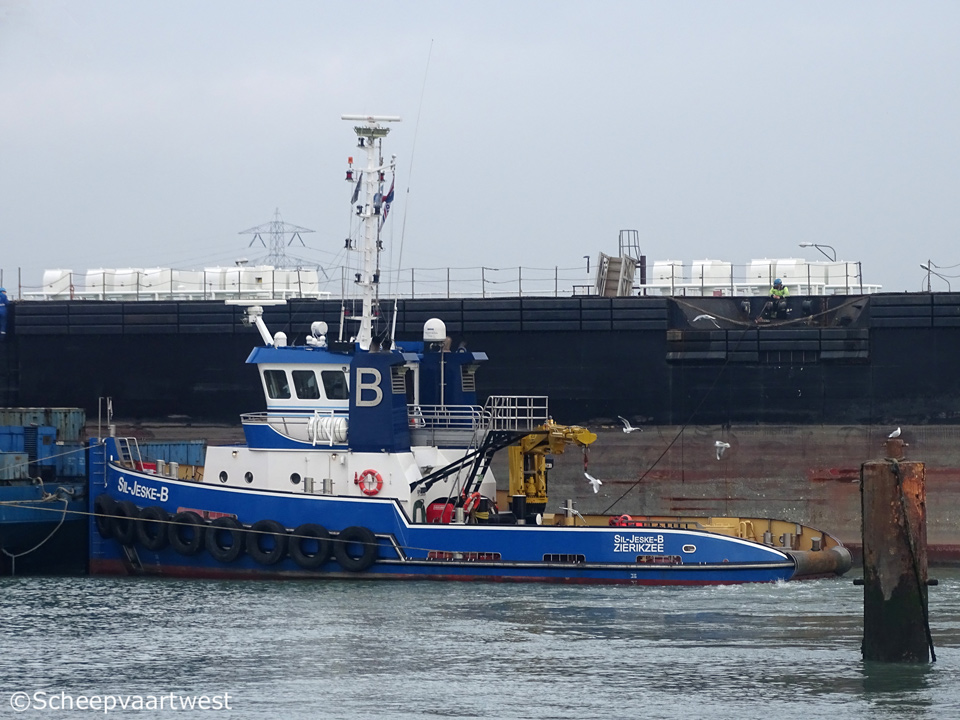

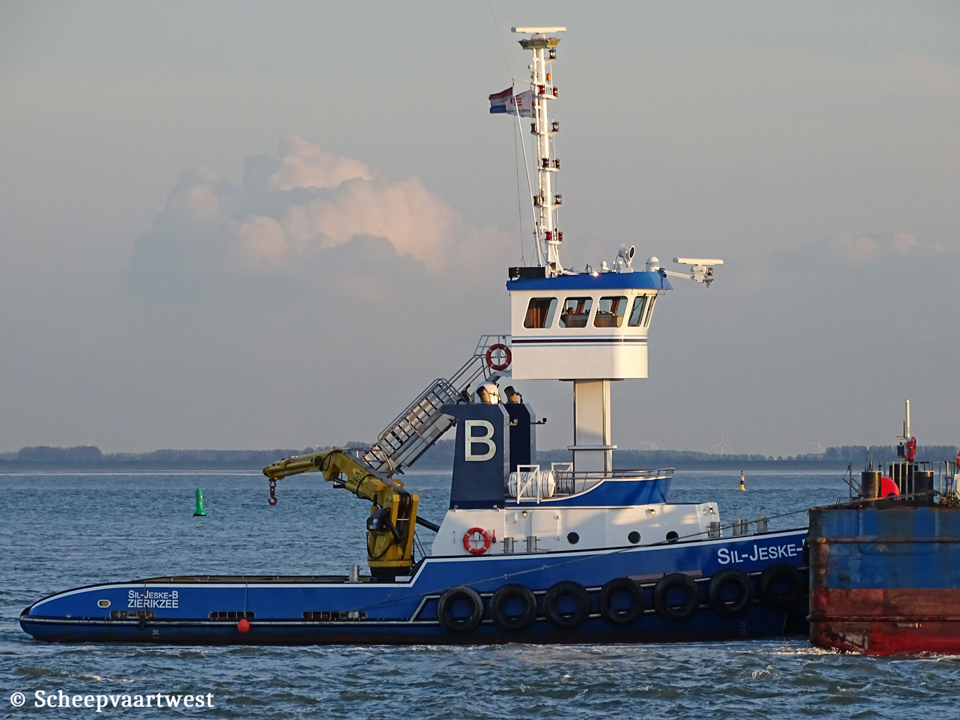

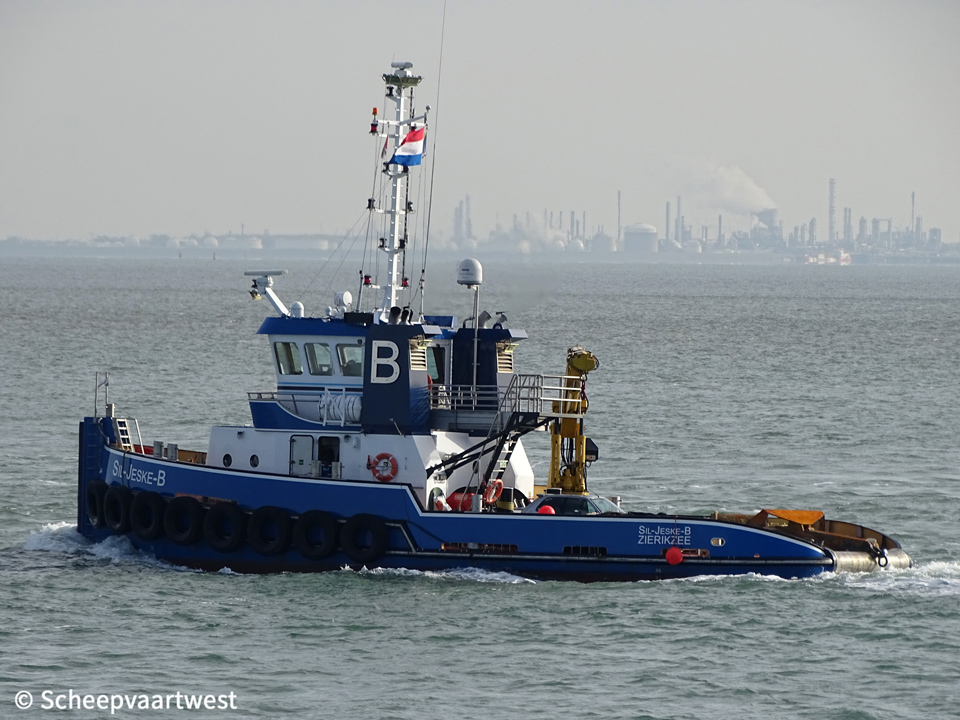

Sil-Jeske_B - IMO 9769245

Westerschelde 06 September 2018

Name

SIL-JESKE-B

Type

Multi-purpose anchor handling tug- Pusher- Workboat

IMO-number

9769245

ENI-number

02723931

Call sign

PDCJ

Flag

The Netherlands

Port of registry

Zierikzee

GT

130 t

DWT

78 t

Length

23,95 m overall

Breadth

8,00 m

Draught

Max: 3,20 m

Air draft

Min: 6,80 m

Height of view

Max: 14,50 m

Speed

12,7 knots

Built

2015

Launch date

14/09/2015

Date of completion

11/2015

Builder casco

Zrenjanis

Serbia

Yard number: 280

Builder completion

Scheepwerf Gebroeders Kooiman B.V.

Zwijndrecht

The Netherlands

Yard Numer: 207

Hull material

Steel

Main engine

2x Mitsubishi S6RMPTAW - 4 stroke single action 170 x 180 mm combustion engine each 735 kW / 1.000 hp at 1.650 rpm

Electro engines

2x Baumüller DST2-315ZA each 255 kW

Propulsion

2x Screw + Kort Nozzles - Van Voorden at 282 rpm

4 Blades

Diameter: 1,85 m

Gearbox

2x Masson MM-W3700 - Reduction: 5.85:1

Rudders

4x Fishtail rudders – 2x rudders behind each propeller

With separate steering possibility

Generators

2x Mitsubishi 6D24-TC - 6 cylinder 130 x 150 mm diesel engines each 185 kW at 1.500 rpm connected with generators each 240 kVA

1x Mitsubishi S4S - 4 cylinder 94 x 120 mm diesel engines 28 kW at 1.500 rpm connected with generators each 30 kVA

Built: 2015

Manufacturer: Mitsubishi Heavy Industries Ltd

Bow thruster

1x Veth VT-150 - 150 kW / 204 hp

Bollard pull

30,6 t

Towing equipment

• Hydraulic towing winch with a pulling force of approx 40 t, holding force 60 t

• 2x Drums one with 700 m of 38mm steel wire - one with 400 m 38 mm steel wire

• Stern roller, with on each side 2 hydraulic towing pins SWL 30 t

• Delta towing pins and shark pin in the centre

• Push bow with rubber fender of 80 cm in diameter

Deck equipment

1x Heila crane type HLRM 80 mt - 3 SL max 5.400 kg @ 12,04 m remote controlled

Free deckspace: 50 m² with 20” feet container fittings, reefer plugs available

Fuel transfer pump

50,0 m³/h

Freshwater transfer pump

25,0 m³/h

Tank capacities

Fuel (Diesel): 45,0 m³

Freshwater: 12,0 m³

Sewage: 2,5 m³ (sewage can also be taken from other vessels)

Dirty oil: 2,5 m³

Lub oil: 1,5 m³

Accommodation

For 4 persons fully air-conditioned

Navigation equipment

• 2x JRC radars one with ARPA function

• 1x Gyrocompass Alphatron type Minicourse

• 2x Automatic pilot, Alphatron Alphaseapilot MFA

• 1x Rate of turn indicator Alphatron Alphapilot

• 1x Magnetic compass Cassens & Plath

• 1x Echo Sounder JRC Color LCD Fish Finder FF60

• 1x Satellite Compass JRC type JLR-10T

• 1x DGPS JRC J-Nav 500 GPS Navigator

• 1x Intercom Alphatron type Alphacall with 6 call points

• 3x VHF/DSC 25 watt sets in wheelhouse type Sailor RT 5022, With 2 extra call points, 1 in the messroom and 1 in the captain’s cabin

• 1x MF/HF type Sailor CU5100 150 watt PEP

• 1x Satellite telephone

• 1x NAVTEX receiver JRC type NCR-333

• 1x GSM telephone cellular

• 2x ECDIS, Certified Electronic Chart System Alphatron type Alphachart (Tresco)

• 1x AIS Identification system

• 2x Submersible handheld VHF radio's

• 1x CCTV with 4 infrared camera’s

Owner

Bouwma International BV

Ziekrikzee

The Netherlands

Previous owner

2015 - 2018 BMS Sea Towage B.V.

Grevelingenstraat 10 A

4301 XX Zierikzee

The Netherlands

Latest data adjustment

08 October 2020
