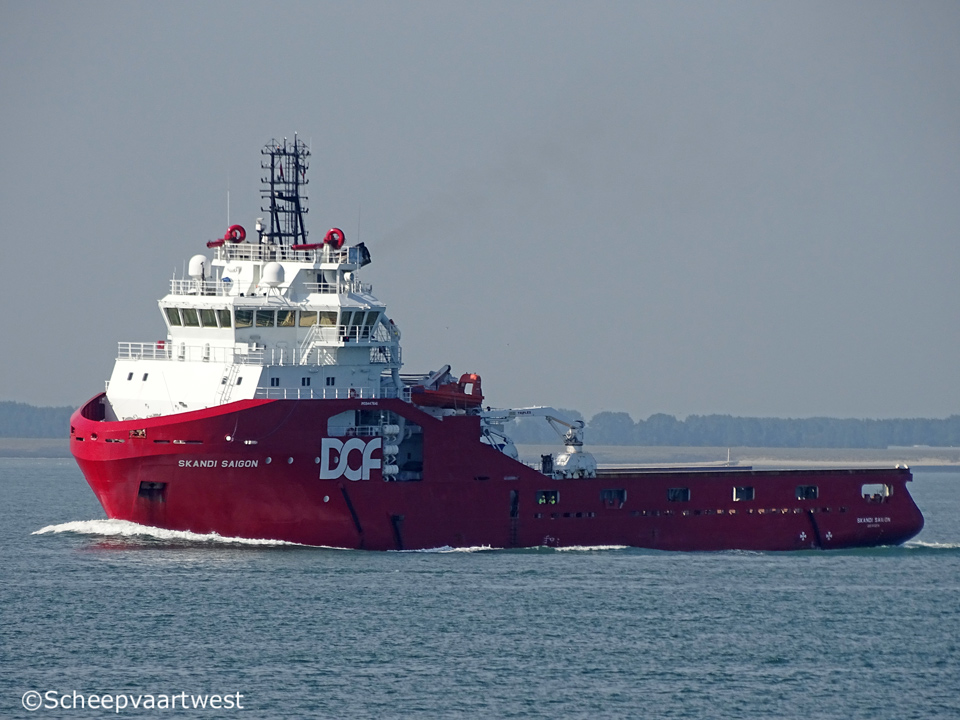

Skandi Saigon 01

Westerschelde 02 July 2017



Name

SKANDI SAIGON

Type

Anchor handling tug - Platform supply vessel - Fire fighting - Oil recovery

IMO-number

9447641

Call sign

LDFR3

Flag

Norway

Port of registry

Bergen

Previous flags

2011 - 2012 Bahamas, Nassau

GT

3.181 t

DWT

Summer: 3.195 t

NT

1.129 t

Length

75,00 m overall

67,99 m between perpendiculars

Breadth

17,40 m extreme

Draught

7,01 m

Depth

8,50 m

Speed

Trail: 15,0 knots

Built

2011

Keel laid

20/12/2009

Launch date

23/02/2011

Date of completion

10/08/2011

Builder

STX Vietnam Offshore Ltd. (Vard Vung Tau)

Vungtau

Vietham

Yard number

AYV004

Hull material

Steel

Hull type

Double bottom

Double side

Main engine

2x Bergen B32:40V12 combustion engines each 6.000 kW / 8.150 bhp at 750 rpm

Total: 16.300 bhp

Manufacturer: Bergen Engines AS

Propellers

2x Controllable pitch propellers

Shaft generator

2x 2.400 kW each

Generators

2x Nagva Scania DI16 main diesel generatorsets each 405 kW

Manufacturer: Scania CV AB, Industrial & Marine Engines

Emergency generator

1x John Deere 6068TFM50 diesel generatorset 115 kW

Bow thruster

2x 800 kW

Stern thruster

2x 800 kW

Bollard pull

196 t

Main deck area

550 m²

Deck strength

10,0 t/m²

Deck capacity

1.000 t

Dry bulk

264 m³

Deck equipment

AH drum: 350 t

Towing drum: 350 t

Chain locker: 2x 150 m³

Shark jaws: 2x 600 t

Towing pins: 4x 300 t

Winches

1x Brattvaag towing/anchor handling winch of waterfall type SL350W/BSL350W

Secondary: Brattvaag ALM 63130

Anchor handling:

1x Declutchable anchor handling drum and dividing flanges for special compartment

1.050 mm diameter x 2.850 diameter x 3.450 m length + 900 mm comp. Wire Capacity main drum: 3.400 m of 76 mm diameter full drum

Wire Capacity compartment: 800 m of 76 mm diameter

Towing:

1x Declutchable towing drum and dividing flanges for special compartment

1.050 mm diameter x 2.850 diameter x 3.450 m length + 900 mm comp. Wire Capacity main drum: 3.400 m of 76 mm diameter full drum

Wire Capacity compartment: 800 m of 76 mm diameter

Secondary Winch:

One fixed drum with band brake, centre dividing flange and dividing flange for special compartments in each side

Capacity 2x 800 m of 203 mm diameter rope

Dynamic positioning system

Kongsberg DP 2 System

Tank capacities

Fuel oil: 1.685 m³

Pot water: 641 m³

Brine: 430 m³

Drill water: 1.950 m³

Ballast: 2020 m³

Anchor equipment

Length: 495,00 m

Diameter: 44 mm

Lifting equipment

1x Straight boom - SWL 5,0 t

1x Cargo rail crane - SWL 3,0 t

Crew size

27

Manager

DOF Management AS
Thormøhlensgate 53C

5006 Bergen

Norway

Owner

Aker DOF Deepwater AS
Alfabygget

Storebo, 5392

Norway

Latest data adjustment

26 April 2018
