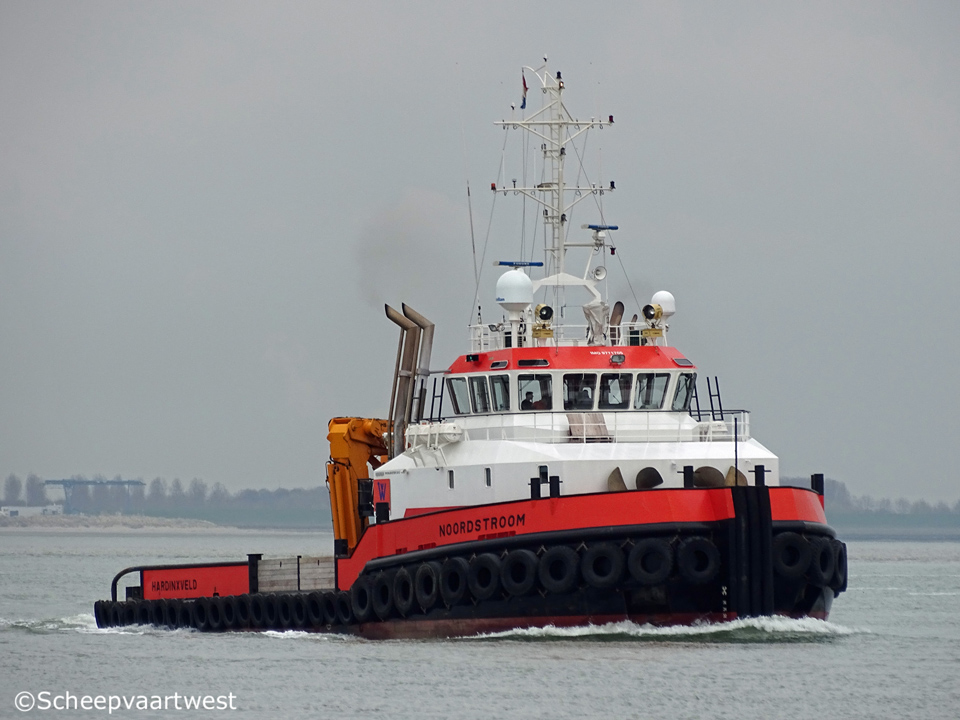

Noordstroom 01

Westerschelde 01 April 2017

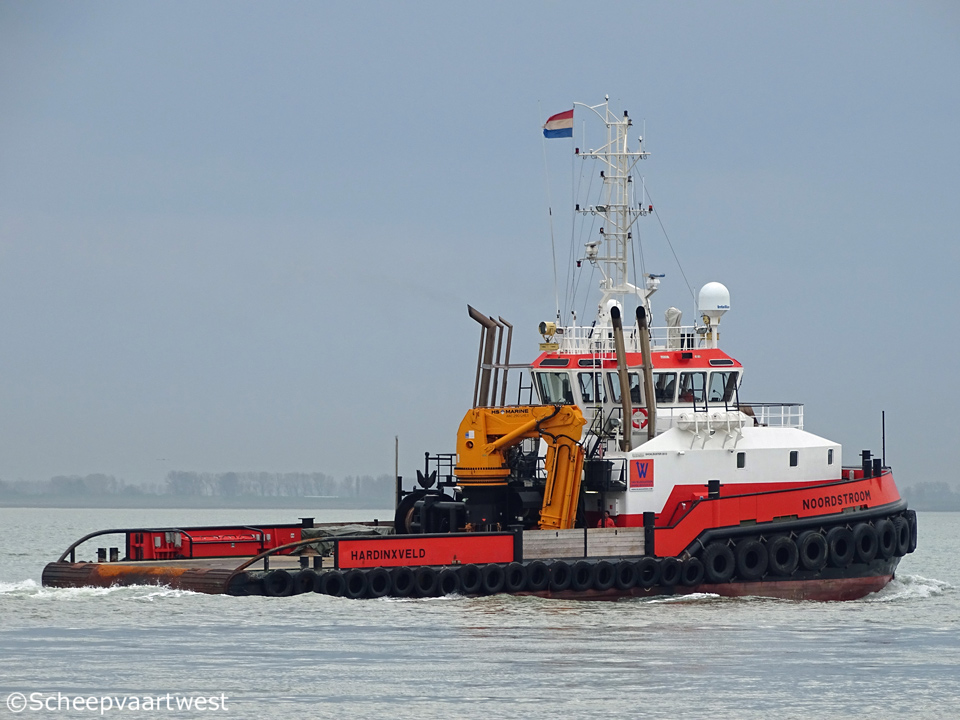

Noordstroom 02
01/04/17



Name

NOORDSTROOM

Type

Anchor handling tug supply vessel

Type Damen Shoalbuster 3512

Basic functions

Towing, Mooring, Pushing, Anchor handling, Supplying, Surveying, Ploughing, Crew transfer

IMO-number

9771705

Call sign

PIWC

Flag

The Netherlands

Port of registry

Hardinxveld

GT

476 t

NT

142 t

Displacement

597 t

Length

34,75 m overall

33,09 m between perpendiculars

Breadth

12,00 m

Draught

Min: 2,90 m

Max: 3,40 m

Freeboard

958 mm

Depth

4,30 m

Speed

11,4 knots

Built

2016

Date of completion

26/04/2016

Builder

Damen Shipyards
Hardinxveld
The Netherlands

Yard number

571732

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

3x Caterpillar type C32-TTA SCAC - 4 stroke 12 cylinder 145 x 162 mm diesel engines each 970 kW / 1.319 hp @ 1.800 rpm - Total: 2.910 kW / 3.954 hp

Gearbox

3x Reintjes type WAF 675L - Reduction: 7.07:1

Propulsion

3x Fixed pitch propeller in Van der Giessen Optima Nozzle at 254 rpm - diameter: 2.250 mm

Shaft generator

1x 625 kVA - 500 kW

E-power generator

Combined with centre C32 main engine 600 ekW @ 1.800 rpm - 440 Volt

Hydro set

3x Electric drive with E-motor:

2x 110 kW

1x 52 kW

Generators

2x Caterpillar type C7.1 diesel generatorsets each 187,5 kVA - 150 kW - 223 hp - 230/400 Volt 50 Hz

Bow thruster

Electrical driven Fixed pitch propeller 243 kW / 320 hp - Diameter: 960 mm

Bollard pull

56,0 t

Deck equipment

Towing winch Kraaijeveld, WF - 1.000 m., diameter 48 mm steel wire, 59,1 / 115 t + incl. AH winch, 600 m., diameter 48 mm steel wire, 101,7 / 150 t

Tugger winch, power 12 t

Hydraulic towing pins + Chain stopper, SWL 100 t

Stern roller, L. 5,00 m., diameter 1.180 mm, SWL 165 t

Towing hook & Gob eye, SWL 55 t

Container locks (7x 20 ft. / 3x 10 ft.) - Push bow

Free deck space

145 m³

Transfer pumps

Fuel / Fresh water type SIHI - 50m³/hr. @ 4,8 bar

Special equipment

HV/AC installation - Sewage treatment plant - (fresh) Watermaker - Fuel oil separator

Moonpool (Netto: 700 x 600 mm)

Optional

A-frame (with plough) / 4p-Mooring system

Waterinjection Dredging system / ROV - Diving Ops. platform

Tank capacities

Fuel oil: 255 m³

Lub oil: 3,7 m³

Hydraulic oil: 2,0 m³

Gear oil: 3,30 m³

Dirty oil: 4,5 m³

Sludge: 2,0 m³

Fresh water: 43,0 m³

Sewage: 5,80 m³

Bilge water: 5,0 m³

Lifting equipment

1x Hydraulic crane HS Marine type AKC290-LHE3:,

SWL 11,3 t at 16,50 m

SWL 24,4 t at 7,89 m

Accommodation

11 persons

Nautical equipment

2x Radar (sea/river)

Magnetic compass

Gyro compass

Auto pilot

GPS / Satellite navigation system

ECDIS

AIS

2x Echosounder

Speedlog

Windindicator

2x VHF + DSC

1x VHF - SSB Radio + DSC

Navtex

VSAT system

2x Inmarsat-C

EPIRB

SART

2x HH VHF

Satcom + GSM

Owner

Van Wijngaarden Marine Services
Buitenweistraat 15
3372 BC Hardinxveld-Giessendam
The Netherlands

Latest data adjustment

26 March 2018
