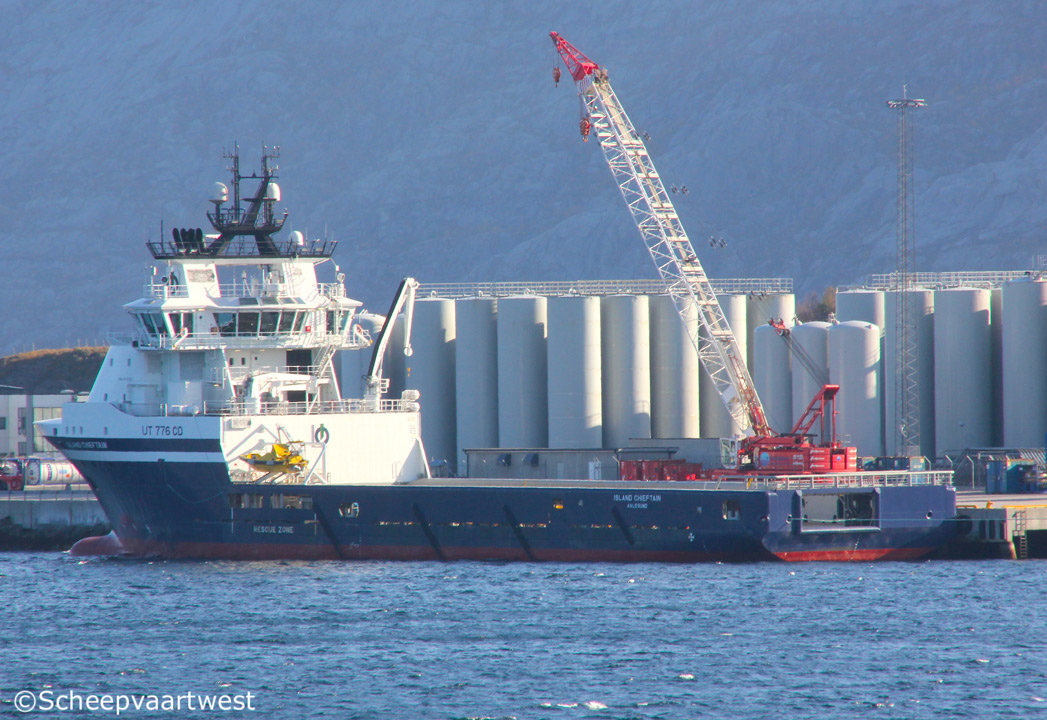

Island Chieftain 01

Sandnessjøn, Norway 29 September 2017



Name

ISLAND CHIEFTAIN

Type

Supply vessel - Support - Fire fihting - UT 776 CD

Typical work

General deck cargo
Pipe cargo on deck
Liquid cargo
Cement / Barite
NOFO / OILRec
Standby / Rescue according to NMD

IMO-number

9419761

Call sign

LALR

Flag

Norway

Port of registry

Aalesund

GT

4.584 t

DWT

Summer: 4.100 t

Length

93,00 m overall

80,80 m between perpendiculars

Breadth

20,00 m extreme

Draught

6,61 t

Depth

8,20 m

Speed

Max.: 16,2 knots

Built

2009

Keel laid

04.09.2008

Launch date

01.03.2009

Date of completion

08.09.2009

Builder casco

STX OSV Braila
Braila
Romania

Builder completion

STX Norway Offshore AS
Brevik
Norway

Yard number

65

Hull material

Steel

Main engine

Diesel electric:

4x Bergen C25:33L-6 diesel generatorsets each 1.740 kW at 900 rpm

Propulsion thruster

2x Ulstein Aquamaster Azipull AZP 120 CP each 2.500 kW

Builder: Rolls-Royce Marine AS - Propulsion Ulsteinvik

Boilers

Auxiliary boiler, oil/gas fired EO154
Builder: Clayton

Shaft generator

4x AVK generators each 1.355 KW

Emergency generator

1x Scania DI12 diesel generatorset 335 kW

Bow thruster

2x Kamewa Ulstein TT 2200 DP CP each 883 kW

1x Ulstein Aquamaster TCNS 5073 CP swing-up azimuth thruster 883 kW

Deck area

1.008 m²

Dry bulk

310 m³

Tank capacities

Fuel oil: 1.440 m³

Fresh water: 930 m³

Drill water: 620 m³

Liquid mud: 1.045 m³

Brine: 245 m³

Ballast: 2.496 m³

Methanol: 585 m³

Anchor equipment

Length: 522,50 m

Diameter: 50 mm

Accommodation

25 persons

Manager

Island Offshore Management AS
Stålhaugen 12
6065 Ulsteinvik
Norway

Registered owner

Island Offshore VIII KS

Latest data adjustment

07 January 2018
