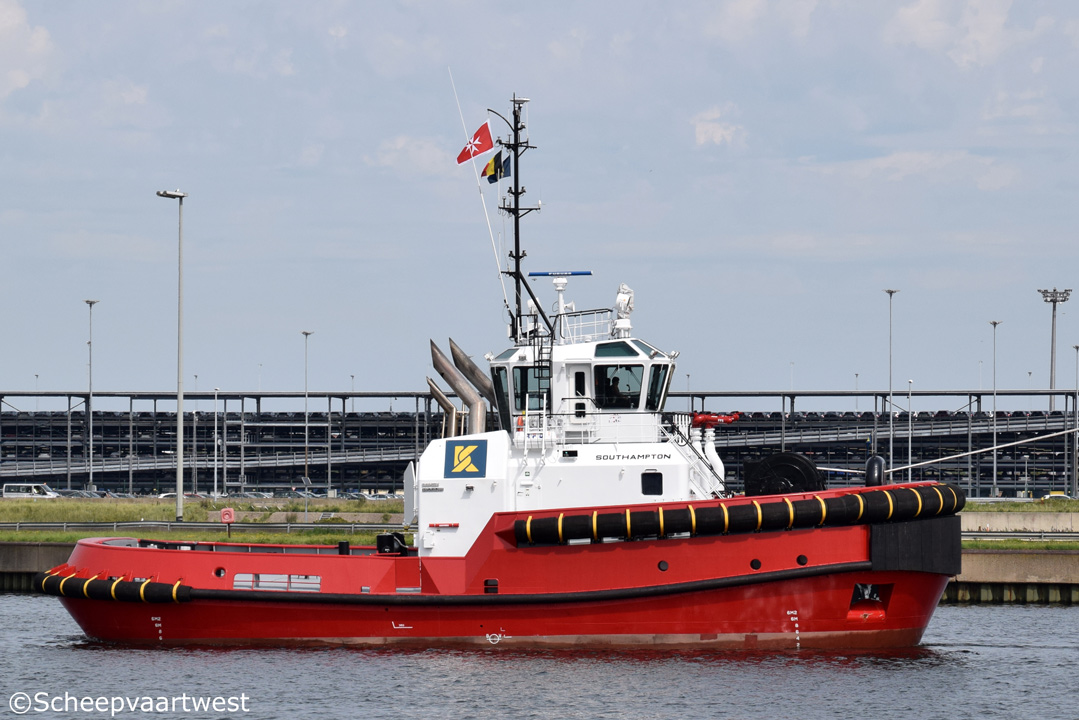

Southampton 01

Zeebrugge 23 August 2017



Name

SOUTHAMPTON

Type

Tug boat - Escort tug - Fire fighting ship

Damen ASD Tug 2913

Basic functions

Push-pull, towing, mooring and firefighting operations

IMO-number

9816672

Call sign

9HA4635

Flag

Malta

Port of registry

Valletta

GT

431 t

NT

129 t

Length

29,10 m overall

25,95 m between perpendiculars

Breadth

13,23 m overall

Draught

5,48 m aft

Freeboard

950 mm

Depth

5,35 m at sides

Speed

13,7 knots

Built

2017

Launch date

31.03.2017

Date of completion

21.07.2017

Builder

Damen Shipyards Galati
Romania

Yard number

513115

Hull material

Steel

Main engine

2x Caterpillar type 3516C HD+TA/D - 16 cylinder diesel engines total 5.050 kW / 6.772 bhp at 1.800 rpm

Build: 2017

Propellers

2x Rolls Royce US 255 P30 fixed propeller - diameter 2.800 mm

Generators

2x Caterpillar C7.1 TA diesel generatorsets each 125 kVA - 230/400 V / 50 Hz

Bollard pull

81,7 t ahead

77,4 t astern

Auxiliary equipment

General service pumps: 2x Sterling AKHA 6101 - 34 m³/h each

Fuel pumps: Sterling AKHA 5101 and AOHA 3101

Fuel oil purifier: Westfalia OTC 3-02-137 - 1.740 l/h

Cooling system: Box cooling + anti-growth system

Fresh water pressure set: Sterling HBK 111 / AOHA 3101

Hydraulic system: Double main engine driven pumps

Sewage treatment plant: Tecnicomar Ecomar 20

Deck Lay-out

Anchor: 2x 427,5 kg Pool (High Holding Power)

Anchor/towing winch: Hydraulically driven two speed winch with double drum and warping head, pull 35 t at 12,00 m/min, slack rope speed 38,00 m/min, 200 t

brake

Fendering: D-fender at sides and stern, cylinder fender at transom corners, cylinder bow fender and W-block fender with waterspray

Fire fighting

Fifi set: Diesel driven pump 2.400 m³/h

Fifi monitors: 2x 1.200 m³/h, water/foam

Tank capacities

Fuel oil: 96,4 m³

Fresh water: 17,3 m³

Sewage: 5,3 m³

Lubrication oil: 4,5 m³

Dirty oil: 2,8 m³

Sludge: 2,4 m³

Bilge water: 5,2 m³

Hydraulic oil: 0,36 m³

Accommodation

For 10 persons, insulated and finished with durable modern linings, acoustical ceiling in the wheelhouse, floating floors and air-conditioned. With 6 cabins, galley, mess/dayroom, switchboard room, dry store, changing room, store, engineer’s workshop and sanitary facilities.

Nautical and communication equipment

Searchlights: 2x Xenon 450 W (FIFI 1)

Radar system: Furuno FAR-2117 with 19” LCD screen

Speedlog: Furuno DS-80

Compass: Cassens & Plath, type Kotter

Autopilot: Simrad AP-70

GPS: Furuno GP-170

Echosounder: Furuno FE-800

VHF: 2x Sailor Compact 6222, 25 W

VHF hand-held: 2x Jotron Tron TR-20

LRIT: Furuno Felcom 19

SSB: Furuno FS-1575

Navtex: Furuno NX-700A

AIS: Furuno FA-150

EPIRB: Jotron Tron-60S

Sart: Jotron Tronsart20

Manager

Kotug-Smit Holding B.V.
Rotterdam
The Netherlands

Owner

Kotug Smit Towage

Registered owner

KS Southampton Limited

Latest data adjustment

29 September 2017
