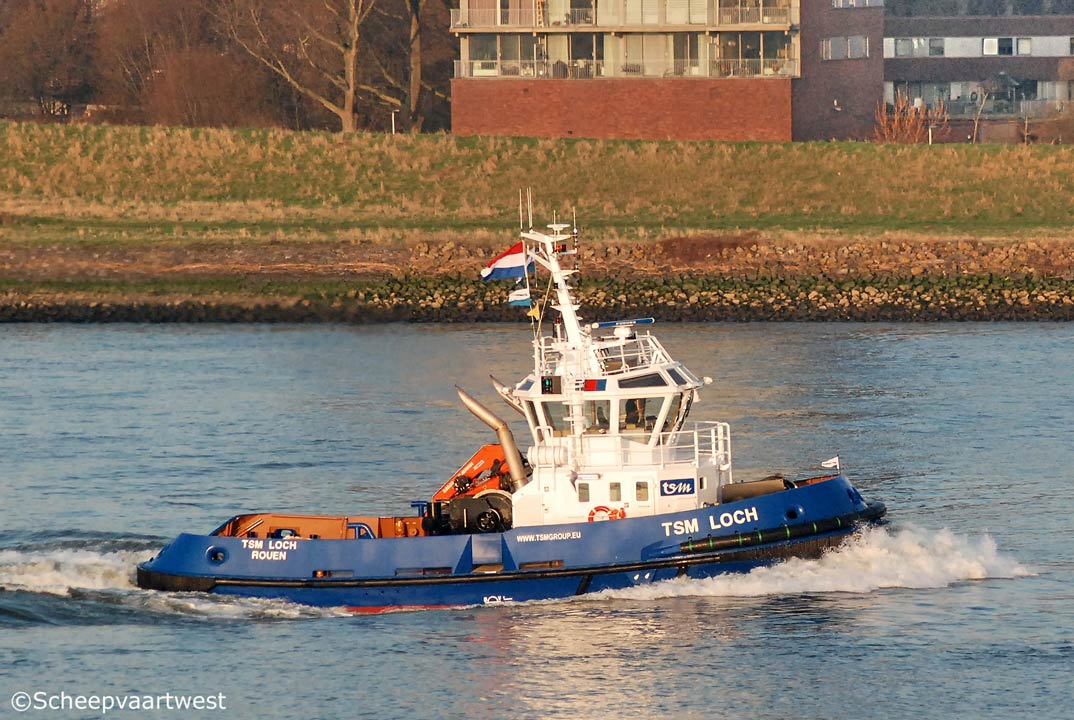

TSM Loch 01
Spijkenisse 20 December 2016



Name

TSM LOCH

Type

ASD Tug - Coastal Area

Call sign

FAE3297

Flag

France

Port of registry

Rouen

GT

134 t

NT

40 t

Number of 20ft containers

20,35 m overall

18,90 m between perpendiculars

Number of 40ft containers

8,20 m

Draught

4,20 m

Freeboard

835 mm

Depth

3,60

Speed

11,3 knots

Built

2016

Launch date

28.07.2016

Date of completion

30.12.2016

Builder

Machinefabriek Padmos Stellendam B.V.
Stellendam
The Netherlands

Yard number

201

Hull material

Steel

Watertight bulkheads

3

Continuous decks

1

Main engine

2x Mitsubishi S12R-MPTAW-2 - 4 stroke single acting 12 cylinder 170 x 180 mm diesel engines each 1.040 kW total 2.080 kW / 2.826 hp at 1.650 rpm

Starter type: Electrical starter

Built: 2016

Manufacturer: MEE - MHI Equipment Europe B.V. (Mitsubishi), Almere - The Netherlands

Propellers

2x Rolls Royce US-155FP thrusters

Diameter: 1.800 mm - 4 blades

Electric installations

400/230 V - 52 Hz

Generators

2x Mitsubishi 6D16-TL - 6 cylinder 118 x 155 mm diesel engines each 115 kW at 1.500 rpm coupled with generators each 90 kVA

Built: 2016

Manufacturer: Mitsubishi Heavy Industries Ltd.

Bollard pull

32,5 t

Towing equipment

Front and aft:

1x Hydraulic single drum winch

Brake holding power: 35 t

Tank capacities

Potable water: 6 m³

Fuel oil: 38,52 m³

Lifting equipment

1x 1 Guerra M380.24A4 hydraulic deck crane - SWL 2.625 kg at 11,70 m

Accommodation

4x Crew cabins

2x Toilets

2x Showers

Messroom

Kitchen

Navigation & Communications

1x Radar
1x Magnetic Compass
2x VHF
1x AIS

Owner

Thomas Services Maritimes
8 Boulevard Ferdinand de Lesseps
76000 Rouen
France

Registered owner

Compagnie Financiere Du Trez

Latest data adjustment

12 March 2017
