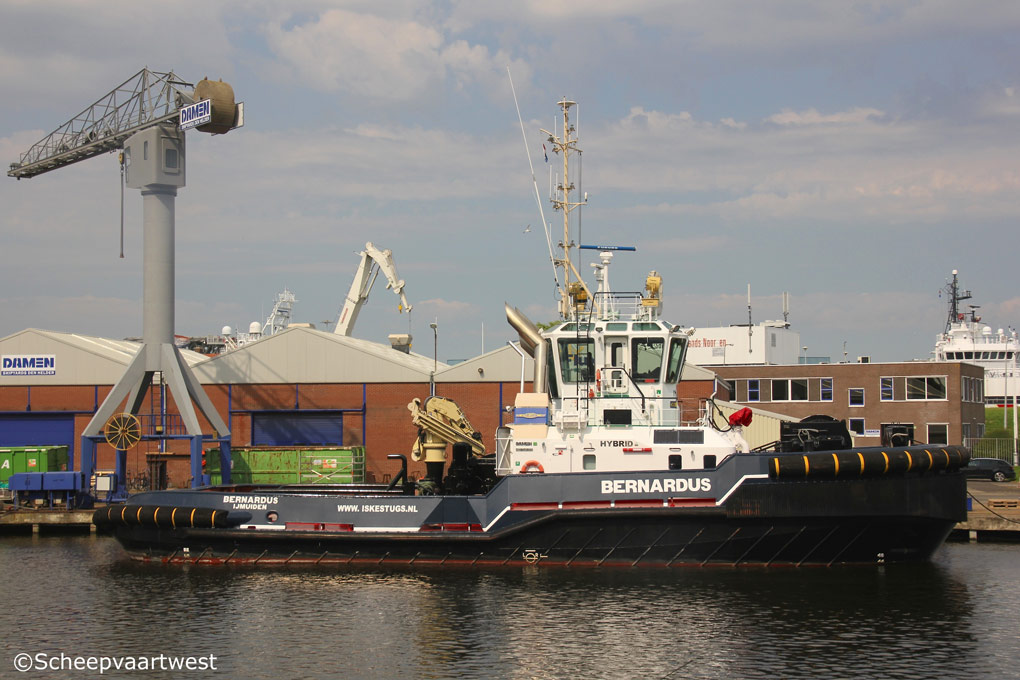

Bernardus 02

Den Helder, The Netherlands 20 July 2016

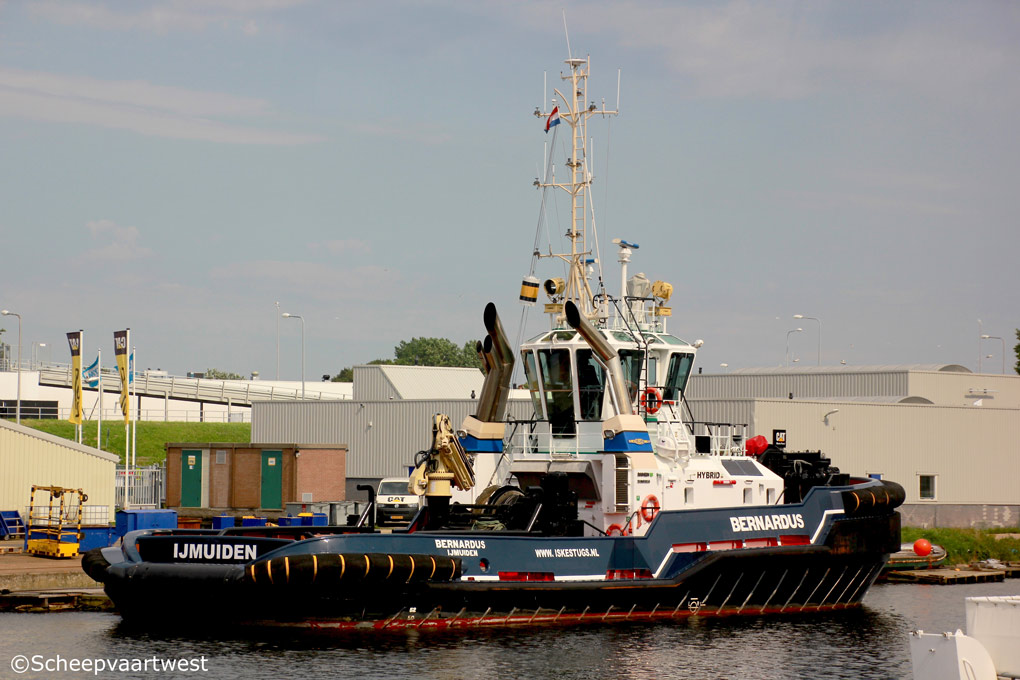

Bernardus 01
Den Helder 20/07/16


Name

BERNARDUS

Type

Damen 2810 hybrid tug

Deep Sea - FiFi 1 - Escort - Port & Terminal ”Hybrid” Tug

IMO-number

9668025

Call sign

PLUW

Flag

The Netherlands

Port of registry

IJmuiden

GT

294 t

Length

28,67 m overall

Breadth

9,80 m moulded

10,43 m extreme

Draught

4,80 m

Air draft

18,00 m

Depth

4,60 m

Speed

13,4 knots diesel direct

8,5 knots hybrid

Built

2014

Launch date

09.10.2013

Builder casco

Damen Galati Shipyard
Romania

Builder completion

Damen Shipyard Gorinchem
Gorinchem
The Netherlands

Yard number

512319

Hull material

Steel

Engines / Propulsion

Type of propulsion: ASD

Thrusters: 2x Rolls Royce US 205

Main engines: 1x MTU, type 16V4000M63 - 16 cylinder

Battery packs: 2x 120 kWh

Main electric engines: 2x ABB M3LP450

Total electric power: 460 bkW (616 bhp) at 900 rpm

General Generator sets: 1x Caterpillar C4,4 - 107 kVA, 230/400 V, 50 Hz

Propulsion gen. set: MTU, type 12V000M41B - 800 kVA 440V, 60 Hz

Exhaust gas treatment: DOC + DPF + SCR system, IMO TIER III compliant

Bollard pull

60,2 t

Towing equipment

Winches: Damen DMT

Anchors/towing winch type DMT 221-E19k2: Electrically driven two speed winch with double drum and warping head, pull 35 tons at 9,10 m/min, slack rope speed up to 28.00 m/min, 150 ton brake

Towing winch aft type DMT TW 250 kN: Electrically driven two speed winch with double drum and spooling device, pull 35 ton at 9,00 m/min and 33 ton at 9,50 m/min, slack rope speed up to 27,00 m/min 150 ton brake

Wires:

Winch fore:

2× 150 m, 80 mm harbour wire

Winch aft:

600 m, 48 mm towing wire

150 m, 80 mm harbour wire

Deck equipment

Deck crane: HS Marine

Deck space: 90 m²

Capstan: 5 ton

Fire fighting

2x Monitor - 1.200 m³

Tank capacities

Gas oil: 72,3 m³

Fresh water: 14,9 m³

Ballast: 15,7 m³

Accommodation

7 Persons

Bridge equipment

Searchlight: 2x Pesh 1000 W

Radar System: 2x Furuno FAR-2117 with 19 inch screen

Compass: Magnetic Kotter

Satellite compass: Furuno SC-50

Autopilot: Simrad AP-50

GPS: Furuno GP-150

Echo sounder: Furuno FE-700

VHF radio telephone: 2x Sailor 6222 (one with DSC)

VHF handheld: 2x Jotron TRON TR-20

Navtex: Furuno NX-700

AIS: Furuno FA-150

EPIRB: Jotron Tron 40S

SART: Jotron Tron Sart

SSB: Furuno FS-1575

Owner

Iskes Towage & Salvage
Monnickendamkade 19 D/E
1976 EC IJmuiden
The Netherlands

Latest data adjustment

30 August 2016
