Ponta Delgada, Azores 08 June 2016 |
 |
| Ponta Delgada 08/06/16 |
|
Name |

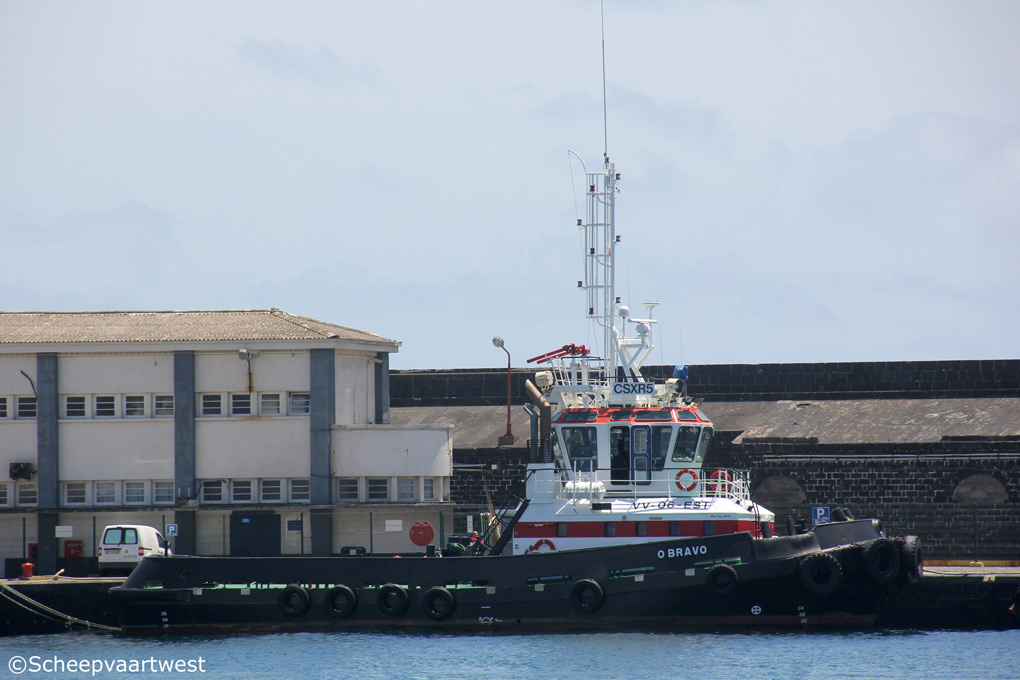

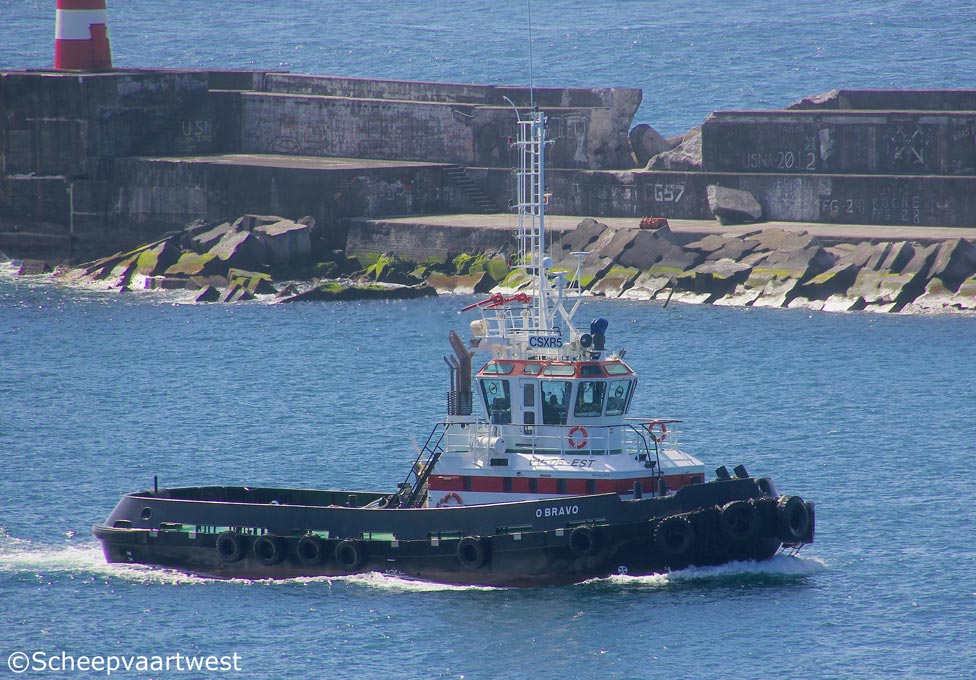

O BRAVO |
|
Type |
Tug - Type Damen Stan Tug®2608 |
|
IMO-number |
9275828 |
|
Call sign |
CSXR5 |
|
Flag |
Azores - Portugal |
|
Port of registry |
Praia Da Vitoria |
|
GT |
183 t |
|
DWT |
Summer: 176 t |
|
NT |
55 t |
|
Length |
26,09 m overall 23,98 m between perpendiculars |
|
Breadth |
7,94 m extreme |
|
Draught |
3,12 m |
|
Depth |
4,05 m |
|
Speed |
Max.: 12,3 knots |
|
Built |
2004 |
|
Keel laid |
11.06.2002 |
|
Launch date |
22.10.2002 |
|
Date of completion |
20.02.2004 |
|
Builder casco |
Stal Rem S.A. |
|
Builder completion |
Scheepswerf Damen Gorinchem B.V. |
|
Yard number |
509806 |
|
Hull material |
Steel |
|
Main engine |
2x Caterpillar type 3508B TA/C - 8 cylinder total 1.640 kW / 2.200 bhp at 1.600 rpm |
|
Gearbox |
2x Reintjes WAF 562L - Reduction: 5,05 |
|
Propellers |
2x Fixed pitch Promarin propeller - Diameter 1.900 mm with Van de Giessen nozzles |
|
Emergency generator |
2x Caterpillar 3304B main diesel generatorsets |
|
Bollard pull |
32,9 t |
|
Tank capacities |
Fuel oil: 80,10 m³ Fresh water: 12,20 m³ Lib oil: 1,90 m³ Dirty oil: 2,00 m³ Water ballast: 19,40 m³ |
|
Anchor equipment |
Length: 247,50 m Diameter: 17,5 mm |
|
Manager |
Portos dos Acores, S.A. |
|
Owner |
Administração dos Portos da Terceira e Graciosa S.A. |
|
Latest data adjustment |
02 July 2016 |
