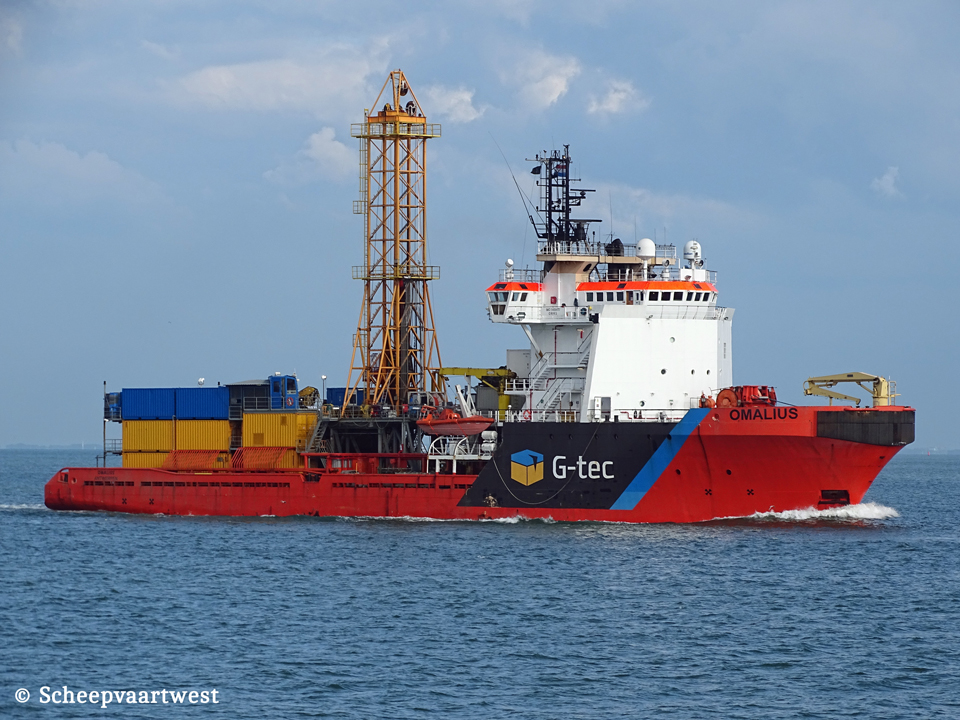

Westerschelde 24 July 2020 |
 |
 |
 |
 |
 |
 |
|||||

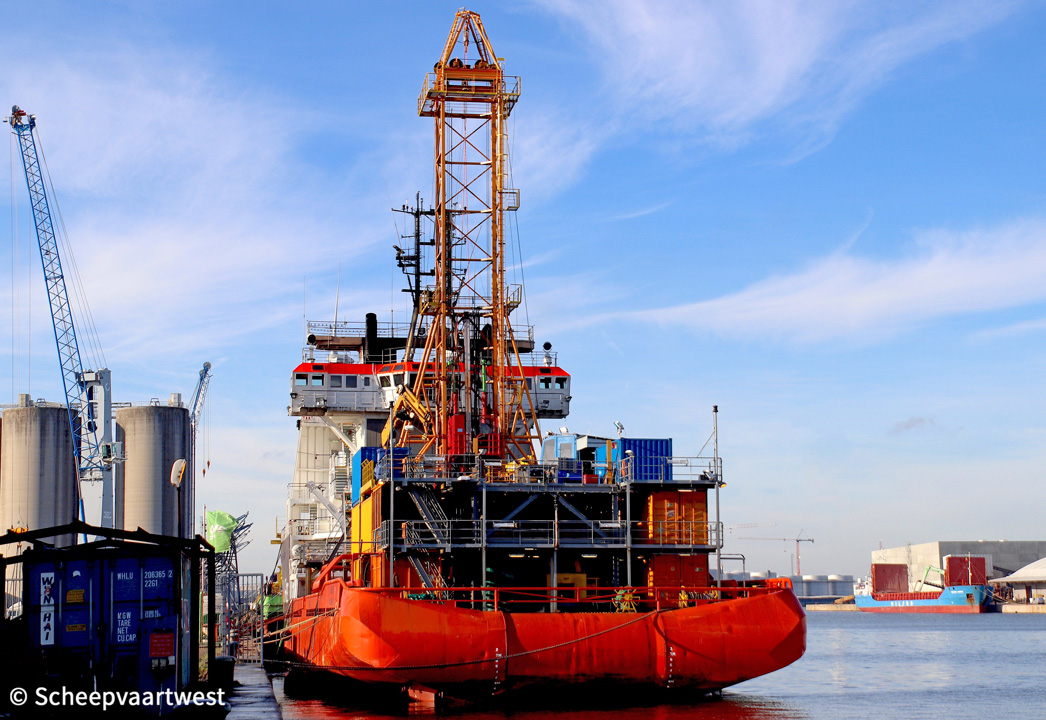

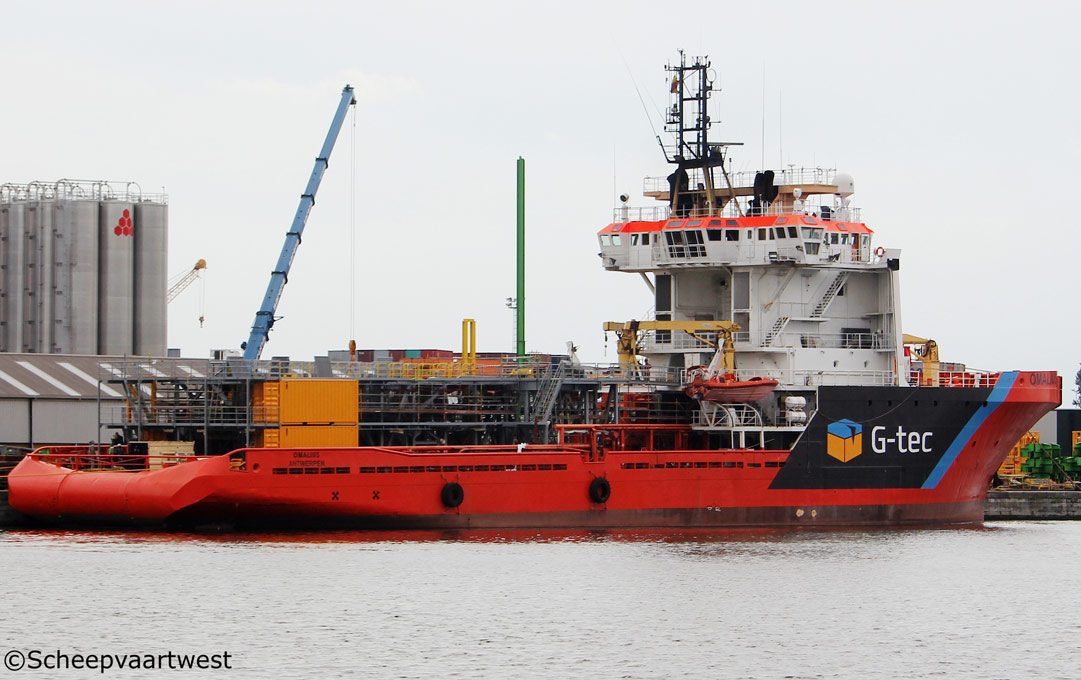

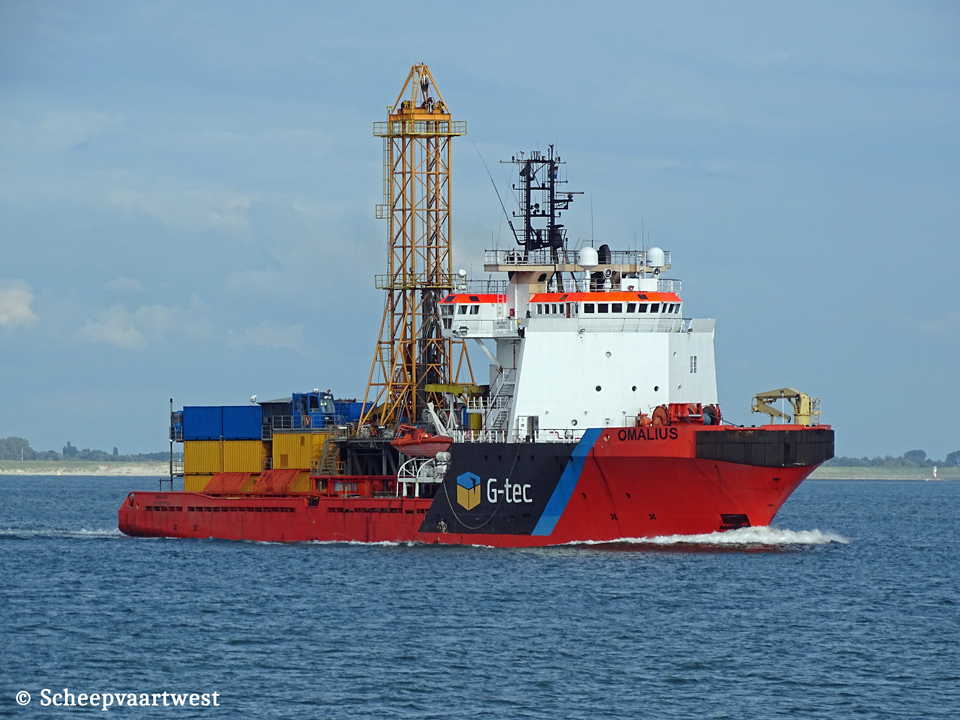

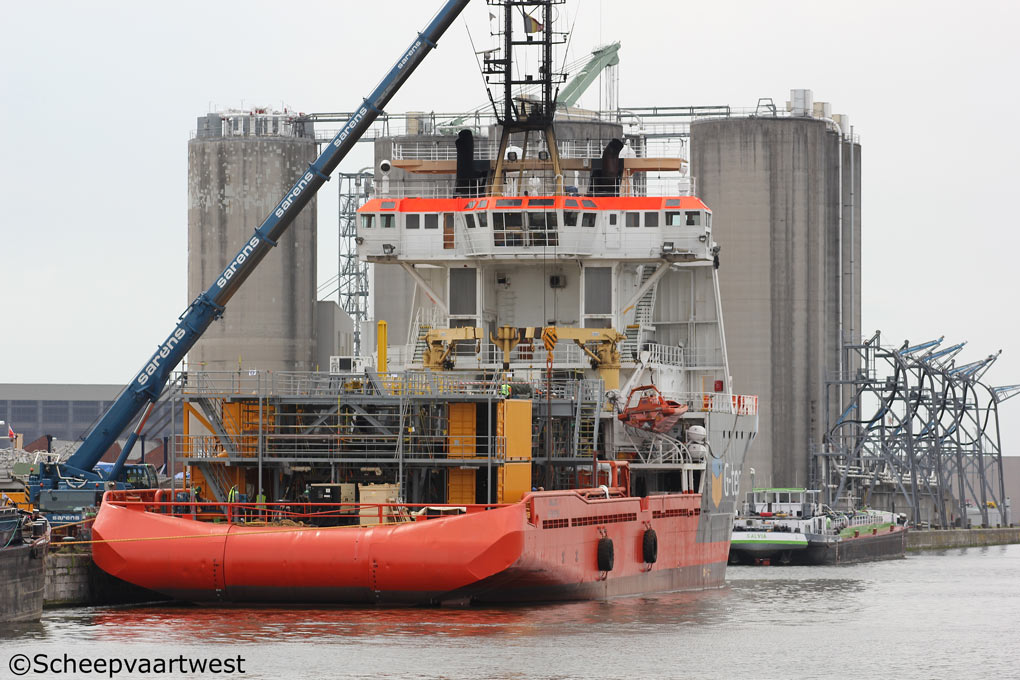

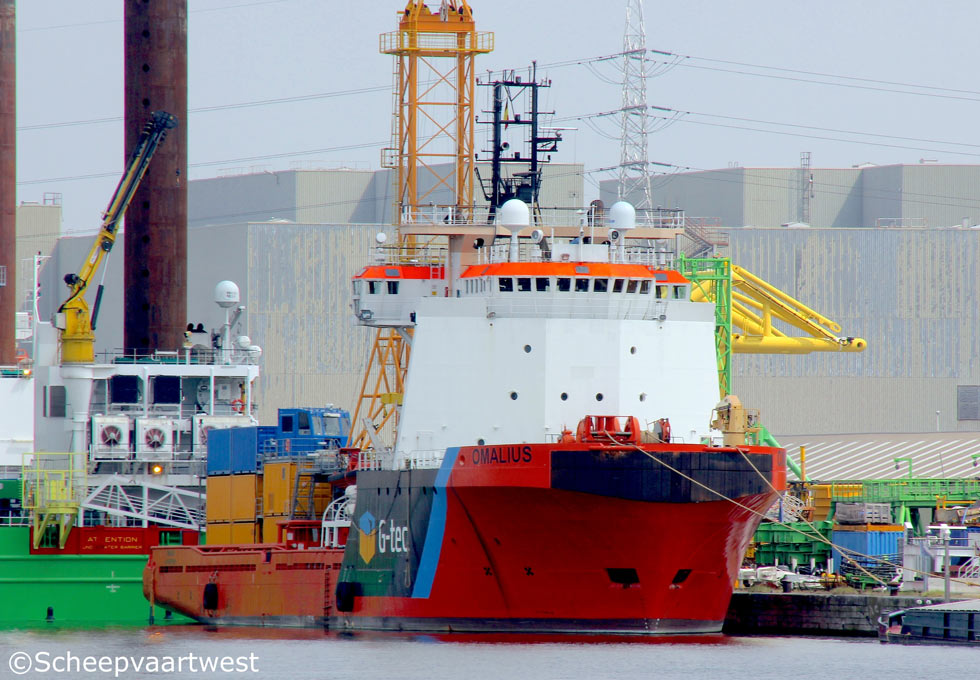

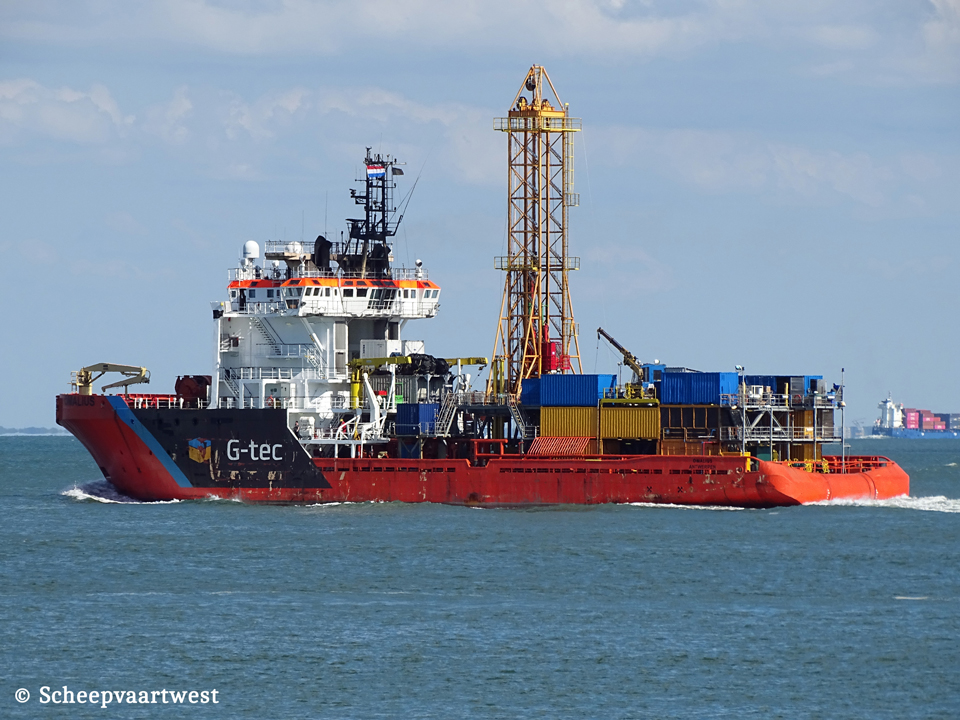

| Westerschelde 24/07/20 | Westerschelde 21/07/20 | Antwerpen 26/05/16 | Antwerpen 26/06/15 | Antwerpen 26/06/15 | Antwerpen 16/01/20 | |||||
 |
||||||||||
| Westerschelde 21/07/0 | ||||||||||
|
Name |
OMALIUS |
|
Previous names |
1985 - 05/2015 Normand Draupne |
|
Type |
Tug - Supply vessel Multi-purpose drilling vessel AHTS - Anchor Handling Tug Supply |
|
IMO-number |
8406470 |
|
Call sign |
ORRS |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
Previous flags |
1985 - 2015 Norway, Skudeneshavn - Call sign: LNZJ3 |
|
GT |
3.385 t |
|
DWT |
Summer: 2.500 t |
|
NT |
1.009 t |
|
Lightship |
3.032 t |
|
Length |
83,45 m overall 73,85 m between perpendiculars |
|
Breadth |
18,01 m extreme |
|
Draught |
5,57 m |
|
Depth |
7,95 m |
|
Speed |
Max: 15,5 knots Service: 12,0 knots |
|
Built |
1985 Converted 2015 |
|
Keel laid |
03/09/1984 |
|
Launch date |
11/03/1985 |
|
Date of completion |
13/06/1985 |
|
Builder |
Ulstein Hatlø A/S Ulsteinvik Norway |
|
Yard number |
192 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 6 Longitudinal: 3 |
|
Main engine |
4x Wichmann 10AXAG - 2 stroke 10 cylinder diesel 330 x 450 mm combustion engines total 13.188 kW / 17.932 hp at 475 rpm |
|
Propellers |
2x Controllable pitch propellers |
|
Shaft generator |
4x 2.700 kW each |
|
Generators |
2x Caterpillar 3412DITA main diesel generatorsets each 490 kW |
|
Emergency generator |
1x Caterpillar 3304DIT diesel generatorset |
|
Bow thruster |
2x 1.500 bhp / 1.103 kW, forward 2x 1.200 bhp / 883 kW, aft |
|
Bollard pull |
171 t |
|
Anchor winch |
Type: BSL 300wx / Sl300wx Hydraulic Brake holding first layer: brake 430 t |
|
Tow work winch |
Type: BSL 300wx / Sl300wx Hydraulic Brake holding first layer: brake 430 t |
|
Deck space |
589 m² |
|
Deck strength |
5,0 t/m² |
|
Moonpool |
5,15 x 4,75 m |
|
Tank capacities |
Fuel oil: 798 m³ Fresh water: 527 m³ Ballast: 2.177,9 m³ Grout/Cement tanks: 106 m³ |
|
Lifting equipment |
2x Deck cranes hydralift 1,5 t starboard & port crane |
|
Accommodation |
Total n° of bunks: 43 Mess rooms / Recreation rooms |
|
Positioning & Heading |
2x Gyrocompass Sperry Marine Navigat x MK2 1x Gyrocompass Raytheon Anschutz Gyrostar II 2x Veripos Ld7 GNSS receiver 1x Kongsberg Seatex DARPS 100 1x Kongsberg DPS 200 |
|
Manager |
Eco Shipping NV Esplanadestraat 1 8400 Oostende Belgium |
|
Owner |
G-Tec S.A. & G-tec Offshore S.A. Z.I. des Hauts-Sarts Zone 3 Rue des Alouettes 80 B-4041 Milmort Belgium |
|
Renamed |
04/2021 Geoquip Seehorn Cyprus, Limassol - Call sign: 5BSW5 Owner: Foehn Shipping Ltd., 9000 St Gallen - Switzerland Manager: Geoquip Marine Operations AG, 9000 St Gallen - Switzerland |
|
Latest data adjustment |
11 March 2023 |
