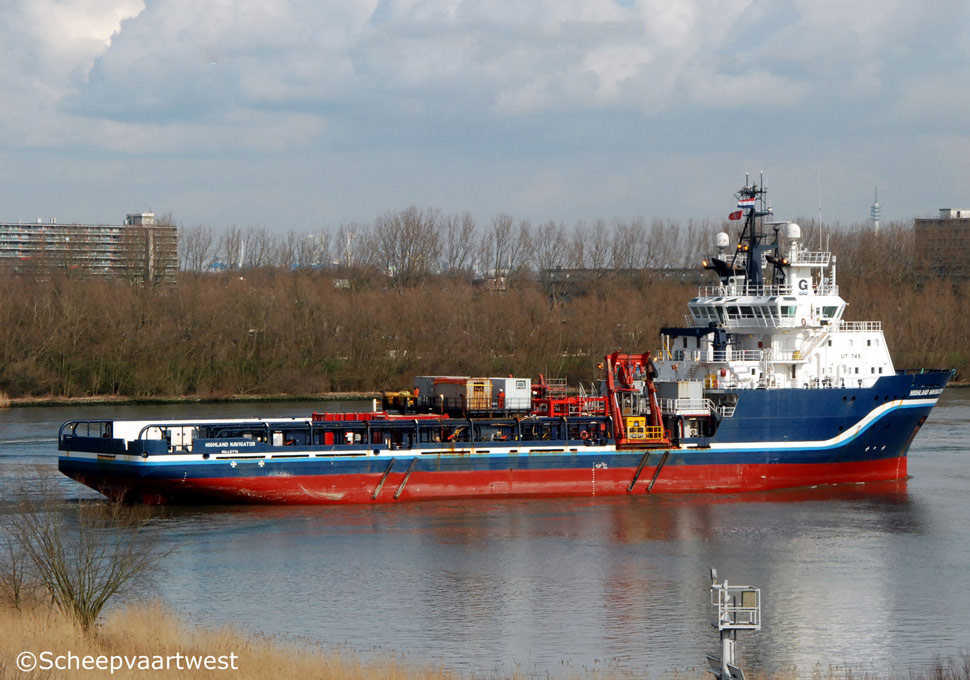

Spijkenisse, The Netherlands 05 March 2016 |
 |
 |
|

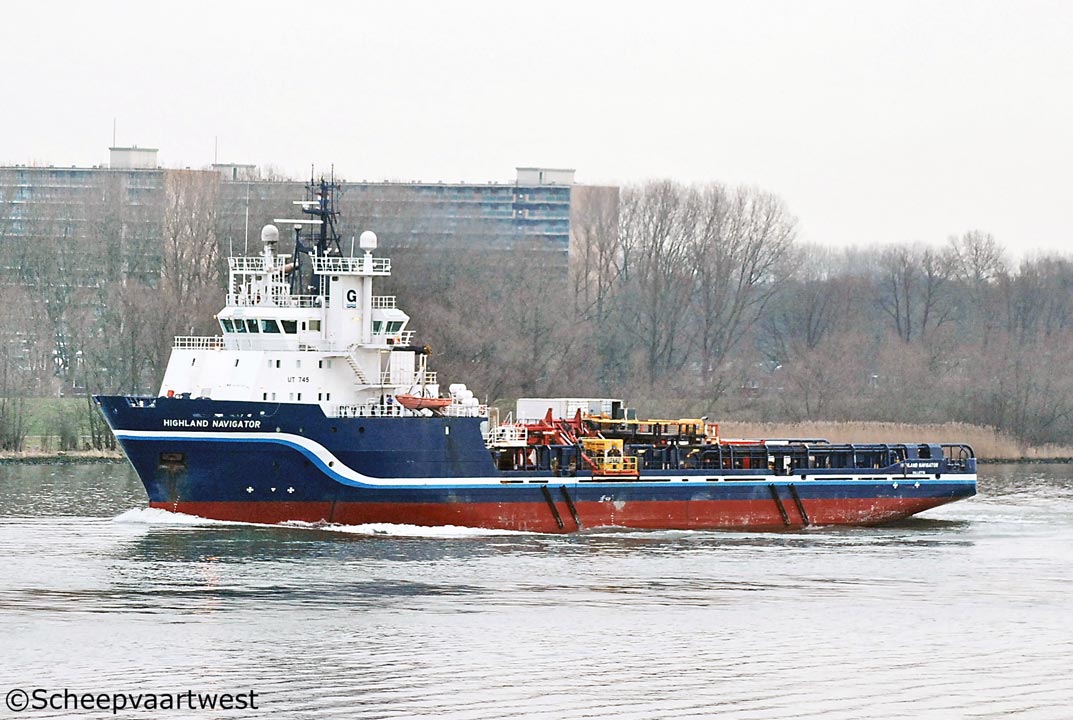

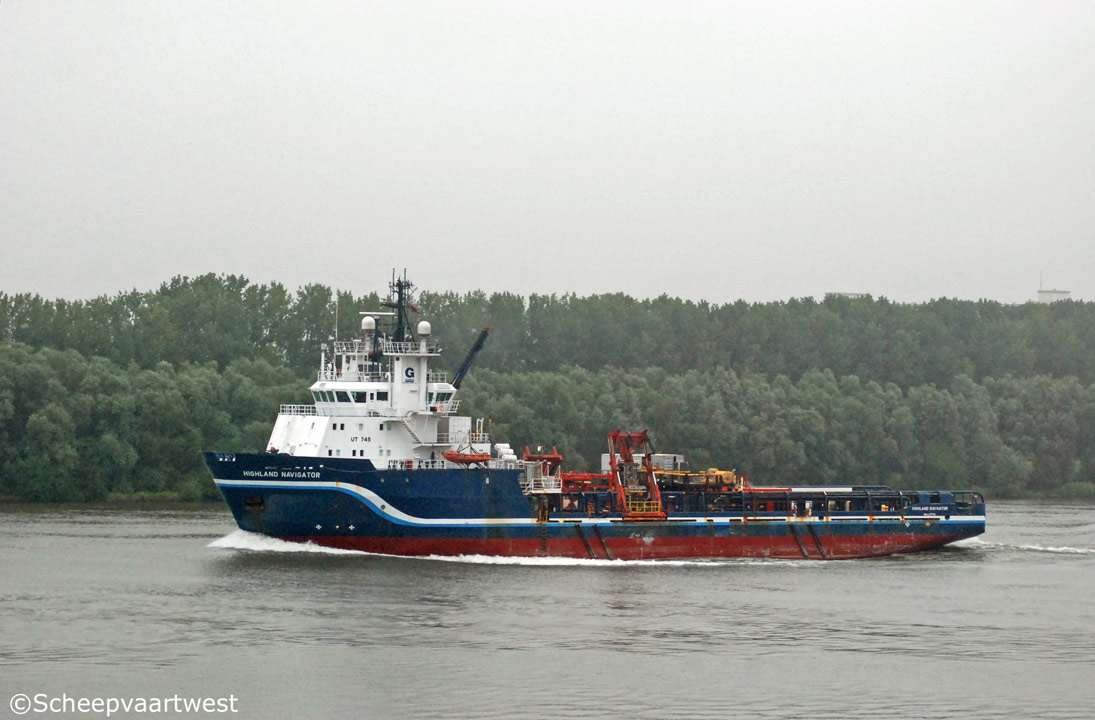

| Spijkenisse 25/07/16 | Spijkenisse 06/02/17 | |
|
Name |
HIGHLAND NAVIGATOR |
|
Type |
Platform supply/rov support vessel AHTS - Anchor handling tug supply |
|
IMO-number |
9239769 |
|
Call sign |
9HA2799 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
01.2010 - 07.2011 Republic of Panama, Panama City - Call sign: 3EMW4 |
|
GT |
3.277 t registered |
|
DWT |
4.510 t |
|
NT |
1.458 t registered |
|
Length |
84,00 m overall 76,20 m between perpendiculars |
|
Breadth |
18,80 m moulded |
|
Draught |
Max.: 6,20 m |
|
Freeboard |
1.272 mm |
|
Depth |
7,60 m moulded |
|
Speed |
Max.: 15,0 knots Eco: 11,0 knots |
|
Built |
2002 |
|
Keel laid |
29.03.2001 |
|
Delivery date |
22.02.2002 |
|
Builder |
Soviknes Verft AS Norway |
|
Yard number |
134 |
|
Hull material |
Ordinary strength steel |
|
Watertight bulkheads |
6 |
|
Main engine |
2x Rolls Royce Bergen Marine type BRM-8 - 8 cylinder 320 x 360 mm diesel engines 3.535 kW / 4.800 bhp at 750 rpm Manufacturer: Bergen Diesel A/S |
|
Gearbox |
2x Type Ulstein 1500 AGSC-KP500 |
|
Propellers |
2x Controllable pitch propellers - 4 blades Manufacturer: Kamewa |
|
Rudders |
2x Ulstein high lift |
|
Shaft generator |
2x Marelli, Type M8R500 each 1.920 kW / 440 Volt 60 Hz |
|
Generators |
3x Caterpillar CAT-3406 345 kW at 1.800 rpm diesel engines coupled with 3 generator each 320 kW / 440 Volt 60 Hz |
|
Emergency generator |
1x Caterpillar Type 3304 diesel engine 77 kW coupled with generator 81 kVA / 440 Volt 60 Hz |
|
Bow thruster |
2x Ulstein CPP bow tunnel thruster type 375TV, fixed speed Both supplied by a 883 kW / 440V-electromotor, forward 2x Ulstein CPP bow tunnel thruster type 250TV, fixed speed Both supplied by a 662 kW / 440V-electromotor, aft |
|
Capstans |
2x 10,0 t |
|
Cargo capacity 100% |
Deck area: 53,50 x 16,45 m Deck load: 2.600 t Fuel Oil: 1.189,8 m³ Potable water: 1.105 m³ Drill water: 1.383,8 m³ Oil based mud: 4.361 m³ Base oil: 1.461 m² Brine: 5.779 m³ Dry bulk: 14.000 ft³ |
|
Discharge rates |
Fuel: 250 m³/h Pot Water: 250 m³/h Oil Based Mud: 150 m³/h Base Oil: 130 m³/h Brine: 75 m³/h Cement: 80 t/h Barytes: 60 t/h Bentonite: 100 t/h Drill Water: 250 m³/h |
|
Number of tanks |
Ballast: 19 Fuel oil: 16 Fresh water: 7 Lubricating oil: 4 Waste water: 3 Sludge: 2 Cargo oil: 2 Chain: 1 Hydraulic oil: l1 |
|
Tank capacities |
Freshwater:1.113,3 m³ Fuel Oil: 1.246,1 m³ / 1.122,17 t Hydraulic Oil: 4,5 m³ / 4,15 t Lube Oil: 31,4 m³ / 29,01 t Tank Ballast: 2.381,3 m³ / 2.440,83 t |
|
A-Frame |
1x 25,0 t with winch (500 m of 36 mm wire) 8,50 m (h) x 8,90 m (w) |
|
Construction crane |
1x 35,0 t @ 10,00 m or 20,0 t @ 15,00 m (500 m of 42 mm wire) |
|
Accommodation |
50 persons 8 x 1 man 21 x 2 man |
|
Navigation & communication equipment |
x Furuno 10CM ARPA RADAR 2835S 1 x Furuno 3CM RADAR, Model 2115 2 x Furuno Satellite Navigator GP 80 1 x TRON EPIRB 2 x Jotron 9GHz Radar transponder 3 x Sailor SP 3110 portable VHF for GMDSS 4 x Motorola GP 340 portable UHF 1 x GSM Cellular phone Radio Certificate for GMDSS Area A3 1 x Telchart chart plotter T-2025 1 x Furuno Sat B Felcom 81B 3 x Anschutz gyro compass – 20 compact 1 x Anschutz digital autopilot 1 x Anschutz universal signal unit 1 x Furuno echo sounder FE-700 1 x Furuno Doppler speed log DS80 2 x Wind indicator 1 x Furuno MF/HF SSB Radio station 1 x Furuno DSC terminal DSC 60 2 x Furuno SAT C 1 x Furuno Navtex receiver NX-500 2 x Sailor RT 4722 Duplex VHF 1 x Sailor RT 4822 simplex VHF 3 x TSS Meridian gyro compasses 1 x KU Band Satellite Comm System |
|
Dynamic positioning system |
Kongsberg Simrad SDP 21 HiPAP acoustic reference system 1x DGPS reference system 1x Mk 12 Light Weight Taut Wire 1x Fan beam laser 1x SPT 331 Transponder 2x RPT 316 RT Transponders |
|
Operator |
Gulfmark Malta Limited 62-104 Market Street Aberdeen, AB11 5PL United Kingdom |
|
Registered owner |
Gulfmark Malta Limited |
|
Latest data adjustment |
05 June 2016 |
