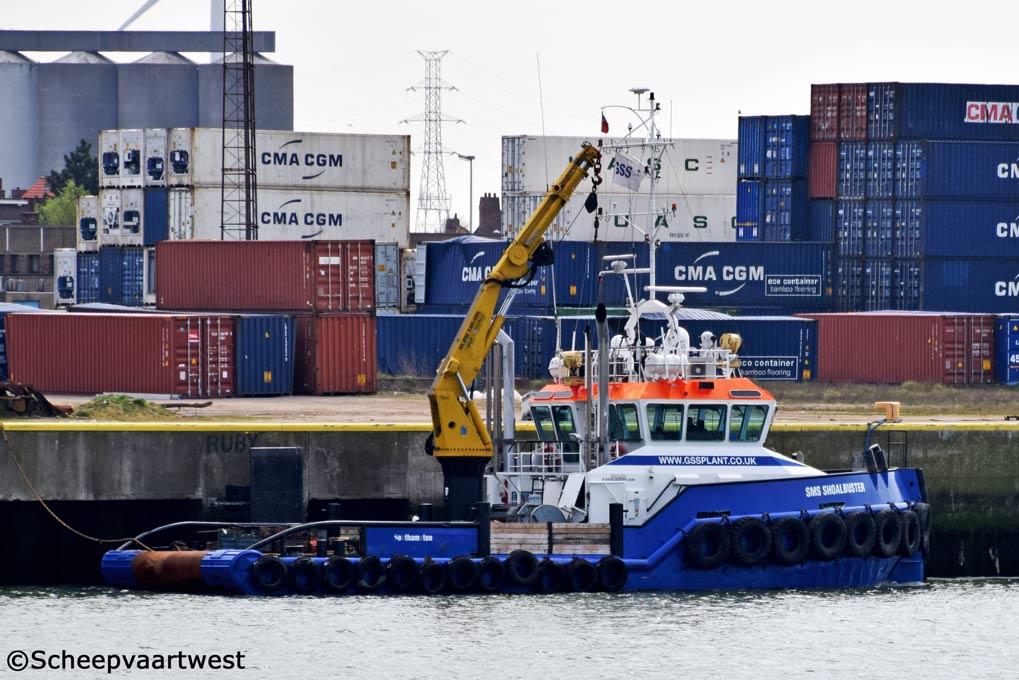

SMS Shoalbuster 02

Zeebrugge 08 May 2015

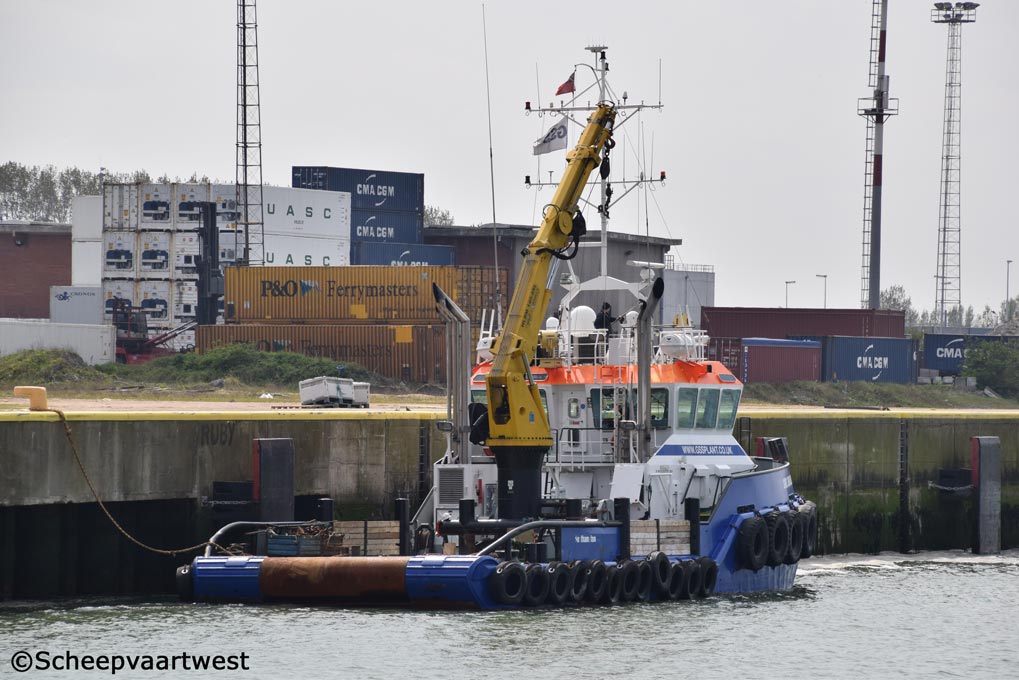

SMS Shoalbuster 06
Zeebrugge 08/05/15


Name

SMS SHOALBUSTER

Type

Tug - Shoalbuster 2609

IMO-number

9557604

Call sign

2BYF6

Flag

United Kingdom

Port of registry

Southampton

GT

212 t

DWT

Summer: 200

NT

63 t

Length

26,02 m overall

23,90 m between perpendiculars

Breadth

9,01 m

Draft

3,60 m

Speed

11,4 knots

Built

2009

Date of completion

12.06.2009

Builder

Damen Shipyard Hardinxveld
Hardinxveld Giessendam
The Netherlands

Yard number

571619

Hull material

Steel

Continuous decks

1

Main engine

2x Caterpillar 3508B - 4 stroke 8 cylinder 170 x 190 mm diesel engines each 2.228 bhp / 1.640 kW at 1.600 rpm

Builder: Caterpillar, Mossville - USA

Propellers

2x Screw propeller solid - aft at 294 rpm

Generators

2x Caterpillar C-4.4 TA diesel generatorsets each 86 kVA - 69 kW - 102 hp

Bow thruster

1x Hydraulic 200 hp

Bollard pull

31,1 t average

Deck area

70,0 m²

Deck load

37.000 kg

Deck equipment

Crane:

1x Heila HLRM 140-4SL

5,3 t at 18,03 m

16,8 t at 7,69 m

Winches:

50 t anchor/towing AMW-H

400 double drum 8 t Brevini tugger winch

Other equipment

Stern roller

Towing hook/bit Mampaey DCX 30/45

Aft hydraulic pins

Towing pins

Deck flood lights

Tank capacities

Fuel: 126 m³

Fresh water: 303 m³

Accommodations

Licensed for 12 persons

1x double + 4 single cabins

Messing facilities

Heated & air-conditioned

Crew

5

Navigation equipment

Magnetic compass

Electronic compass

2x radar

2 x GPS

Electronic chart plotter

Echo sounder

Watch keeper alarm

AIS

Navtex

Talkback unit

Speed log

Communication equipment

Cell (GSM) phone

2x Inmarsat C satellite phone

SSB radio

2x VHF radio + 2 hand held

Email

Owner

GSS Marine Services (Gareloch Support Services Ltd.)
Rhu Marina, Rhu, Argyll & Bute, G84 8LH
Scotland
United Kingdom

Latest data adjustment

19 May 2015
