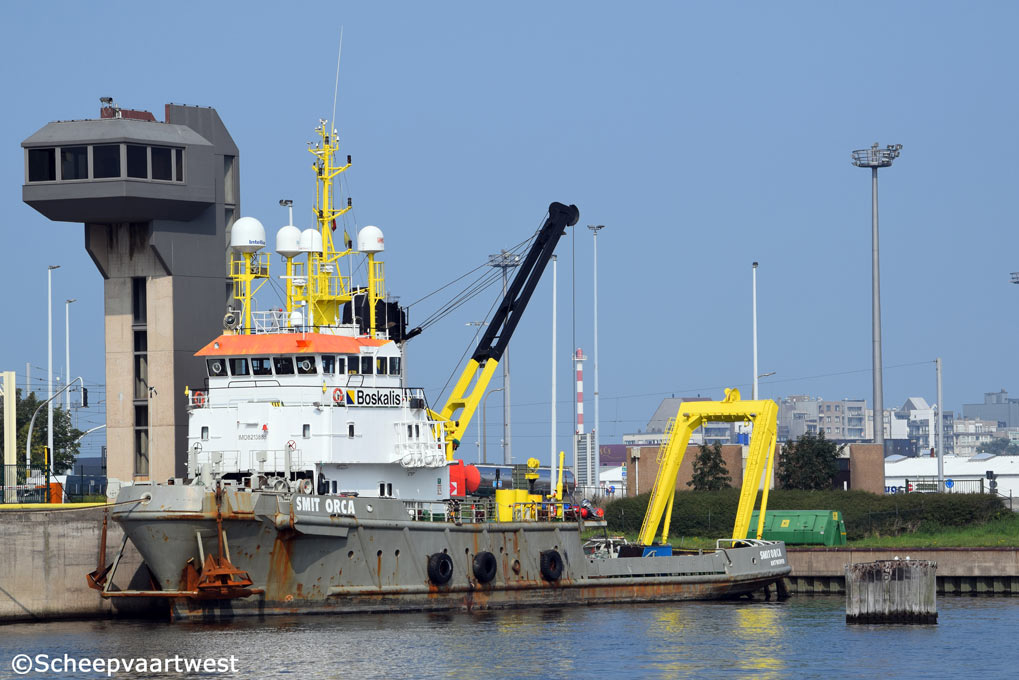

Smit Orca - IMO 8213885

Zeebrugge 07 September 2014

Name

SMIT ORCA

Previous names

1983 - 1986 Orca

Type

Tug - Offshore supply ship - Salvage vessel deep-sea - Diving support vessel

IMO-number

8213885

Registration number

01 00635 2006

Call sign

ORNX

Flag

Belgium

Port of registry

Antwerpen

Previous flag

The Netherlands

GT

835 t

NT

250 t

Displacement

904 t

Length

50,77 m overall

Breadth

11,79 m

Draught

Max.: 3,80 m

Air draft

26,00 m

Depth

4,73 m

Air draft

26,00 m

Freeboard

506 mm

Depth

4,70 m

Speed

10,0 knots

Built

1983

Launch date

02.09.1983

Date of completion

02.12.1983

Builder

Barkmeijer Stroobos B.V.
Stroobos
The Netherlands

Yard number

0224

Hull material

Steel

Watertight compartments

5

Continuous decks

1

Main engine

2x Brons–MAN 7L20/27 - 4 stroke 7 cylinder diesel engines - total 1.412 kW / 1.904 bhp at 1.000 rpm

Built: 1983

Builder: Brons Industrie, Appingedal - The Netherlands

Propellers

2x Screw propeller controllable pitch - aft at 310 rpm

Electric installations

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

3x Diesel generatorsets each 250 kVA - 440 V, 60 Hz
1x Diesel generatorset 135 kVA - 440 V, 60 Hz
1x Diesel generatorset 55 kVA - 380 V, 50 Hz

Bow thruster

1x 350 kW

Bollard pull

30,0 t

Deck & salvage equipment

1x Crane- SWL 16,0 t
Sternroller: 140 t
A-frame: SWL 60 t (optional)
Salvage/towing winch 50 tt
Tugger winch: 10 t
4-point mooring system, consists of: 4x Delta Flipper anchors each 2,5 t
4x winches, wire capacity 1.000 m forward - 650 m aft

Tank capacities

Fuel oil: 270 m³

Potable water: 120 m³

Accommodation

4x single cabins
14x double cabins
Hospital and dark room

32 berths

Navigational aids

3x VHF's

Electronic chart system
Echosounder

Sonar
2x Radar

DGPS
Automatic pilot
Satcom

Wireless telephone

Special features

Diving equipment, among which, decompression chamber high and low pressure compressors

Manager

Smit Transport Europe B.V.
Waalhaven O.Z. 85
Rotterdam

The Netherlands

Operator

01.02.2005 Redding en Sleepdienst N.V.

Antwerpen
Belgium

Owner

Royal Boskalis Westminster N.V.
N.V. Boskalis Offshore transport Services

Rosmolenweg 20

3350 AA Papendrecht

The Netherlands

Previous names & owners

02-12-1983 Orca - Smit–Tak International Orca B.V., Rotterdam- The Netherlands

04-04-1986 Smit Orca - Smit–Tak Internationaal N.V., Rotterdam - The Netherlands

1992 Smit Orca - Takmarine B.V., Hoek van Holland - The Netherlands

30-09-2003 Smit Orca - Smit Transport Europe B.V., Rotterdam - The Netherlands

Scrapped

2017 Turkey

Latest data adjustment

23 February 2017
