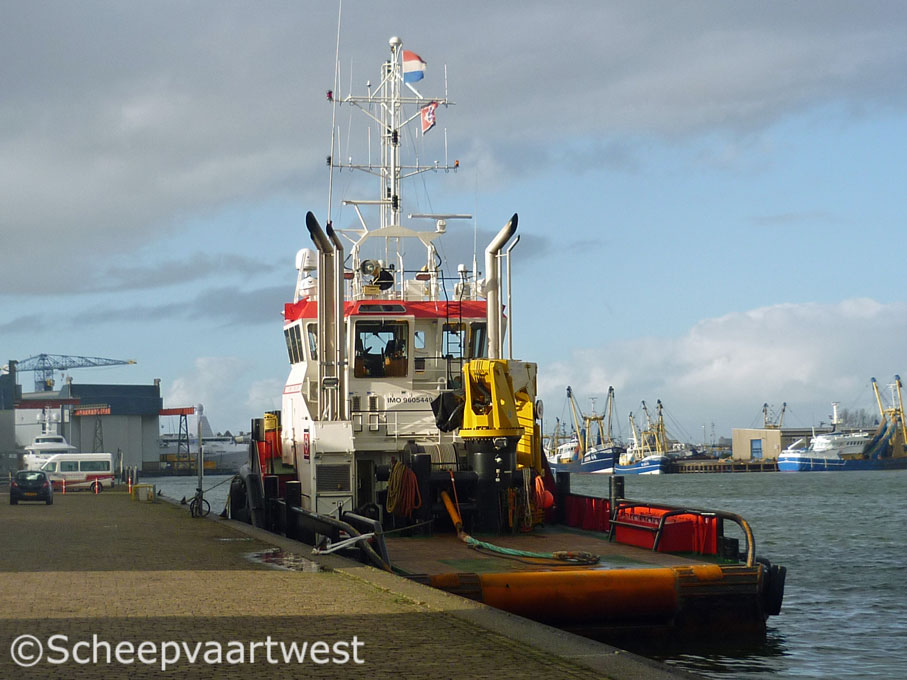

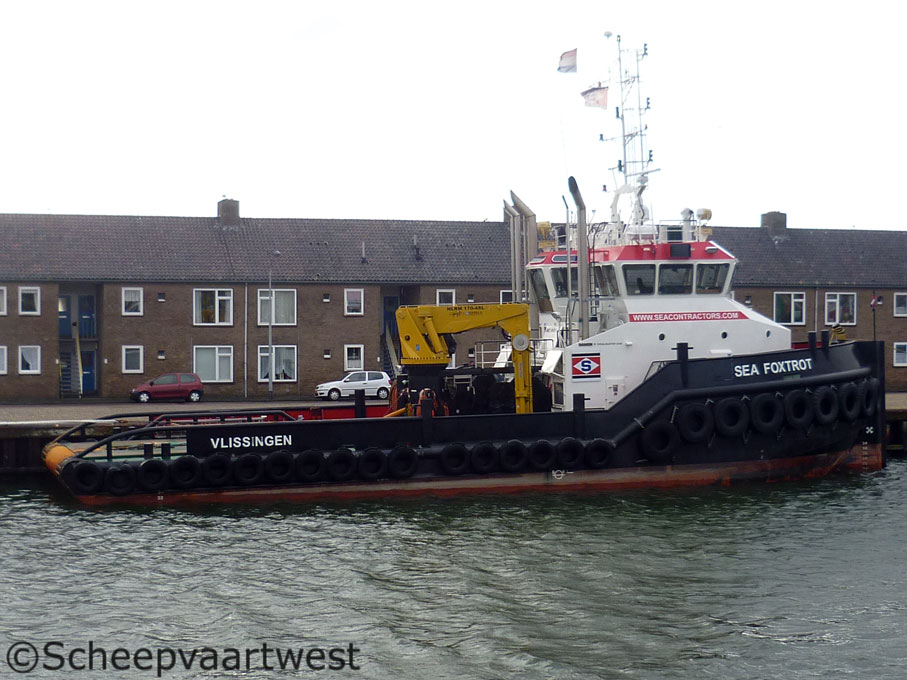

Sea Foxtrot - IMO 9605449

Name

SEA FOXTROT

Type

Tug - Anchor handling tug, shallow draught workboat

Basic functions

Dredging and Off-shore support

IMO-number

9605449

Call sign

PHSF

Flag

The Netherlands

Port of registry

Vlissingen

GT

327 t

NT

98 t

Length

32,27 m overall

30,52 m between perpendiculars

Breadth

9,35 m moulded

Max. draught

3,32 m

Freeboard

608

Depth

4,40 m

Speed

11,4 knots

Built

2011

Date of completion

12.09.2011

Builder

Damen Shipyards Hardinxveld

Hardinxveld-Giessendam
The Netherlands

Yard number

571651

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

2x Caterpillar Type 3512B TA/C - 4 Stroke 12 cylinder 170 x 190 mm diesel engines - Total Power 2.460 kW / 3.344 bhp at 1.600 rpm

Builder: Caterpillar, Lafayette - USA

Gear boxes

2x Reintjes WAF 772 L / 6.44:1

Propulsion system

2x Promarin fixed pitch propellers - at 362 rpm

Diameter: 2x 2.250 mm V.d. Giessen optima nozzles

Generators

2x Caterpillar C4.4 TA diesel generatorsets each 107,5 kVA - 50 Hz, 230/400 Volt

Bow thruster

350 bhp - hydraulically driven

Bollard pull

50 t

Hydraulic Power

1x Caterpillar C18 TA-B diesel engine 357 kW at 1.800 rpm

Transfer Pumps

For fresh water: VWSI 8020 - 50 m³/h at 4,8 bar

For fuel oil: VWSI 8020 - 50 m³/h at 4,8 bar

Fuel oil separator

Westfalia, OCT 2

Deck Lay-out

Anchor: 2x 360 kg Pool (HHP)

Chain: 19 mm stud-link anchor chain 220 m

Anchor winch: Ridderinkhof, hydraulically driven CAW-H-152

Towing Winch: Ridderinkhof 50 t at 10 m/min (pull)

100 t at 5 m/min (anchor)

125/150 t holding power

Tugger Winches: Brevini 8 t at 4,5 m/min

Tank capacities

Fuel oil: 222.00 m³

Fresh Water: 40.80 m³

Lub oil: 7.30 m³

Hydraulic oil: 3.10 m³

Dirty oil: 4.30 m³

Bilge water: 4.30 m³

Sewage: 3.30 m³

Lifting equipment

1x Deck crane Heila HLRM 170-4SL - 7,9 t at 15,93 m

Owner

Seacontractors

Bellamypark 48-52

4381 CK Vlissingen

The Netherlands
