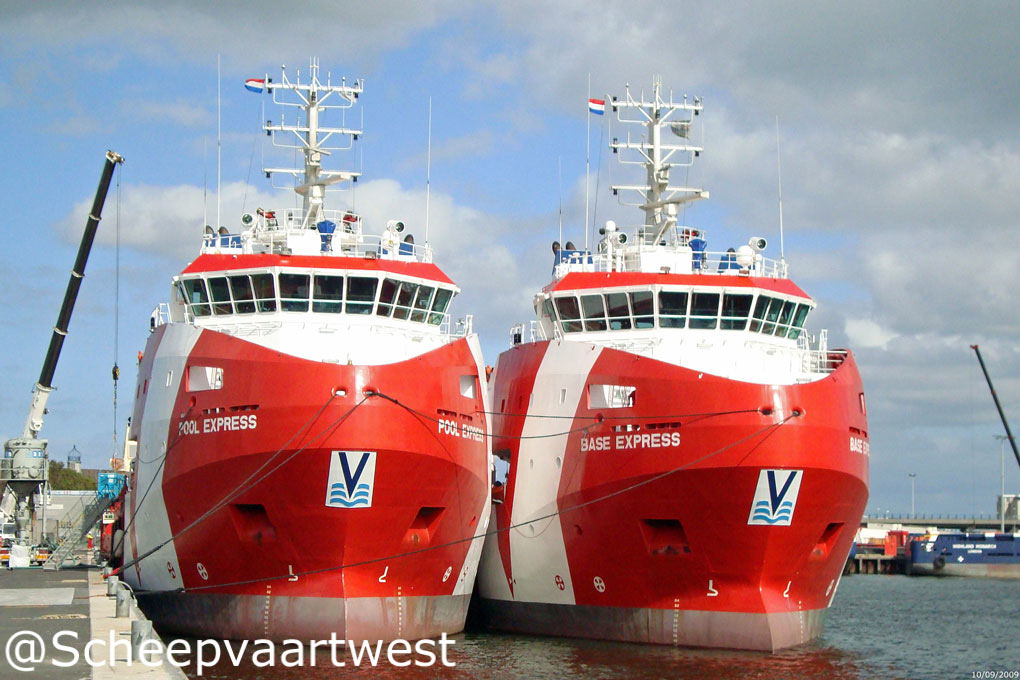

Pool Express 01
10 September 2009

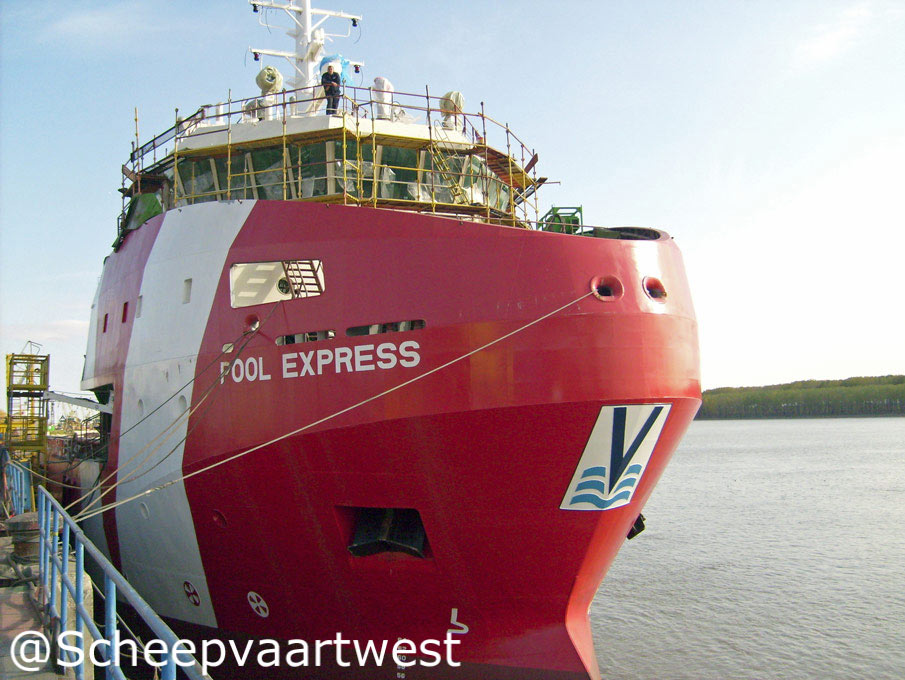

Pool Express 02
10/09/09


Name

POOL EXPRESS

Type

Offshore platform supply ship - Tug

IMO-number

9378034

Call sign

PHMU

Flag

The Netherlands

Port of registry

Breskens

GT

2.534 t registered

DWT

3.200 t

On max. draft: 2.200 t

NT

760 t registered

Length

71,85 m overall

66,10 m between perpendiculars

Breadth

16,00 m moulded

Draft

Design: 5,00 m

Max.: 6,10 m

Depth

7,50 m

Speed

13,5 knots

Built

2008

Launch date

10.08.2007

Date of completion

02.2008

Builder

Damen Shipyard Galatz
Galati
Romania

Yard number

334

Hull material

Steel

Hull type

Single hull

Main engine

2x Diesel engines each 1.438 kW total 3.000 kW

Main propulsion system

2x Type Ulstein Aquamaster US 205FP - 1.500 kW each

Propellers

2x Rolls Royce US 205 azimuth thrusters - 4 blades fixed pitch

Diameter: 2.400 mm in nozzle

Generators

4x ABC 6(M)DZC-900-166 - 6 cylinder diesel engines - Max. output 4x 1.194 kW at 900 rpm

Builder: Anglo Belgian Corporation N.V.
Wiedauwkaai 43
9000 Gent
Belgium

Emergence generator

1x Diesel generatorset 219 kVA

Bow thruster

2x Kamewa - each 650 kW - 3 blades fixed pitch in tunnel

Diameter: 1.650 mm

Deck cargo

Max.: 1.500 t

Deck area

620 m²

Abt.: 47,70 x 13,00 m

Deck strength

5,0 t

Cargo tank capacities

MDO: 582 m³ - discharge rate: 0 - 150 m³/h

Portable water: 420 m³ - discharge rate: 0 - 150 m³/h

Glycol: 117 m³ - discharge rate: 0 - 100 m³/h

Methanol: 142 m³ - discharge rate: 0 - 100 m³/h

Dry bulk: 270 m³ - discharge rate: 75 t/h

Drilling and ball water: 900 m³ - discharge rate: 0 - 150 m³/h

Brine: 213 m³ - 0 - 100 m³/h

Liquid mud: 714 m³ - discharge rate: 0 - 100 m³/h

Base oil: 107 m³ - discharge rate: 0 - 100 m³/h

Tank capacities vessel

MDO: 193 m³

Portable water: 117 m³

Accommodation

12x 1 men cabins (vessel crew)

2x 6 men cabins (passengers)

Office: 1x 9 m² (approx)

Hospital: 1 man

Manager

Vroon Offshore Services B.V.
Den Helder
The Netherlands

Owner

Pool Express B.V.
Breskens
The Netherlands

Last update

10.03.2013
