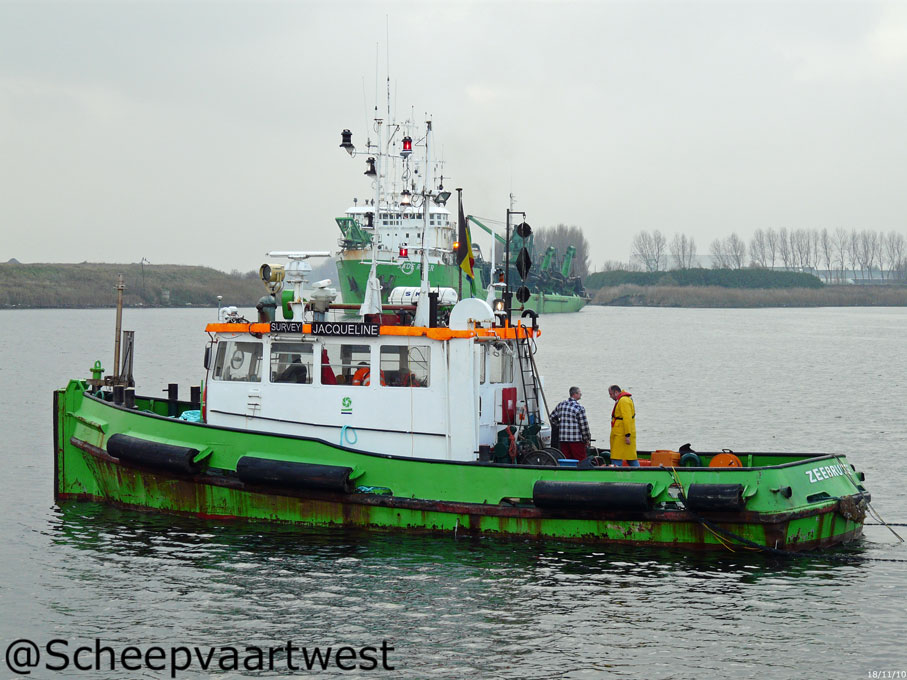

| Zeebrugge 18 November 2010 |
 |
 |
 |
 |
|||

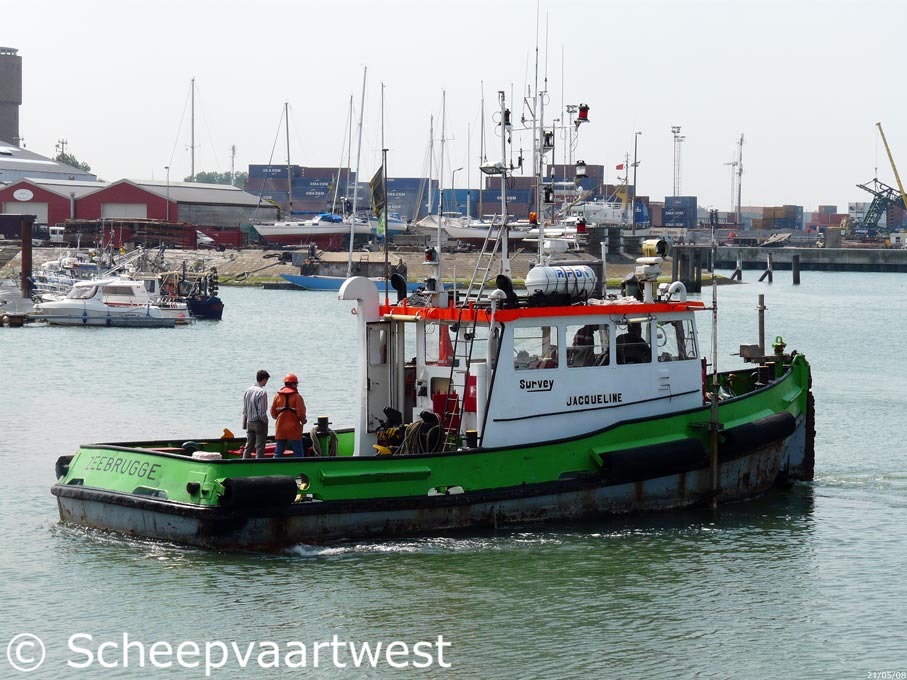

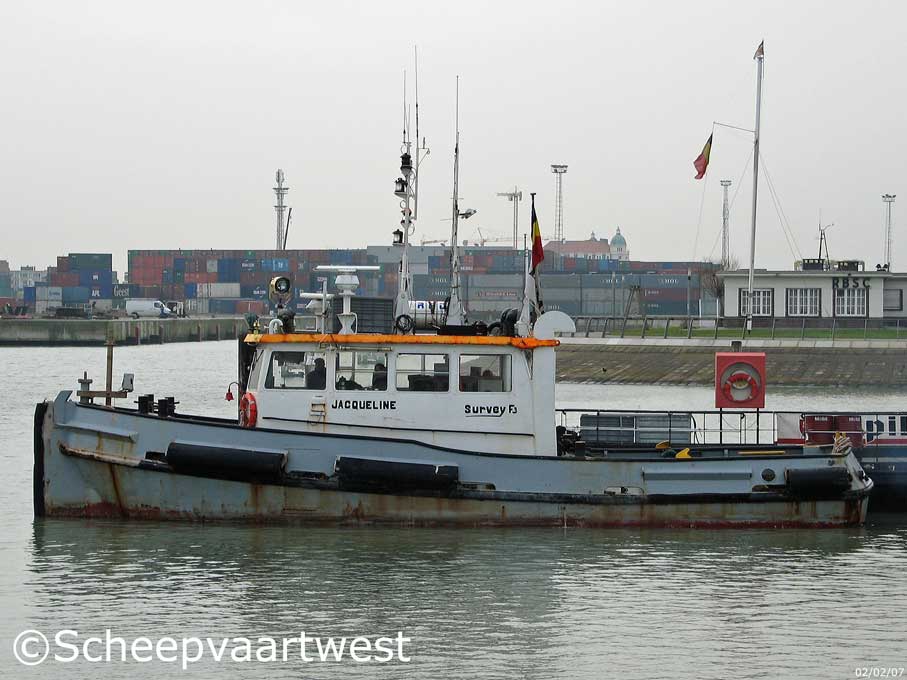

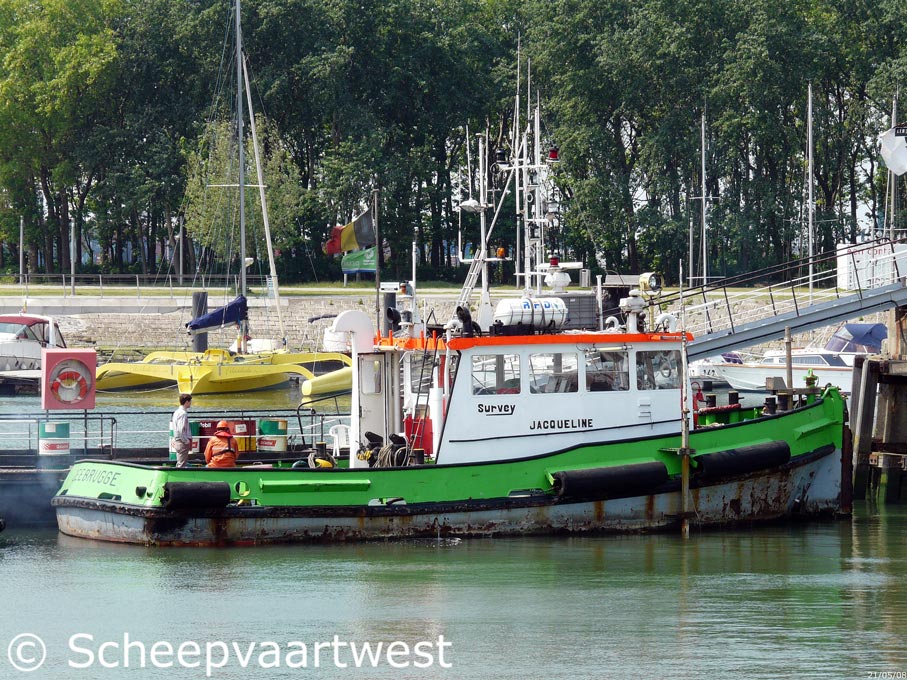

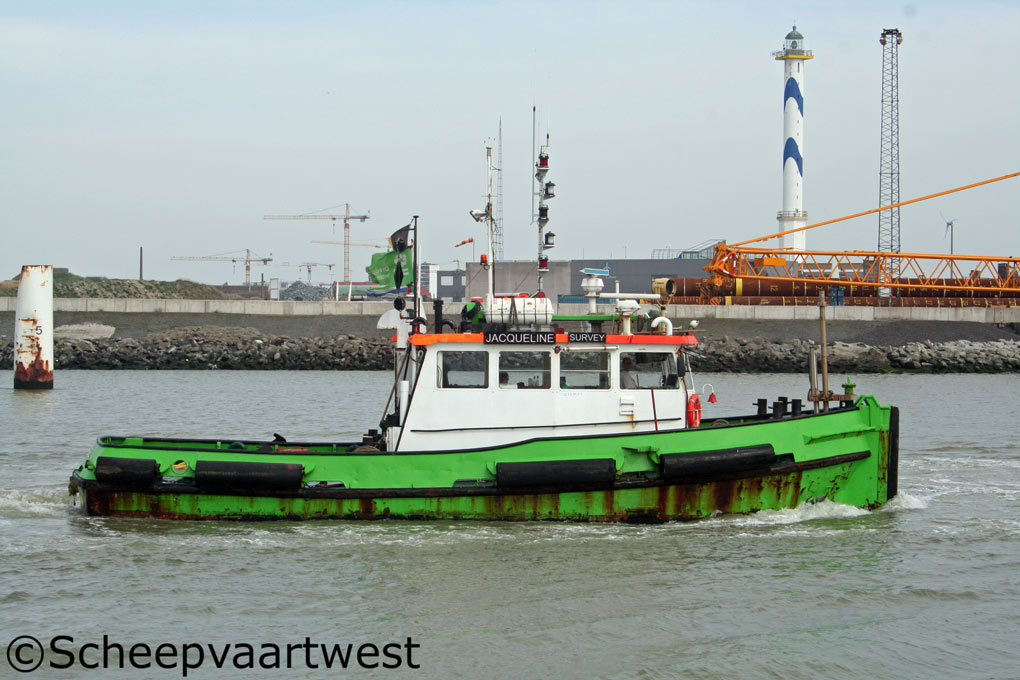

| Zeebrugge 21/05/08 | Zeebrugge 21/05/08 | Oostende 02/04/11 | Zeebrugge 20/02/07 | |||
|
Name |
JACQUELINE |
|
Type |
Tug - Pusher boat - Coastal area - Survey |
|
Call sign |
ORKT |
|
Flag |
Belgium |
|
Port of registry |
Zeebrugge |
|
GT |
41 t |
|
DWT |
40 t |
|
NT |
6 t |
|
Length |
16,33 m overall 14,70 m between perpendiculars |
|
Breadth |
4,85 m registered |
|
Draught |
1,80 m |
|
Depth |
2,30 m |
|
Speed |
10,0 knots |
|
Built |
1979 |
|
Date of completion |
03.10.1979 |
|
Builder |
Deltawerf |
|
Yard number |
0161 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine power |
2x Caterpillar - 4 stroke 6 cylinder 137 x 165 mm diesel engine - 368 kW / 500 hp at 1.800 rpm Built: 1979 Licence:Caterpillar, Peoria - USA |
|
Electrical propulsion gen. |
2x 1kW |
|
Propelling system |
2x Screw propeller solid - at 450 rpm |
|
Electrical installation |
Power voltage: 24 Volt |
|
Fuel capacity |
5 m³ |
|
Crew |
2 |
|
Owner |
N.V. Baggerwerken Decloedt en Zoon N.V. |
|
Group |
DEME - Dredging, Environmental & Marine engineering |
