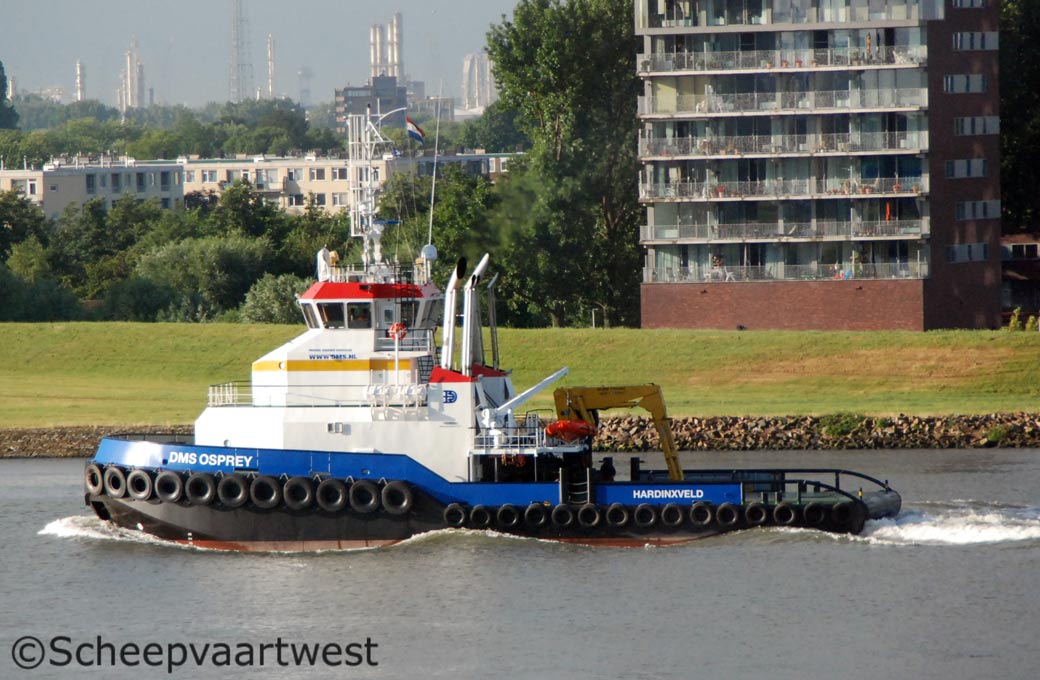

DMS Osprey 01
Spijkenisse, The Netherlands 14 July 2010


Name

DMS OSPREY

Type

Tug - DAMEN Shoalbuster 3511

IMO-number

9548897

Call sign

PBYG

Flag

The Netherlands

Port of registry

Hardinxveld

GT

614 t

NT

184 t

Length

35,08 m overall

33,10 m between perpendiculars

Breadth

11,60 m

Draft

4,20 m

Freeboard

958 mm

Depth

5,25 m

Speed

11,6 knots

Built

2010

Launch date

26.02.2010

Date of completion

27.04.2010

Builder casco

Stocznia Koz le Se rw is

Kozle

Poland

Builder completion

Damen Shipyards Hardinxveld
Hardinxveld-Giessendam
The Netherlands

Yard number

571615

Hull material

Steel

Watertight bulkheads

6

Continuous decks

1

Main engine

2x Caterpillar type 3516 B TA - 4 stroke 16 cylinder single acting 170 x 190 mm diesel engines - 3.840 kW / 5.218 hp at 1.600 rpm

Built: 2009

Manufacturer: Caterpillar Tractor Co.

Gearbox

2x Reverse reduction gears Reintjes WAF-873

Propeller

2x Screw propeller solid - at 213 rpm in Giessen

Optima nozzle - diameter 2.712 mm

5-blades propeller - diameter 2.700 mm

Generators

2x Caterpillar type C-9 TA - 6 cylinder 112 x 149 mm diesel engines each 132 kW / 220 hp diesel engines at 1.500 rpm coupled with Leroy Somer type LSAM 46.2M5 generators each 150 kVA - 50 Hz - 230/400 V

Built: 2009

Manufacturer: Caterpillar Tractor Co.

Hydraulic power plant

1x Caterpillar type C-18 TA 6 cylinder 145 x 183 mm diesel engine - 500 kW / 670 hp at 2.100 rpm for hydraulic pumps

Built: 2009

Manufacturer: Caterpillar Tractor Co.

Bow thruster

400 hp - hydraulically driven

Bollard pull

70,2 t

Towing equipment aft

1x Ridderinkhof hydraulic winch

Wire length: 700 m

Wire diameter: 48 mm

Pull: 50 t

Pulling speed: 10 m/min

Anchor handling winch

1x Ridderinkhof hydraulic winch

Wire length: 300 m

Wire diameter: 52 mm

Pull: 100 t

Pulling Speed: 5 m/min

Tugger winch

1x Winch

Pull: 10 t

Pulling speed: 4,5 m/min

Fuel oil separator

Alva Laval MAB-104

Fifi equipment

2x Monitors each 600 m³/h

Tank capacities

Fuel oil: 382,18 m³

Fresh water: 45 m³

Lub oil: 6,50 m³

Hydraulic oil: 6,50 m³

Anchors

2x 450 kg

Chain length: 137,5 m

Lifting equipment

1x Heila HLRM 170-4SL Hydraulic Crane - SWL7.9 ton at 15,93 m
1x Global David Boat Crane

Accommodation

Heated and air-conditioned livings spaces for 15 persons

Manager

Damen Marine Services B.V.
Rivierdijk 561
3371 EC Hardinxveld-Giessendam
The Netherlands

Owner

Damen Marine Services B.V.
Rivierdijk 561
3371 EC Hardinxveld-Giessendam
The Netherlands
