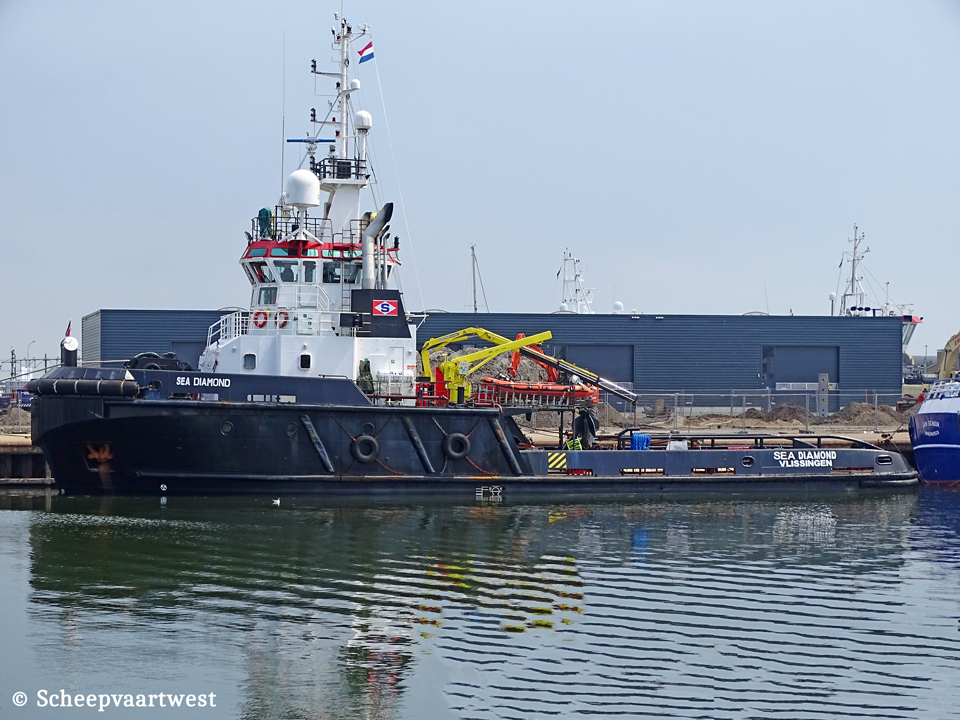

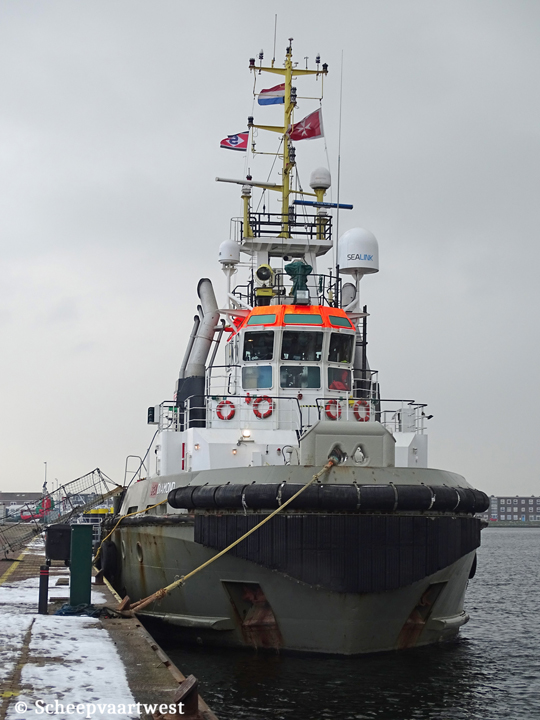

Sea Diamond - IMO 9220548

Name

SEA DIAMOND

Previous names

2001 - 2018 Union Diamond

2018 - 2019 Diamond

Type

Offshore vessels / anchor handling tug (AHT)

A.S.D. twin azimuth stern drive (Z-drive) propulsion tug

IMO-number

9220548

Call sign

PCAO

Flag

The Netherlands

Previous flags

2001 - 2018 Belgium, Antwerpen - Call sign: ORLK

2018 - 2020 Malta, Valletta - Call sign: 9HA4788

GT

498 t

NT

149 t

Length

36,60 m overall

Breadth

11,51 m

Draught

Max: 5,05 m

Min: 4,70 m

Depth

5,60 m

Speed

13,0 knots

Built

2001

Keel laid

07/06/2000

Launch date

17/11/2000

Delivery date

15/06/2001

Builder

Astilleros Armon SA

Navia

Spain

Yard number

511

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

2x ABC type 8 MDZC - 4 stroke 8 cylinder combustion engines totalling 3.700 kW / 5.962 hp at 1.000 rpm

Propellers

2x Schottel type SRP1515FP full azimuth propellers in Kort nozzles

Generators

2x Scania DS 9 95M diesel engines each 196 kW connected with generators each 180 kVA / 150 kW - 3 phases 380 Volt - 50 Hz

1x Diesel generatorset for harbour duties 90 kVA / 75 kW

Emergency generator

1x Generatorset for harbour duties 90 kVA

Bow thruster

1x Schottel SST 100 controllable pitch - 200 kW

Bollard pull

Ahead 65 t

Astern 60 t

Deck equipment

• Robust waterfall winch Brusselle type SLH-130/50/2-1 with one warping head on aft deck.

• Brake holding: 130 t, dynamic: 44 t at 10 m/min, slack rope speed: 50 m/min.

• Combined towing/anchor winch Brusselle type SLH-130.50/2-2-2 on forecastle deck with double drum 1.600 x 700 x 2 x 600 mm.

• Brake holding: 130 t, dynamic: 44 t at 10 m/min, slack rope speed: 50 m/min.

• Both towing winches are remote-controlled from the bridge. For extreme safety, all our winches have an emergency stop and a ’let-go’ button, that can even be operated in a total black-out situation

Tugger winch

1x Make BRUSSELLE type HL 15 / 1-0 - pull 15 t

Stern roller

SWL - 200 t, 4,00 m length, 1.250 mm diameter

Towing equipment

900 m / 48 mm

Fire fighting system

2x Fire-fighting pumps:

1x 1.500 m³/h

1x 1.200 m³/h at 18,0 bar delivering water to two water/foam monitors

The monitors and the complete FiFi-plant is computer remote controlled

Two distribution boxes at each side. Effective self-protecting water curtain, capacity 300 m³/h

Tank capacities

Fuel oil: 235 m³

Fresh water: 33,4 m³

Lifting equipment

1x Palfinger crane - SWL 0,7 t at 9,20 m

Navigation equipment

2x X-band radar, Furuno Far-2117

2x GPS navigator, Furuno GP 36 & OP-150

1x Satellite compass, Furuno SC-50

1x Gyro compass system Robertson

1x echo-sounder, Skipper

1x Autopilot system, Robertson

1x AIS system, McMurdo

1x ECDIS Transas Navisailor 4000

Accommodation

3 single and 3 double cabins provide air-conditioned accommodation for 9 persons

Owner

Seacontractors

Gortstraat 36

4331 LC Middelburg

The Netherlands

Renamed

2021 Diamond

Malta, Valletta - Call sign: 9HA4788

Manager: Smit Shipping Singapore Pte. Ltd. - republic of Singapore

2022 Koole 35

Malta, Valletta - Call sign: 9HA4788

Owner: Koole Diamond B.V

Manager: Koole Maritiem B.V./ Koole Holding B.V., Vijfhuizen - the Netherlands

Latest data adjustment

27 March 2023
