Antwerpen 06 January 2020 |
 |
|
| Westerschelde 06/07/20 | |
|
Name |

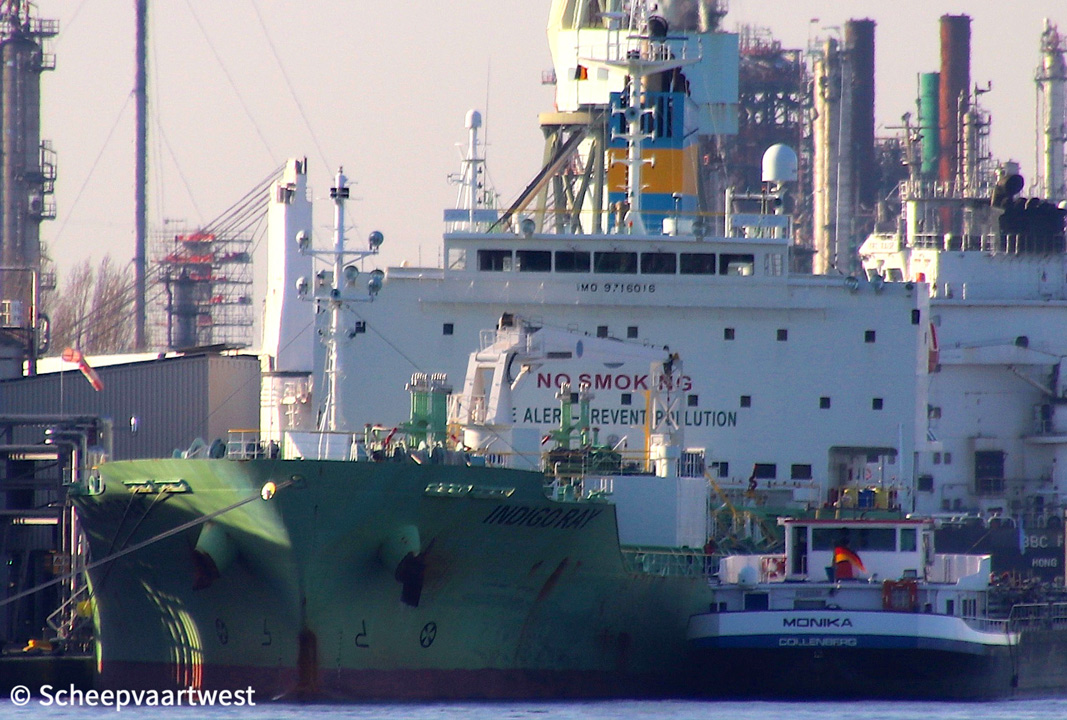

INDIGO RAY |
|
Previous names |
2016 - 07/2019 BW Boron |
|
Type |
Chemical & oil product tanker |
|
IMO-number |
9716016 |
|
Call sign |
D5TH3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2016 - 2019 United Kingdom - Call sign: 2JFN5 |
|
GT |
11.918 t registered |
|
DWT |
Summer: 19.989,24 t |
|
NT |
6.255 t registered |
|
Length |
146,50 m overall |
|
Breadth |
24,00 m moulded |
|
Draught |
Max: 9,72 m |
|
Moulded L x B x D |
138,00 x 24,00 x 13,10 m |
|
Registered L x B x D |
138,44 x 24,00 x 13,10 m |
|
Freeboard |
3.414 mm |
|
Depth |
13,10 m moulder |
|
Speed |
Service: 14,5 knots Max: 16,3 knots |
|
Built |
2016 |
|
Keel laid |
15/07/2015 |
|
Launch date |
20/01/2016 |
|
Date of completion |
21/04/2016 |
|
Builder |
Shitanoe Shipbuilding Co., Ltd. Japan |
|
Yard number |
7060 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Makita 6S40ME-B9 - 2 stroke single acting 6 cylinder 400 x 1.770 mm combustion engine 4.620 kW at 124,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,3 bar Evaporation: 15,95 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 530 kW |
|
Bow thruster |
412 kW |
|
Number of cargo tanks |
18 |
|
Cargo tank capacity |
Liquid: 22.269,75 m³ |
|
Tank capacities |
Fuel oil: 919.98 m³ Fresh water: 375,5 m³ |
|
Manager |
M.T.M. Ship Management Pte. Ltd. 78,Shenton Way, #13-01, Lippo Centre #13-01 Singapore 079120 Republic of Singapore |
|
Previous manager |
Eastern Pacific Shipping Pte. Ltd. - Republic of Singapore |
|
Registered owner |
Fair Wind Navigation SA Mizuho Sangyo Co Ltd, 4-32, Jibori 6-chome Imabari-shi, Ehime-ken, 799-2117 Japan |
|
Previous names & owners |
2016 - 2019 BW Boron - Lemax Ltd. |
|
Latest data adjustment |
29 March 2024 |
