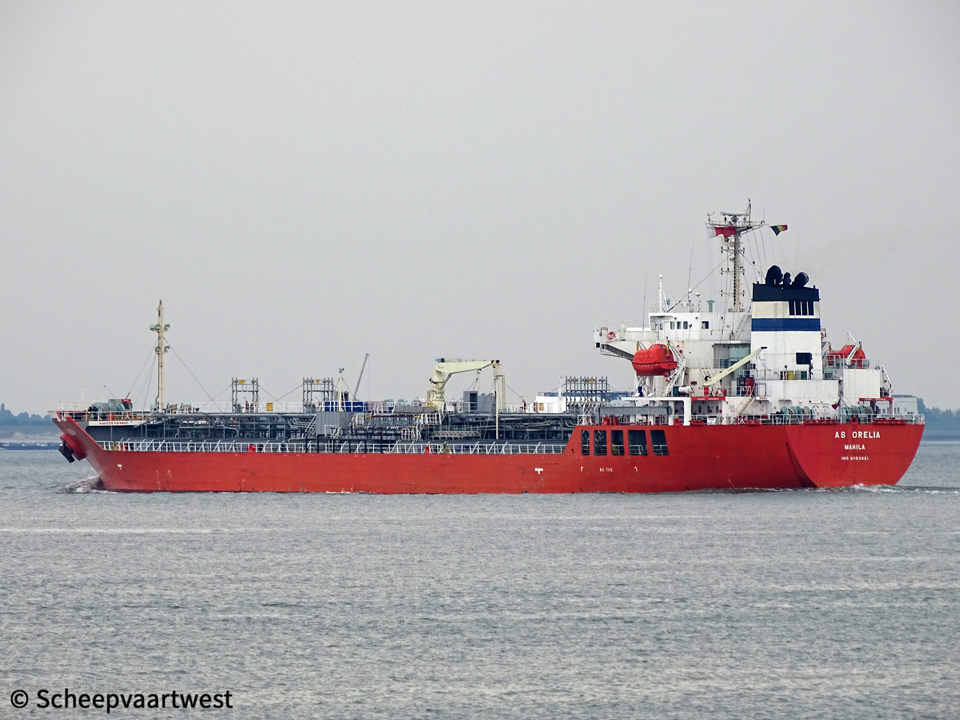

AS Orelia 01

Westerschelde 22 May 2018



Name

AS ORELIA

Previous names

2008 - 01/2011 Bow Orelia

Type

Oil tanker / Chemical tanker

IMO-number

9363821

Call sign

DYTJ

Flag

Philippines

Port of registry

Manila

GT

11.570 t

Suez: 12.223,72 t

DWT

Summer: 19.971,56 t

Winter: 19.394,13 t

NT

6.052 t

Suez: 10.783,72 t

Panama: 9.734 t

Displacement

Summer: 25.192,95 t

Winter: 24.615,49 t

Length

145,53 m overall

137,00 m between perpendiculars

Breadth

23,73 m extreme

Draught

Summer: 9,68 m

Winter: 9,47 m

Keel to masthead

37,24 m

Air draft

Summer deadweight: 27,56 m

Normal ballast: 30,78 m

Lightship: 35,01 m

Freeboard

Summer: 3.704 mm

Winter: 3.910 mm

Depth

13,35 m moulded

Speed

Ballast: 14,0 knots - Economical: 12,50 knots

Laden: 13,5 knots - Economical: 12,00 knots

Built

2008

Date of completion

25/01/2008

Builder

Usuki Shipyard Co.,Ltd.

Usuki

Japan

Yard number

1708

Hull material

Special steel

Hull type

Double hull

Watertight compartments

16

Continuous decks

1

Main engine

1x Hitachi/MAN-B&W - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW/8.356 hp at 136,0 rpm

Build: 01/2007

Builder: Hitachi Zosen Corporation Innoshima Works, Innoshima - Japan

Propellers

1 Screw propeller solid - aft at 136,0 rpm

Boilers

1x CHO Aalborg 161,70 m²

1x CHR Aalborg 151,00 m²

Generators

3x Yanmar main diesel generatorsets each 575 kVA - 460 kW - 680 hp

Emergency generator

1x Diesel generatorset 65 kVA - 52 kW - 82 hp

Bow thruster

1x 830 hp

Number of cargo tanks

20

Total cap. of tanks 98%

22.179 m³

Number of slop tanks

2

Slop tank capacity 98%

1.182,57 m³

Pumps

20x Cargo pumps each 408 m³/h

2x Centrifugal ballast pumps each 300 m³/h

Manifolds

Distance bridge front to centre of manifold: 54,69 m

Bow to centre manifold: 73,43 m

Stern to centre manifold: 72,10 m

Distance between cargo manifold centres: 380 mm

Distance ships rail to manifold: 4.100 mm

Distance manifold to ships side: 4.300 mm

Top of rail to centre of manifold: 770 mm

Distance main deck to centre of manifold: 2.120 mm

Spill tank grating to centre of manifold: 1.430 mm

Tank capacities

Fuel: 1.086,62 m³

Diesel oil: 83,10 m³

Lifting equipment

1x Crane - SWL 5,0 t centre midship

Technical operator

Victoria Ship Management Inc.

19th Flr, Nihonbashi 1-Chome Bldg, 1-4-1

Nihonbashi, Chuo-Ku

Tokyo,103-0027

Japan

Commercial operator

Hansa Tankers AS

Kalfarveien 57A

5022 Bergen

Norway

Registered owner

Sagana Shipping, Inc.

RCM Bldg.,1418 San Marcelino Street,Ermita

Manila

Philippines

Disponent owner

Hansa Tankers AS

Kalfarveien 57A

5022 Bergen

Norway

Latest data adjustment

14 January 2020
