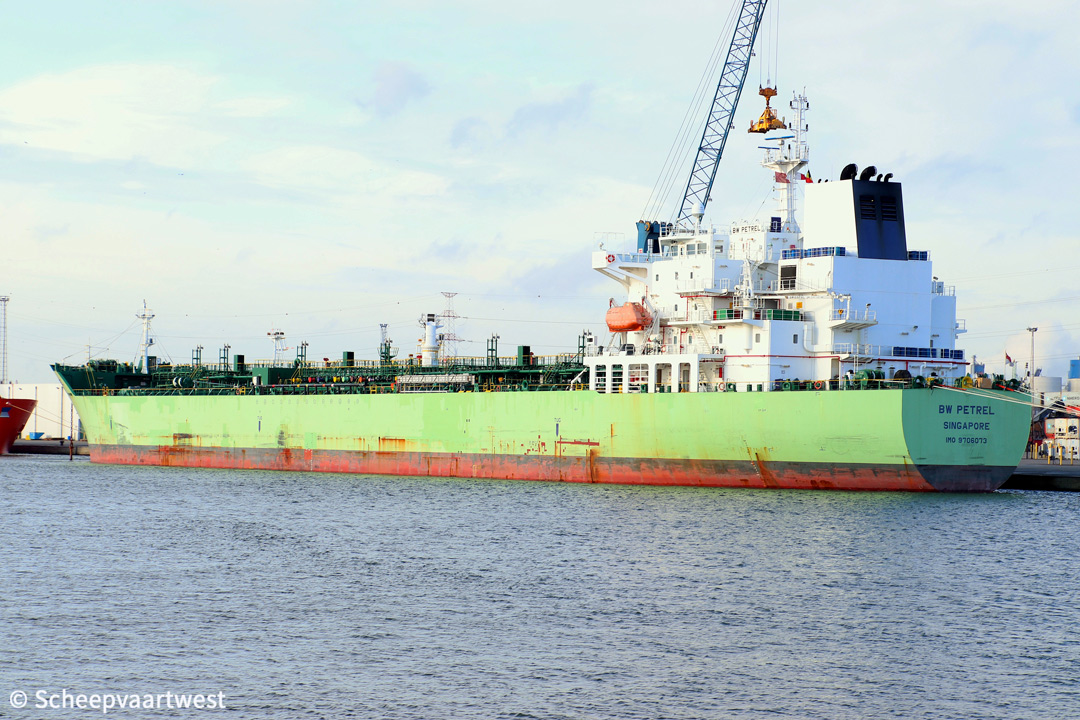

BW Petrel 01

Antwerpen 12 December 2019



Name

BW PETREL

Type

Chemical and oil product tanker

IMO-number

9706073

Call sign

9V2925

Flag

Republic of Singapore

Port of registry

Singapore City

GT

29.751 t

Suez: 31.082,47 t

DWT

Summer: 49.999 t

Winter: 48.550 t

NT

13.775 t

Suez: 26.703,19 t

Panama: 24.777 t

Displacement

Summer: 60.784 t

Winter: 59.335 t

Length

183,06 m overall

174,01 m between perpendiculars

Breadth

32,23 m extreme

Draught

Summer: 13,28 m

Winter: 13,01 m

Keel to masthead

48,60 m

Air draft

Summer deadweight: 35,35 m

Normal ballast: 41,35 m

Lightship: 45,75 m

Freeboard

Summer: 5.850 mm

Winter: 6.120 mm

Depth

19,10 m moulded

Speed

Ballast speed: 12,5 knots - Economic: 11,0 knots

Laden speed: 12,5 knots - Economic: 11,0 knots

Max: 15,0 knots

Built

2016

Keel laid

03/07/2015

Launch date

24/09/2015

Date of completion

04/01/2016

Builder

SPP Shipbuilding Co., Ltd. - Goseong Shipyard

South Korea

Yard number

S1178

Hull material

Steel

Hull type

Double bottom with hopper

Double side with top wing

Main engine

1x MAN-B&W 6S50ME-B9.3 - 6 cylinder combustion engine 7.660 kW

Propellers

1x Fixed pitch mono-block propeller

Boilers

1x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, composite

Builder: Kangrim

Generators

2x Hyundai 5H21/32 main diesel generatorsets each 960 kW

Builder: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Cummins 6CTA-8.3-D(M) diesel generatorset

Number of cargo tanks

12

Total tank capacity 98%

51.727,70 m³

Natural segregation with double valve 98%

Seg#1: 6.149,4 m³ (1P&1S)

Seg#2: 9.070,0 m³ (2P&2S)

Seg#3: 9.440,1 m³ (3P&3S)

Seg#4: 9.437,6 m³ (4P&4S)

Seg#5: 9.385,4 m³ (5P&5S)

Seg#6: 8.245,2 m³ (6P&6S)

Number of slop tanks

2

Slop tank capacity 98%

1.192,40 m³

Pumps

12x Framo Submerged Centrifugal cargo pumps each 600 m³/h

2x Framo Submerged Centrifugal cargo pumps each 300 m³/h

2x Framo submerged centrifugal ballast pumps each 750 m³/h

Manifolds

Distance bridge front to centre of manifold: 57,70 m

Bow to centre manifold:90,40 m

Stern to centre manifold: 92,60 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4,600 m

Top of rail to centre of manifold: 645 mm

Distance main deck to centre of manifold: 2.100

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel il: 1.113,1 m³

Gas oil: 408,90 m³

Ballast: 32.020,7 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Lifting equipment

1x Crane - SWL 10,0 t

Manager

BW Fleet Management Pte. Ltd.

Technical operator

Bw Fleet Management Pte. Ltd.

10 Pasir Panjang Road, #18-01 Mapletree Business City, Singapore 117438

Republic of Singapore

Commercial operator

Hafnia Pools Pte. Ltd.

10 Pasir Panjang Road, #18-01 Mapletree Business City, Singapore 117438

Republic of Singapore

Registered owner

BW Clearwater Pte. Ltd.

10 Pasir Panjang Rd., #18-01 Mapletree Businesss City Singapore 117438

Republic of Singapore

Disponent owner

Hafnia Pools Pte. Ltd.

10 Pasir Panjang Road, #18-01 Mapletree Business City, Singapore 117438

Republic of Singapore

Latest data adjustment

02 February 2020
