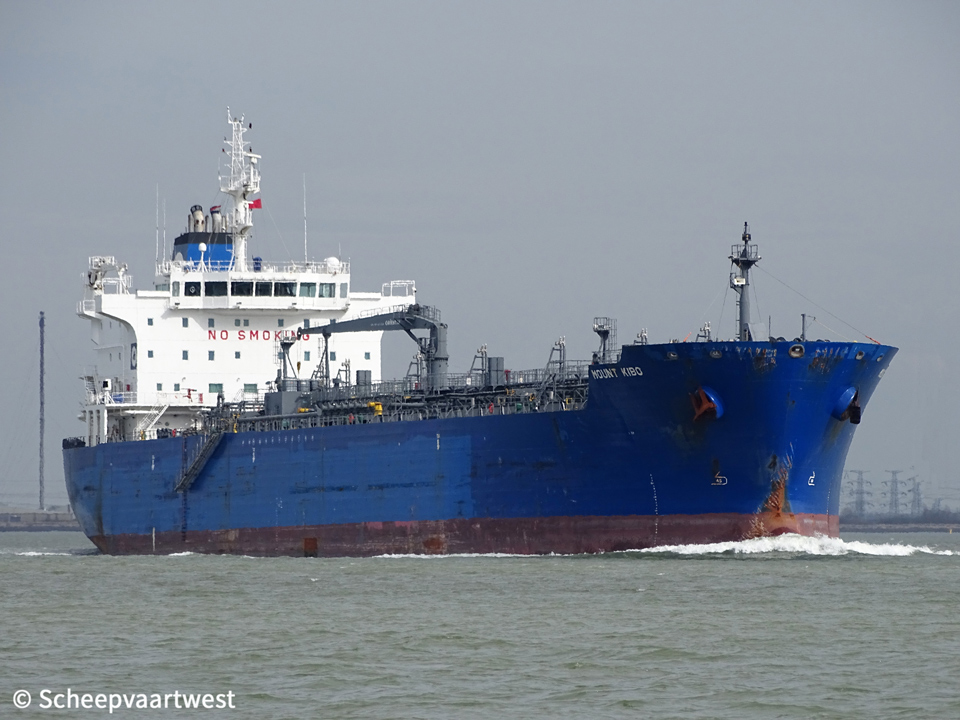

Mount Kibo 01

Westerschelde 30 March 2018

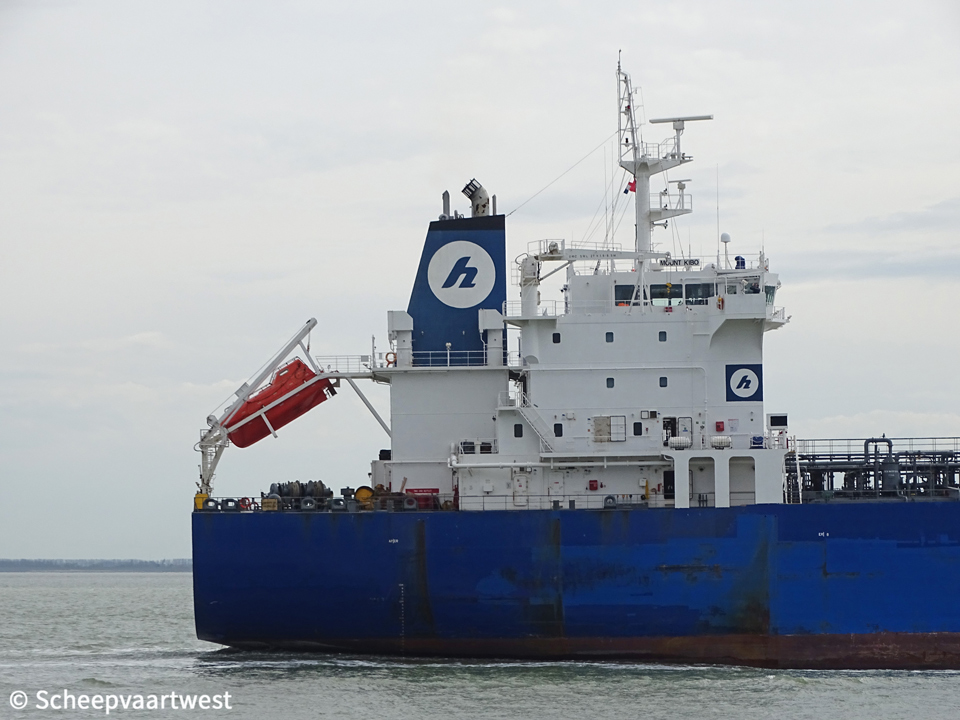

Mount Kibo 02
Westerschelde 30/03/18













Name

MOUNT KIBO

Type

Tanker for oil and chemicals - Handysize

IMO-number

9470997

Call sign

A8UM8

Flag

Liberia

Port of registry

Monrovia

GT

23.3013 t

DWT

Summer: 37.817 t

Winter: 36.732 t

Length

184,32 m overall

176,00 m between perpendiculars

Breadth

27,44 m

Draught

Summer: 11,52 m

Winter: 11,28 m

Depth

17,20 m

Speed

Max: 16,8 knots

15,0 knots fully laden

15,9 knots in ballast

Built

2010

Keel laid

29/10/2007

Date of completion

12/03/2010

Builder

Hyundai Mipo Dockyard

Ulsan

South Korea

Yard number

4045

Hull material

Steel

Hull type

Double hull

Watertight compartments

17

Continuous decks

1

Main engine

1x Hyundai/B&W type 6S46MC-C - 6cylinder combustion engine 7.860 kW / 10.686 bhp

Propellers

1x Mono-block fixed pitch propeller

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Boilers

1x Auxiliary boiler, vertical shell type - Mission OL

Builder: Alfa Laval Aalborg A/S

1x Auxiliary boiler, composite

Builder: Kangrim

Generators

3x Yanmar 5H21/32 main diesel generatorsets each 960 kW

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Doosan Infracore 120 kW

Number of cargo tanks

12

Cargo tank capacity

40.847 m³

Number of slop tanks

2

Slop tank capacity

1.055 m³

Pumps

10 x Framo Deepwell cargo pumps each 500 m³/h

2x Framo Deepwell cargo pumps each 300 m³/h

2x Framo Deepwell cargo pumps each 200 m³/h

2x ballast pumps each 750 m³/h

Tank capacities

Ballast: 18.108 m³

Fuel oil: 900 t

Anchor equipment

Length: 605,00 m

Diameter: 66 mm

Lifting equipment

1x Deck crane - SWL 10,0 t

1x provision crane - SWL 2,0 t

Crew size

28

Manager

DTM - Donnelly Tanker Management Ltd.

32 Miltonos Street

CY-4006 Limassol

Cyprus

Operator

Hartmann AG

Leer

Federal Republic of Germany

Owner

Frisia Dusseldorf Shipping Co Ltd.

80 Broad Street

Monrovia

Liberia

Registered owner

Container-Schiffahrt Gmbh & Co MS "FRISIA DUSSELDORF"

Latest data adjustment

04 December 2019
