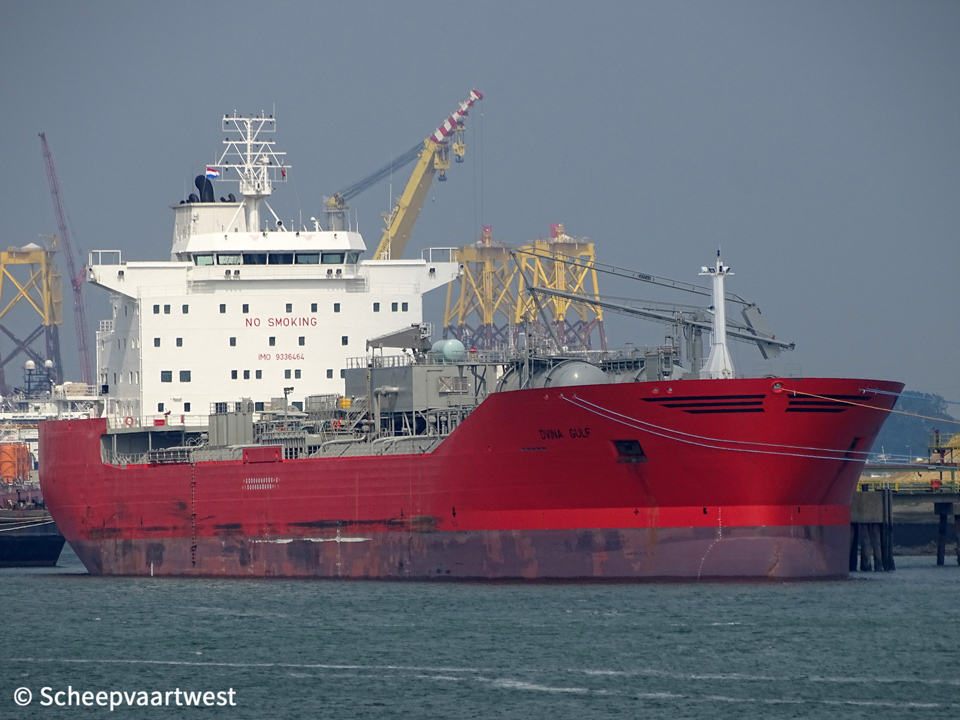

Dvina Gulf 01

Vlissingen, The Netherlands 24 May 2018



Name

DVINA GULF

Type

Tanker for chemicals and oil products

IMO-number

9336464

Call sign

3FZN9

Flag

Republic of panama

Port of registry

Panama City

Previous flags

2017 - 2018 Belize, Belize city - Call sign: V3MY4

2018 - 2019 China

2019 - 2019 Belize, Belize city - Call sign: V3MY4

GT

30.906 t

DWT

Summer: 45.695,4 t

NT

12.970 t

Length

182,72 m overall

175,22 m between perpendiculars

Breadth

32,23 m extreme

Draught

Max: 12,52 m

Depth

18,35 m

Speed

Max: 14,0 knots

Built

2017

Keel laid

13/12/2005

Date of completion

03/11/2017

Builder casco

JSC "PO "Sevmash"
Severodvinsk
Russia

Yard number: 98087

Builder completion

Hrvatska Brodogradnja Trogir d.o.o.
Trogir
Croatia

Yard number: 329

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x HHI/MAN-B&W 6S60MC Mk. VI - 2 stroke single acting 6 cylinder600 x 2.292 mm combustion engine 10.582 kW / 14.582 hp at 1050 rpm

Manufacturer: Hyundai Heavy Industries Co Ltd - South Korea

Propellers

1x Controllable pitch propeller - aft at 105,0 rpm

Boilers

1x Auxiliary boiler, exhaust gas heated - Mission XW

Manufacturer: Aalborg Industries AS

2x Auxiliary boiler, oil/gas fired - Mission OM

Manufacturer: Alfa Laval Aalborg A/S

Shaft generator

1x 1.500 kW

Generators

2x MAN 6L28/32H - 4 stroke 6 cylinder 280 x 320 combustion engine each 1.260 kW coupled with 2 generators 1.200 kW

450/230 Volt - 60 Hz

Emergency generator

1x Scania DI9 diesel generatorset

Manufacturer: Scania CV AB, Industrial & Marine Engines

Bow thruster

1x Controllable pitch thruster - 1.000 kW / 1.359 bhp, forward

Cargo tank capacity 98%

51.960 m³

Number of pumps

18x Cargo pumps each 600 m³

2x Cargo pumps each 300 m³

2x Cargo pumps each 100 m³

Tank capacities

Ballast: 19.950 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 m

Crew size

23

Manager

Marlow Navigation India Pvt. Ltd.
Sunrise Tower, 7th floor, Plot No. C-10, Central Road, MIDC Andheri (E)
Mumbai, Maharashtra 400093
India

Registered owner

Viterlef Management Ltd.

Latest data adjustment

20 November 2019
