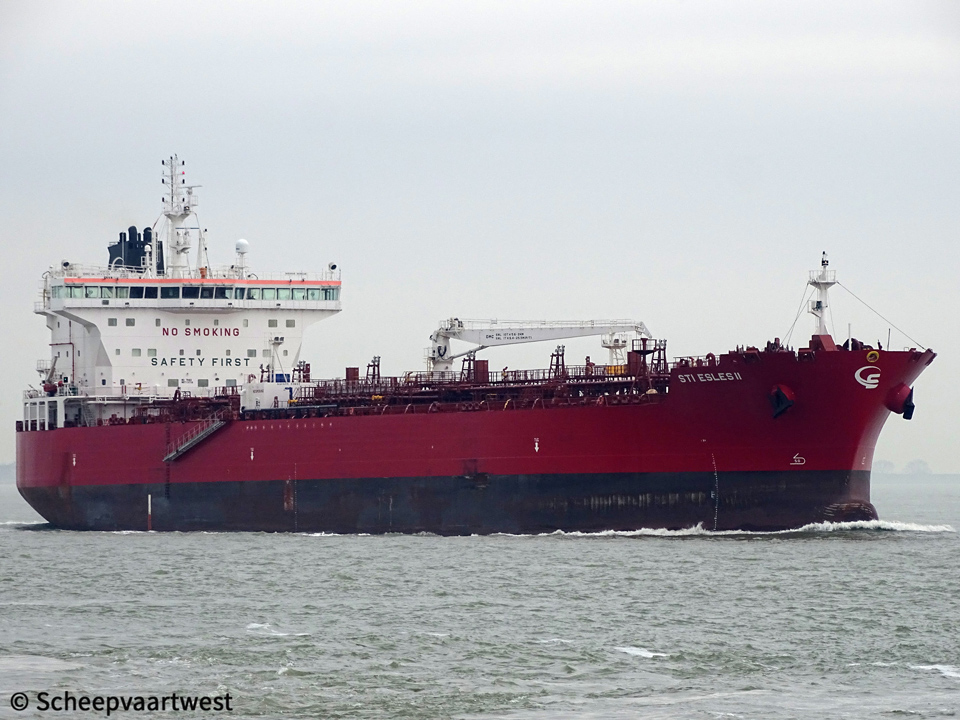

STI Esles II 01

Westerschelde 21 February 2019

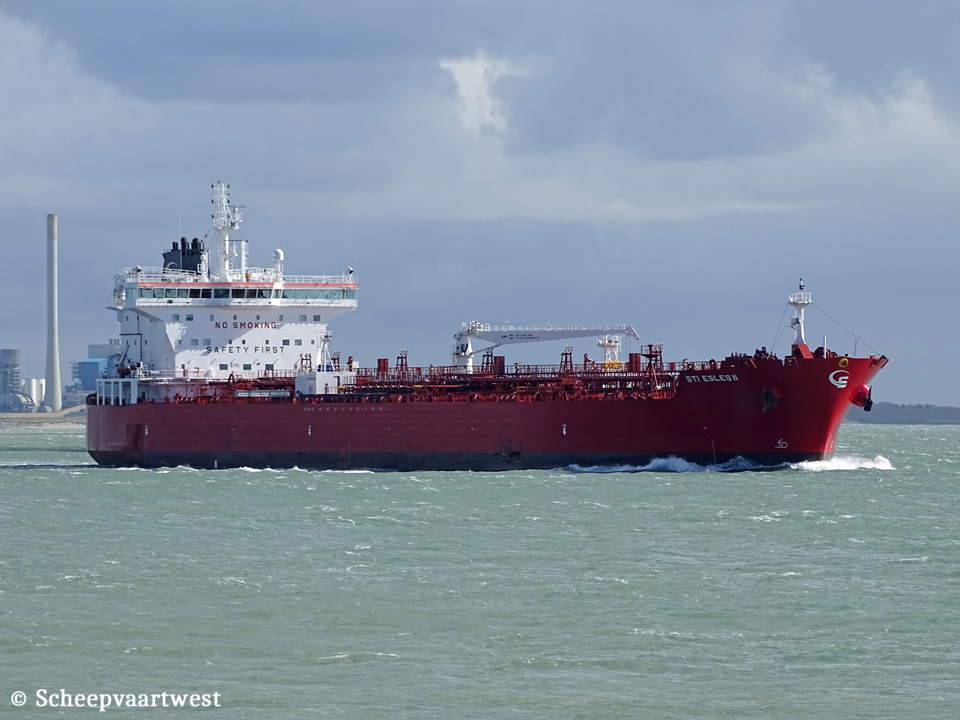

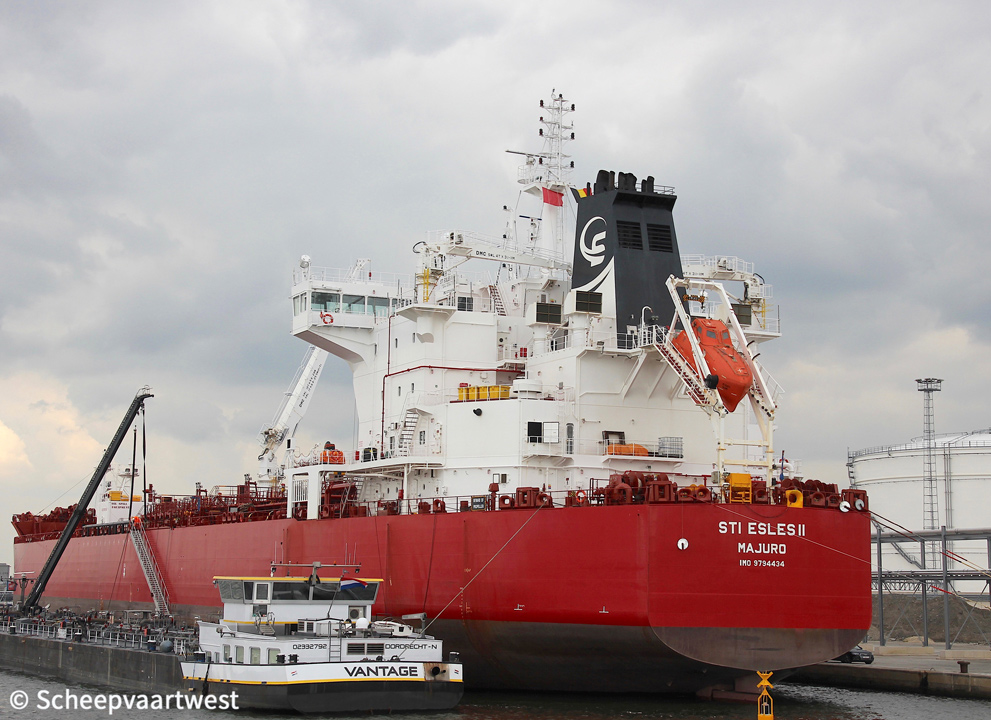

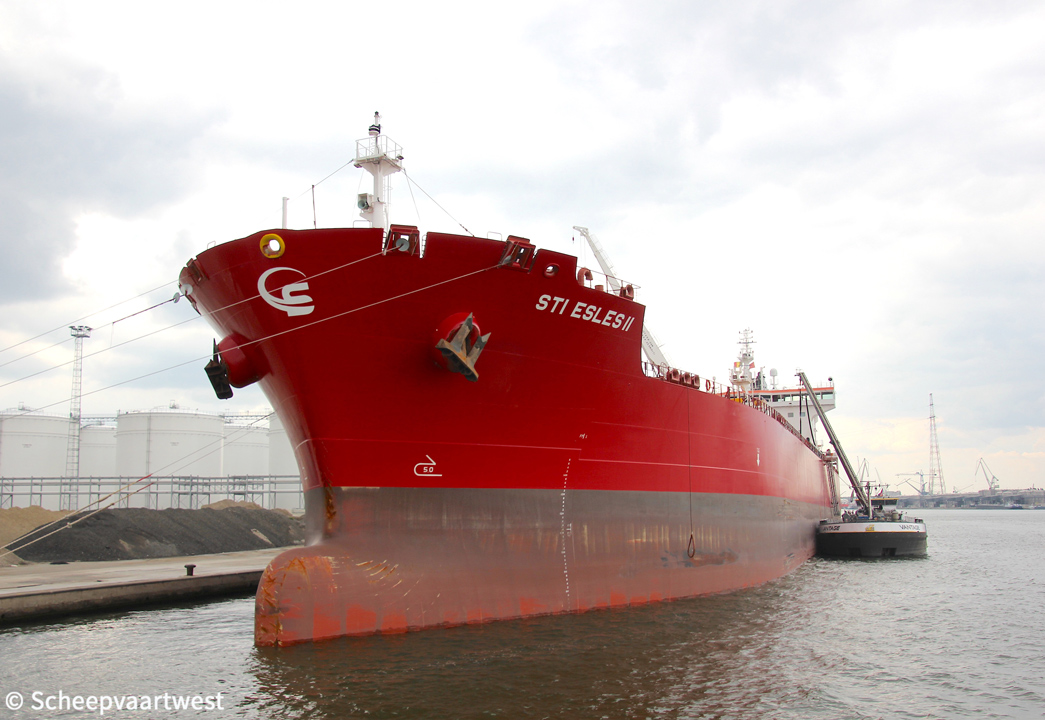

STI Esles II 03   STI Esles II 02   STI Esles II IMO 9794434 04
Antwerpen 07/02/19 Antwerpen 07/02/19 Westerschelde 17/03/19


Name

STI ESLES II

Type

Chemical and oil product tanker

IMO-number

9794434

Call sign

V7VF8

Flag

Marshall islands

Port of registry

Majuro

GT

28.804 t registered

Suez: 31.516,62 t

DWT

51.260 t

NT

13.718 t registered

Panama: 24.748 t

Suez: 27.334,96 t

Length

183,35 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Max: 13,11 m

Freeboard

6.022 mm

Depth

19,10 m moulded

Built

2018

Keel laid

01/12/2015

Launch date

18/10/2017

Delivery date

04/01/2018

Builder

Hyundai Mipo Dockyard Co., Ltd.

South Korea

Yard number

2607

Hull material

Ordinary strength steel

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 4

Oil tight: 8

Main engine

1x HHI/MAN-B&W 6S50ME-B9.5 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 9.230 kW at 101,3 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Composite boiler - 9,0 bar

1x Auxiliary boiler - 8,83 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 800 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

15

Cargo tank capacity 100%

55.539,2 m³

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 8

Waste water: 4

Fresh water: 4

Diesel oil: 3

Sludge: 2

Chain: 2

Gasoline: 1

Tank capacities 100%

Diesel oil: 233,7 m³

Fresh water: 429,7 m³

Fuel oil: 1.469,3 m³

Lube oil: 108,6 m³

Tank ballast: 22.261,2 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane port - SWL 4,0 t

1x Provision crane Stbd - SWL 4,0 t

Manager

Scorpio Commercial Management (India) Private Limited

Scorpio House, Central Avenue

Hiranandani Business Park, Powa

Mumbai, 400 076

India

Registered owner

SPDBFL No One One Five (Shanghai) Ship Leasing Co., Ltd.

China

Latest data adjustment

23 May 2022
