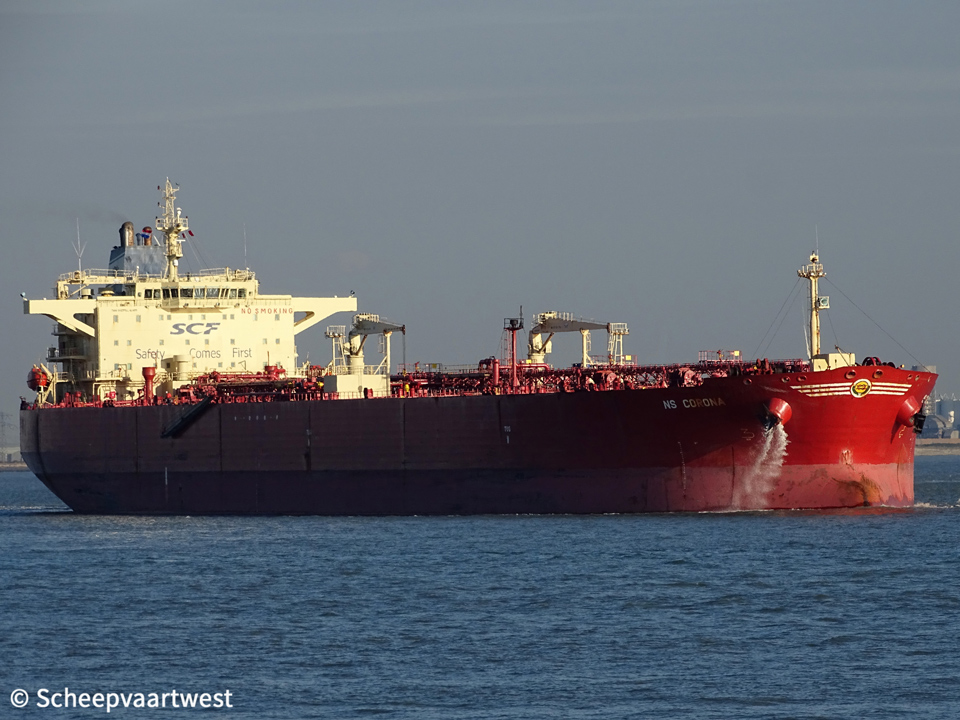

NS Corona 01

Westerschelde 20 February 2019

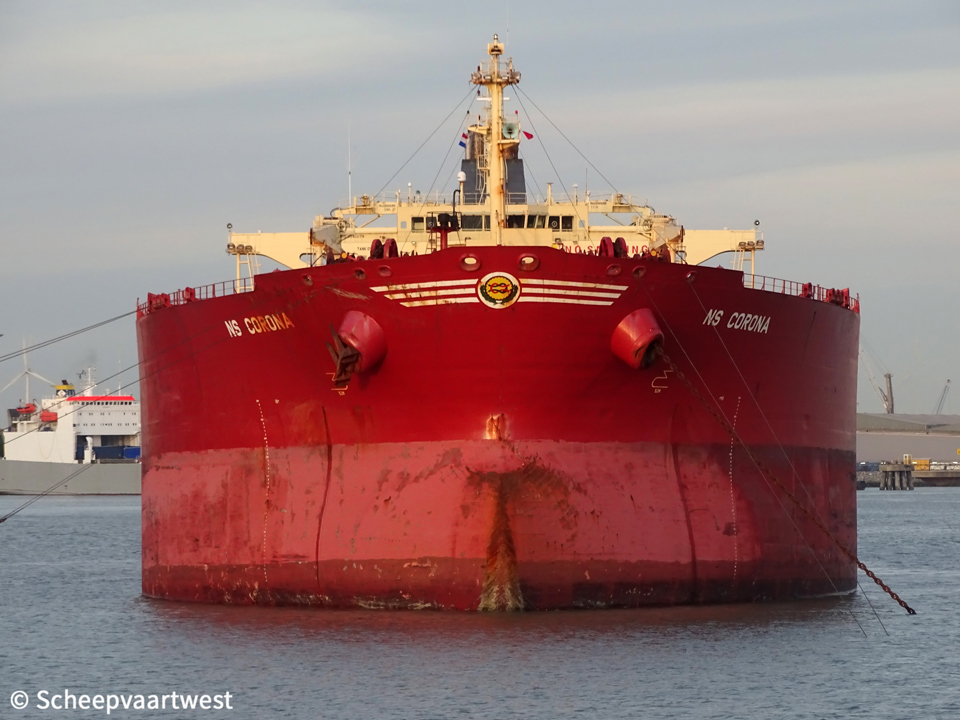

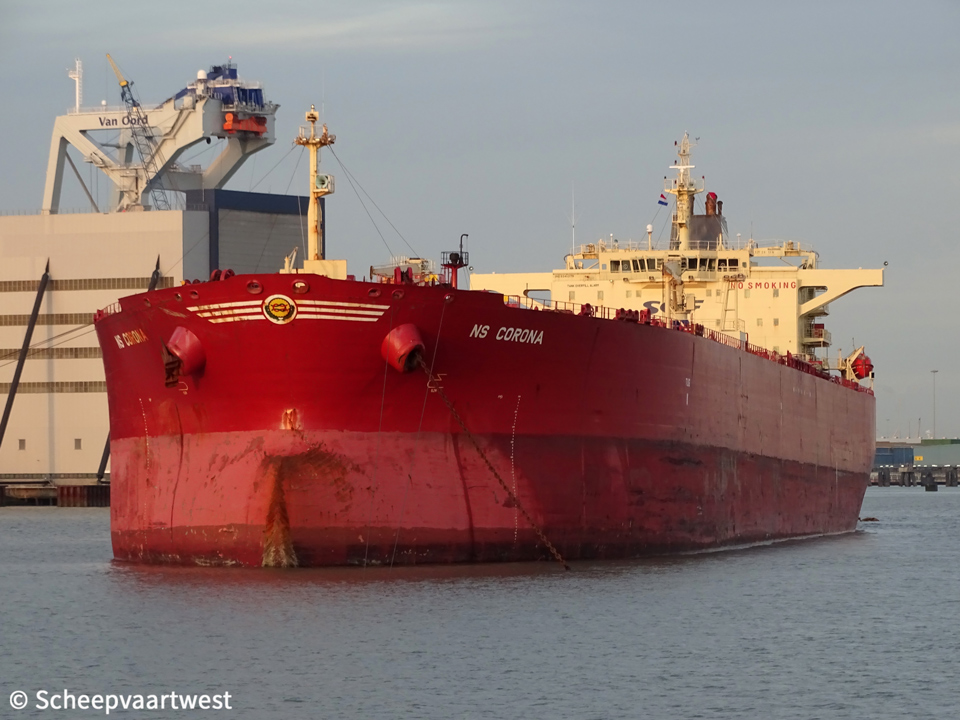

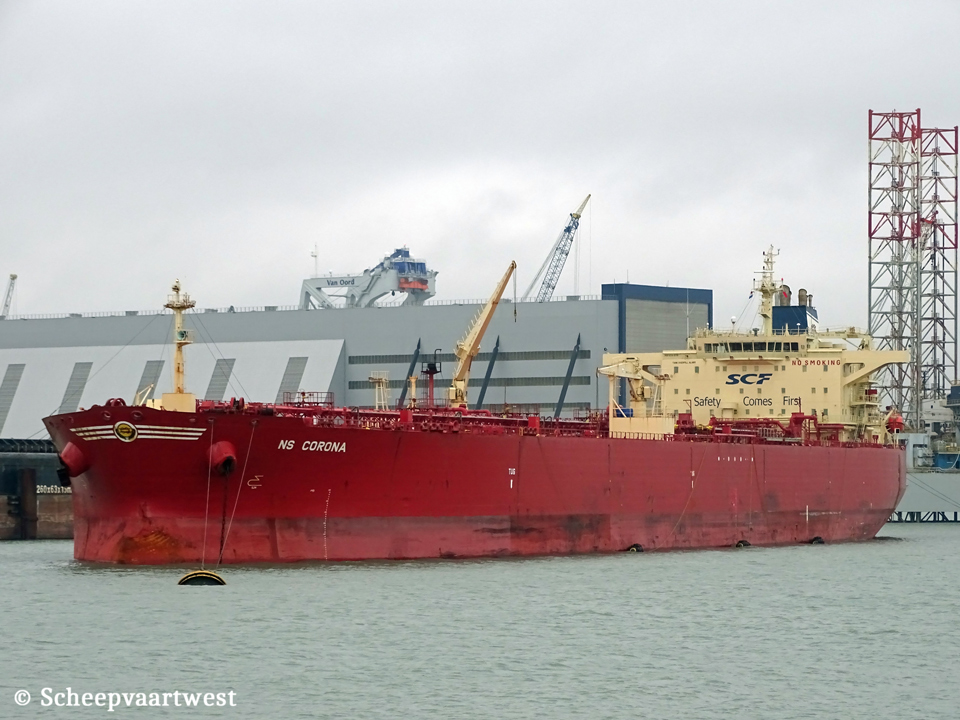

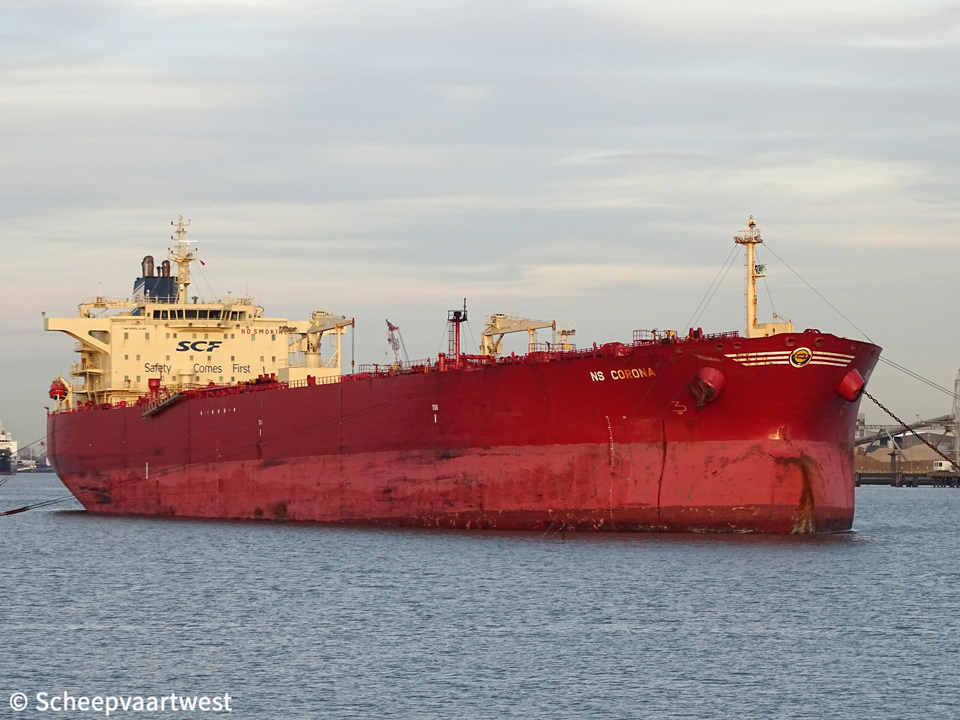

NS Corona 02   NS Corona 04   NS Corona 03   NS Corona IMO 9341079 05
Vlissingen 12/02/19 Vlissingen 12/02/19 Vlissingen 12/02/19 Vlissingen 06/12/18


Name

NS CORONA

Type

Crude oil tanker - Aframax

IMO-number

9341079

Call sign

A8GW5

Flag

Liberia

Port of registry

Monrovia

GT

57.248 t registered

DWT

Summer: 110.066,1 t

NT

32.797 t registered

Displacement

122.957 t

Length

243,97 m overall

234,00 m between perpendiculars

Breadth

42,03 m extreme

Draught

Max: 15,38 m

Keel to mast end

49,70 m

Freeboard

Summer: 6.080 mm

Winter: 6.430 mm

Depth

21,00 m

Speed

14,6 knots

Built

2006

Keel laid

20/12/2004

Launch date

03/12/2005

Date of completion

07/02/2006

Builder

Hyundai Heavy Ind. Co. Ltd.

Ulsan

South Korea

Yard number

1797

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 9

Longitudinal: 3

Continuous decks

1

Main engine

1x MAN-B&W/HHI 6S60MC - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 10.194 kW / 13.960 hp at 97,0 rpm

Propellers

1x Fixed pitch mono-block propeller

Boilers

1x Auxiliary boiler, exhaust gas heated (Economizer) - AV-6N

2x Auxiliary boiler, oil/gas fired - Mission OL

Manufacturer: Aalborg Industries A/S

Generators

3x Hyundai 5H21/32 diesel generatorsets each 660 kW

Emergency generator

1x Cummins diesel generatorset

Number of cargo tanks

14

Cargo tank capacity

123.326 m³

Number of pumps

3x cargo pumps each 3.000 m³/h

Tank capacities

Ballast: 37.773,5 m³

Anchor equipment

Length: 715,00 m

Diameter: 87 mm

ISM & commercial manager

SCF Management Services Dubai Ltd.

Office OT 17-32, 17th Floor, Office Tower, Central Park Towers, Dubai International Financial Centre

Dubai

United Arab Emirates

Registered owner

Waterways Tankers Inc.

Care Of SCF Novoship JSC (Novorossiysk Shipping Co)

Ul Svobody 1, Novorossiysk

Krasnodarskiy Kray, 353900

Russia

Latest data adjustment

02 November 2021
