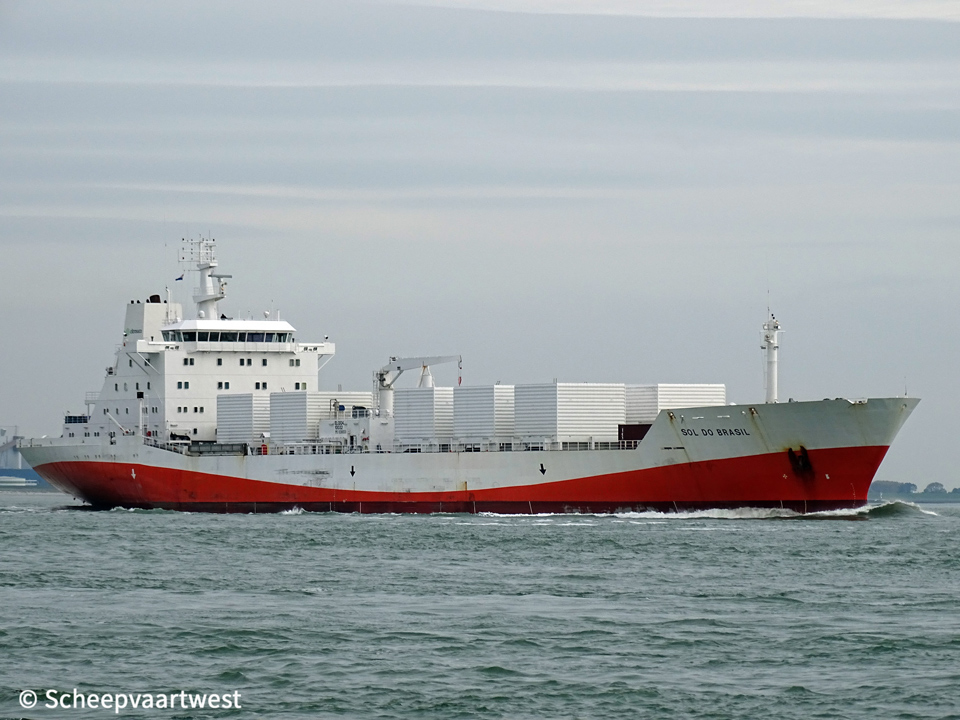

Sol Do Brasil 01

Westerschelde 24 October 2015

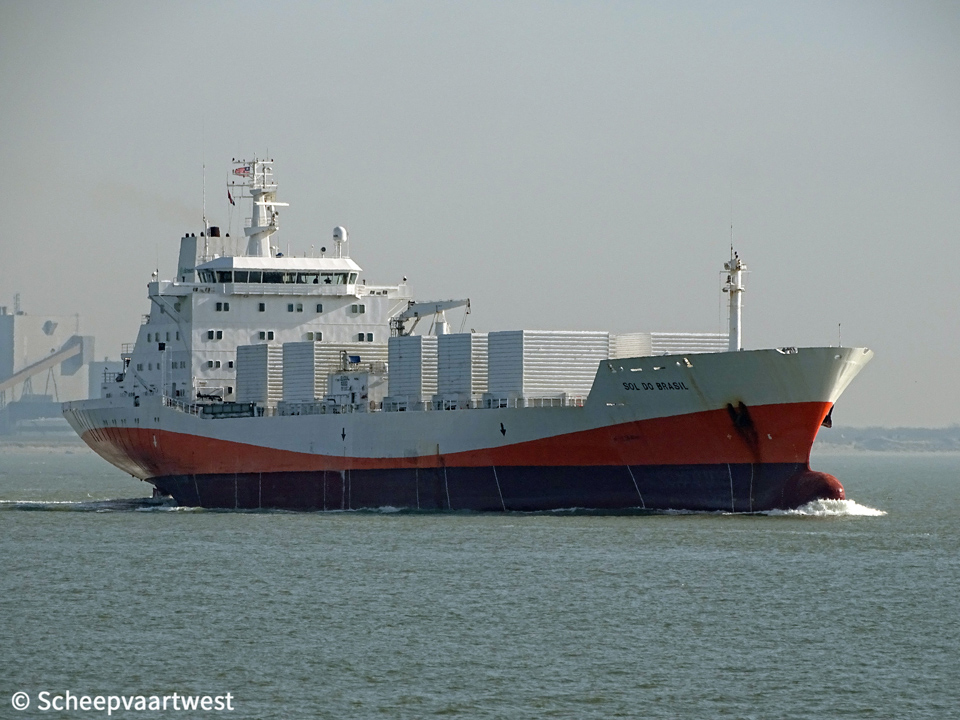

Sol Do Brasil 02
Westerschelde 17/02/19


Name

SOL DO BRASIL

Type

Fruit juice carrier - Equipped for carriage of containers

IMO-number

9018658

Call sign

ELQQ4

Flag

Liberia

Port of registry

Monrovia

GT

15.218 t

DWT

Summer: 19.463 t

NT

4.566 t

Number of 20ft containers

240

Length

172,00 m overall

160,60 m between perpendiculars

161,50 m registered

Breadth

26,00 m extreme

Draught

Max: 9,50 m

Forecastle

19,70 m

Freeboard

5.015 mm

Depth

14,50 m to main deck

Speed

Max: 18,0 knots

Built

1994

Keel laid

08/11/1993

Launch date

03/06/1994

Date of completion

01/11/1994

Builder

Kvarner Kleven Florö AS
Florö
Norway

Yard number

253

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x Sulzer 6RTA62 - 2 stroke 6 cylinder 620 x 2.150 mm combustion engine 10.800 kW / 14.684 hp at 105,0 rpm

Manufacturer: Zaklady Przemyslu Metalowego "H. Cegielski", Poznan - Poland

Propellers

1x Controllable pitch propeller - aft

Boilers

1x Steam boiler oil fired - 9,0 bar

Heating surface: 20,0 m²

Year of manufacture: 1996

Manufacturer: Aalborg Marine Boilers
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

1x Steam boiler exhaust gas heater - 8,0 bar

Heating surface: 250,0 m²

Year of manufacture: 2010

Manufacturer: Anders Halvorsen AS
Flekkefjord
Norway

Electric installations

3x Plants each 440/220 V - 937 kVA

1x Plant 440 V - 1.580 kVA

1x Plant 440 V - 156 kVA

Shaft generator

1x 1.580 kVA

Generators

3x Mitsubishi S6U-MPTA diesel engines each 735 kW at 900 rpm coupled with 3 generators 937 kVA 440/220 Volt, 60 Hz

Emergency generator

1x Diesel generatorset 156 kVA

Compressed air receivers

2x Receivers each 4.100 litres - 30,0 bar

1x Receiver 500 litres - 30,0 bar

1x Receiver 2.000 litres - 10,0 bar

1x Receiver 1.000 litres - 10,0 bar

Bow thruster

1x Transverse thruster ULSTEIN - 736 kW, forward

Number of cargo tanks

16

Cargo hold capacity

12.800 m³

Refrigerating

Temperature of insulated spaces, min.: -15°C

Temperature of sea water, max.: 32°C

Total capacity of holds: 15.260 m³

Number of holds: 4

Number of insulated holds: 4

Number of separate cooled holds: 4

Maker of refrigerating machinery: Sabroe Refrigeration A/S Marine Division
Christian X's Vej 201
8270 Hoejbjerg
Kingdom of Denmark

Tank capacities

Water ballast: 7.248 m³

Anchor equipment

3x Anchors weight each 6.000 kg

Length: 577,50 m

Diameter: 60 mm

Manager

Exmar Shipmanagement NV
De Gerlachekaai 20
2000 Antwerpen
Belgium

Registered owner

Esplanade Shipping Corp.
Monrovia

Latest data adjustment

15 April 2019
