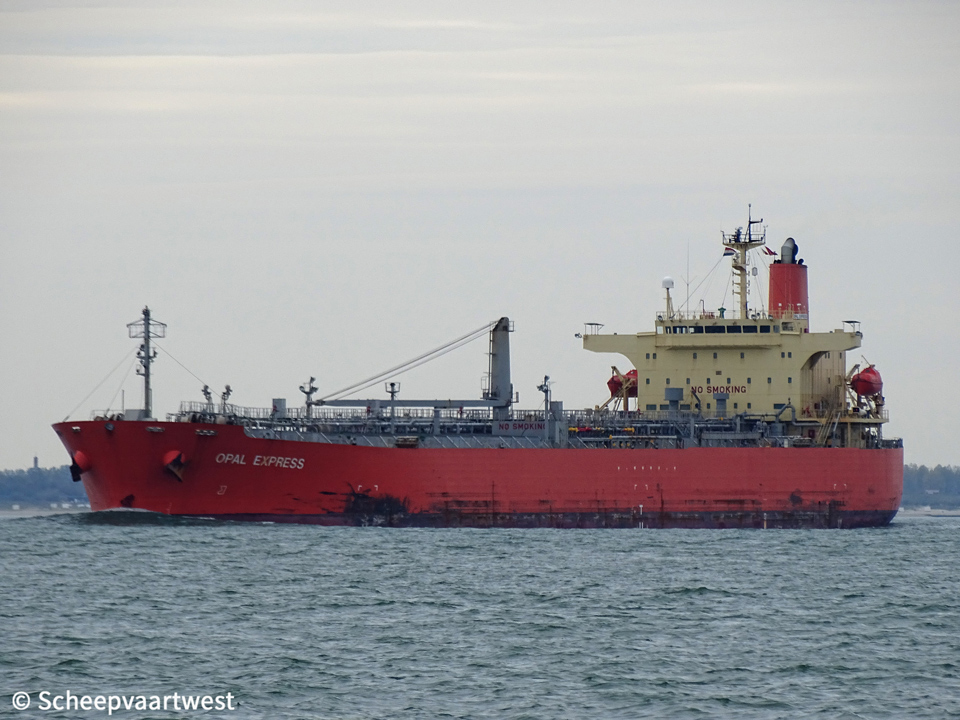

Opal Express 01

Westerschelde 24 October 2015

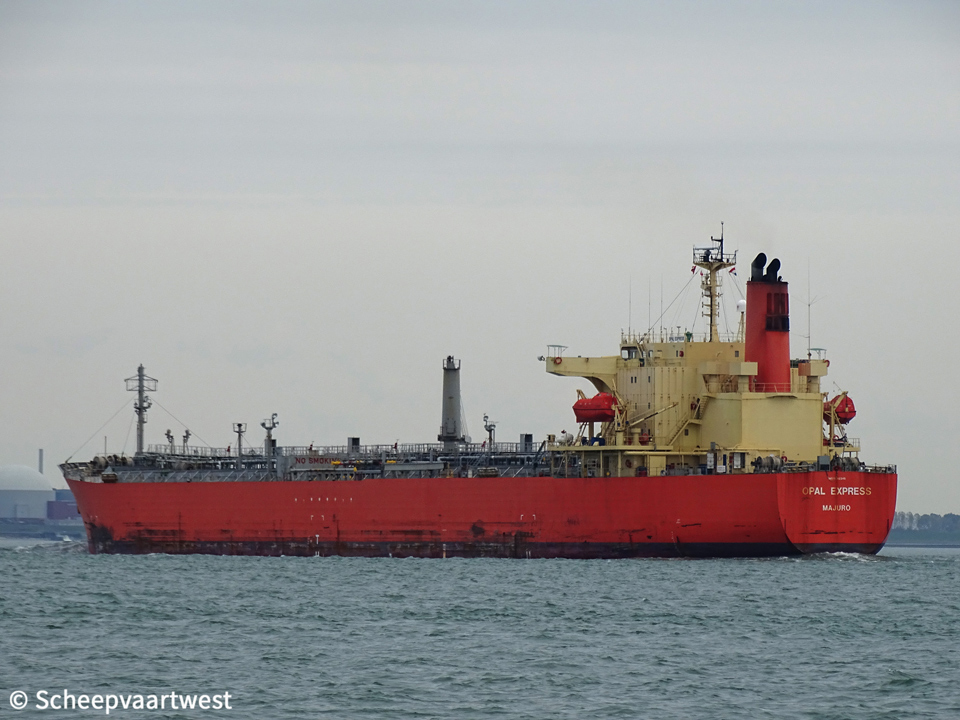

Opal Express 02
Westerschelde 24/10/15



Name

OPAL EXPRESS

Type

Chemical and oil product tanker

IMO-number

9292345

Call sign

V7KB8

Flag

Marshall islands

Port of registry

Majuro

GT

28.844

DWT

Summer: 48.635

Length

199,99 m overall

173,00 m between perpendiculars

Breadth

30,20 m

Draught

Max: 12,62 m

Freeboard

6.463 mm

Depth

19,05 m

Speed

14,8 knots

Built

2006

Keel laid

06/08/2004

Date of completion

30/05/2006

Builder

Iwagi Zosen Co., Ltd.
Kamijima
Japan

Yard number

236

Hull material

Ordinary strength steel

Hull type

Double hull

Bulkheads

Oil tight: 11

Main engine

1x Mitsui 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.674 mm combustion engine 9.840 kW / 14.831 bhp at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Propellers

1

Boilers

1x Composite auxiliary boiler - 16,0 bar
Manufacturer: Mitsubishi Marine Boiler

Generators

3x Main diesel generatorsets each 500 kW

Manufacturer: Nishishiba Electric Co. Ltd.

Number of cargo tanks

18

Cargo tank capacity

Liquid: 57.087,17 m³

Number of tanks

Ballast: 15

Fuel oil: 5

Fresh water: 3

Chain: 2

Diesel oil: 2

Sludge: 2

Lubricating oil: 2

Waste water: 1

Potable water: 1

Tank capacities 100%

Diesel oil: 243,11 m³

Fresh water: 533,82 m³

Fuel oil: 2.219,17m³

Lube oil: 21,83 m³

Tank ballast capacity: 19.206,09 m³

Lifting equipment

1x General use crane - SWL 2,0 t

1x General use crane - SWL 0,9 t

1x Hose handling crane - SWL 10,0 t

Manager

MOL Tankship Management (Asia) Ltd.
5 Shenton Way #17-02/03 Uic Building
Singapore City, 068808
Republic of Singapore

Operator

Mitsui OSK Lines Ltd.

Registered owner

Paean Shipping SA

Latest data adjustment

14 April 2019
