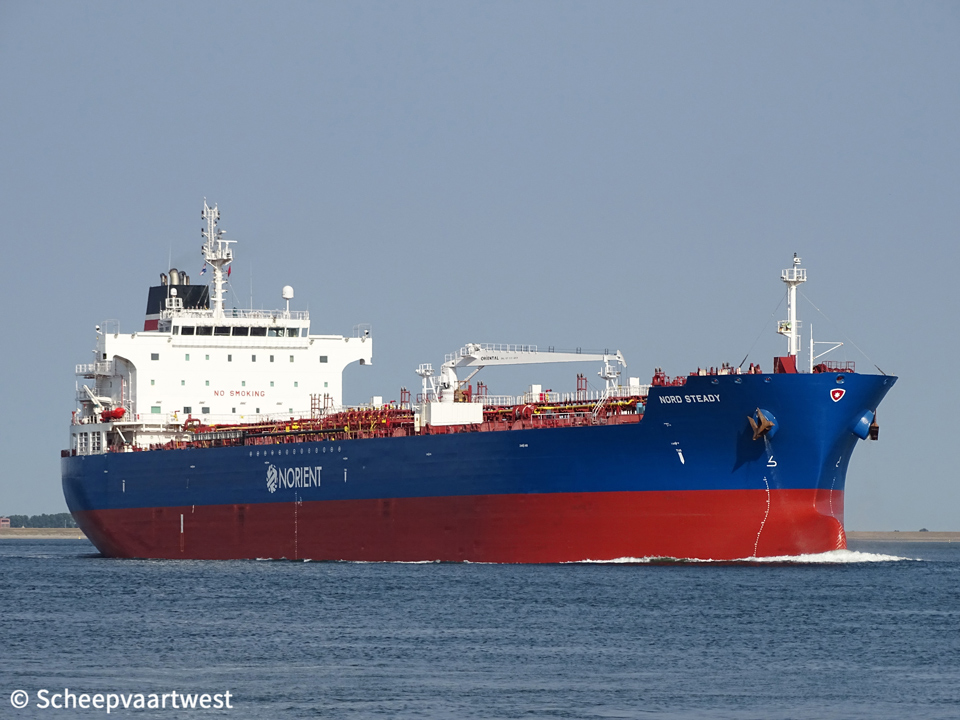

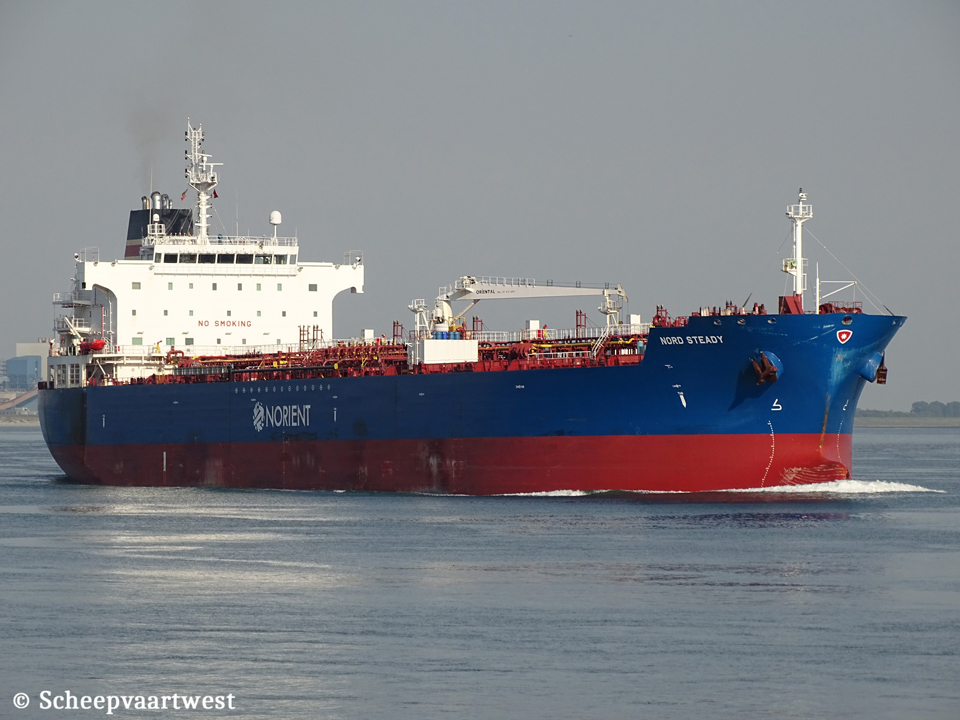

Nord Steady 01

Westerschelde 19 July 2018



Name

NORD STEADY

Type

Tanker for oil and chemicals

IMO-number

9629706

Call sign

S6ME7

Flag

Republic of Singapore

Port of registry

Singapore City

GT

29.983 t

Suez: 31,302,36 t

DWT

Summer: 49.998,5 t

Winter: 42.943 t

NT

13.397 t

Suez: 26.532,33 t

Panama: 24.886 t

Displacement

Summer: 60.696 t

Winter: 58.542 t

Length

183,00 m overall

173,90 m between perpendiculars

Breadth

32,20 m extreme

Draught

Summer: 13,04 m

Winter: 12,79 m

Keel to masthead

48,61 m

Air draft

Summer deadweight: 35,57 m

Normal ballast: 40,16 m

Lightship: 45,83 m

Freeboard

Summer: 6.060 mm

Winter: 6.360 mm

Depth

19,10 m moulded

Speed

15,0 knots ballast

14,5 knots laden

Built

2013

Keel laid

22/12/2011

Launch date

21/01/2013

Date of completion

13/06/2013

Builder

STX Offshore & Shipbuilding Co., Ltd.

Yard number

S-1537

Hull material

Steel

Hull type

Double hull

Main engine

1x STX/MAN-B&W 6S50ME-C8 - 6 cylinder combustion engine 7.570 kW

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, composite (Composite boiler)

1x Auxiliary boiler, oil/gas fired

Generators

3x STX/MAN-B&W 6L23/30H main diesel generatorsets each 900 kW

Number of cargo tanks

14

Total tank capacity 98%: 52.221,28 m³

Natural segregation with double valve 98%

Seg#1: 6.257,30 m³ (COT No 1 P/S 98%)
Seg#2: 9.278,20 m³ (COT No 2 P/S 98%)
Seg#3: 9.452,80 m³ (COT No 3 P/S 98%)
Seg#4: 9.452,80 m³ (COT No 4 P/S 98%)
Seg#5: 9.442,80 m³ (COT No 5 P/S 98%)
Seg#6: 8.313,60 m³ (COT No 6 P/S 98%)
Seg#7: 1.417,40 m³ (SLOP tank P/S 98%)

Number of slop tanks

2

Slop tank capacity 98%

1.417,4 m³

Pumps

2x Marflex MBDP-300 deepwell centrifugal pumps each 750 m³/h
12x Marflex MDPC-200 deepwell centrifugal cargo pumps each 600 m³/h

2x Deepwell centrifugal cargo pumps each 300 m³/h

1x Centrifugal cargo pump 150 m³/h

Manifolds

Distance bridge front to centre of manifold: 57,40 m

Bow to centre manifold: 90,60 m

Stern to centre manifold: 95,40 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.400 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 750 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.166,1 m³

Diesel oil: 79,50 m³

Gas oil: 166,7 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Lifting equipment

1x Crane - SWL 10,0 t

Technical operator

Dampskibsselskabet Norden A/S
Strandvejen 52
2900 Hellerup
Denmark

Commerical operator

Norient Product Poll ApS
Strandvejen 52
2900 Hellerup
Denmark

Registered owner

Norden Shipping Singapore Pte Ltd.
6 Temasek Boulevard, #27-05 Suntec Tower Four
Singapore 03898
Republic of Singapore

Disponent owner

Union Glory Limited
Portland House 69-71 Wembly Hill Road
Wembley HA9 8BU Middlesex
United Kingdom

Latest data adjustment

20 March 2019
