Name
|

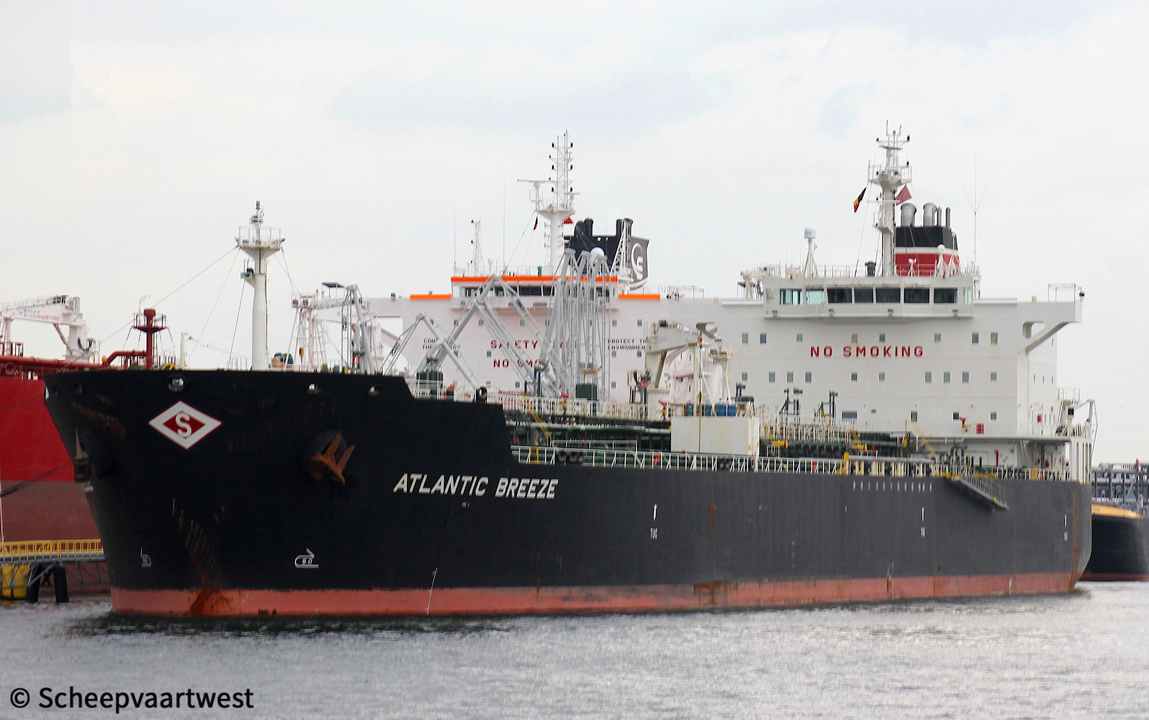

ATLANTIC BREEZE
|
|
Type
|
Tanker for oil and chemicals
|
|
IMO-number
|
9360336
|
|
Call sign
|
VRDC6
|
|
Flag
|
Hong Kong - China
|
|
Port of registry
|
Hong Kong
|
|
GT
|
29.226 t
|
|
DWT
|
49.999 t
|
|
NT
|
12.026 t
|
|
Length
|
183,21 m overall
|
|
Breadth
|
32,20 m registered
|
|
Draught
|
Max: 12,77m
|
|
Register dimensions LxBxD
|
175,56 x 32,20 x 18,80 m
|
|
Rule Dimensions LxBxD
|
174,00 x 32,20 x 18,80 m
|
|
Freeboard
|
Summer: 6.060 mm
|
|
Depth
|
18,80 m registered
|
|
Speed
|
Max: 15,43 knots
|
|
Built
|
2007
|
|
Keel laid
|
12/04/2007
|
|
Launch date
|
06/07/2007
|
|
Delivery date
|
30/08/2007
|
|
Builder
|
Hyundai Mipo Dockyard Co., Ltd.
Ulsan
South Korea
|
|
Yard number
|
2018
|
|
Hull material
|
Steel
|
|
Hull type
|
Double hull
|
|
Watertight bulkheads
|
10
|
|
Continuous decks
|
1
|
|
Main engine
|
1x Hyundai 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm
Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea
Build: 02/2007
|
|
Propellers
|
1x Fixed pitch propeller
|
|
Boilers
|
1x Water tube boiler
1x Exhaust gas economizer
Builder: Kang Rim Heavy Ind. Co., Ltd.
|
|
Generators
|
2x Diesel generatorsets each 730 kW
|
|
Number of cargo tanks
|
12
|
|
Cargo tank capacity
|
Seg#1: 6.763,8 m³ (1p/s)
Seg#2: 9.138,8 m³ (2p/s)
Seg#3: 9.317,6 m³ (3p/s)
Seg#4: 9.317,6 m³ (4p/s)
Seg#5: 9.300,8 m³ (5p/s)
Seg#6: 8.068,2 m³ (6p/s)
Seg#7: 1.174,8 m³ (slop p/s)
Liquid: 54.164 m³
|
|
Number of slop tanks
|
2
|
|
Slop tank capacity
|
1.174,8 m³
|
|
Pumps
|
12x Framo 15 cargo pumps each 600 m³/h
2x Framo 15 cargo pumps each 300 m³/h
2x Framo ballast pumps each 900 m³/h
|
|
Maximum loading rate
|
3.600 m³/h
|
|
Maximum discharging rate
|
3.600 m³/h
|
|
Tank capacities
|
Fuel oil: 1.422,2 m³
Fresh water: 192,8 m³
|
|
Anchor equipment
|
2x Anchors each 6.530 kg
Diameter: 73 mm
|
|
Lifting equipment
|
1x Hose handling crane - SWL 10,0 t
1x Engine room crane - SWL 2,0 t
1x Provision crane - SWL 2,0 t
|
|
Crew size
|
25
|
|
Manager
|
Diamond S Management LLC
|
|
Technical manager
|
Diamond Anglo Ship Management Pte Ltd.
|
|
Operator
|
Anglo-Eastern Shipmanagement (S) Pte Ltd.
Republic of Singapore
|
|
Previous owners
|
CVI Atlantic Breeze LLC
|
|
Latest data adjustment
|
18 June 2019
|
