Westerschelde 18 October 2018 |
 |
| Antwerpen 07/05/19 |
|

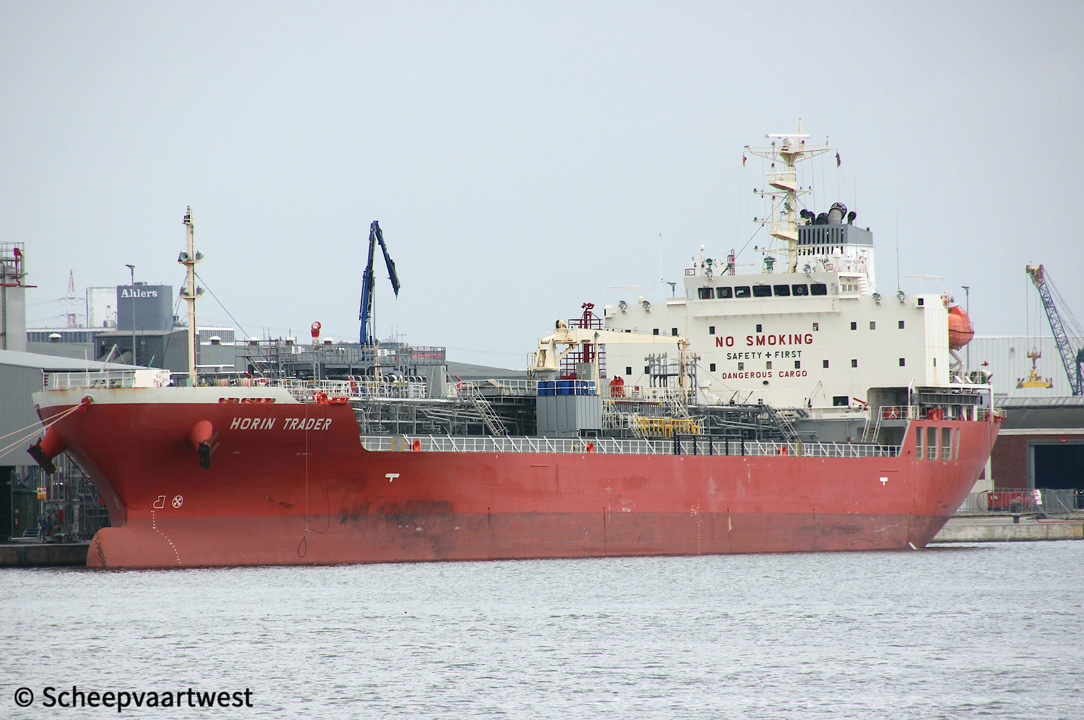

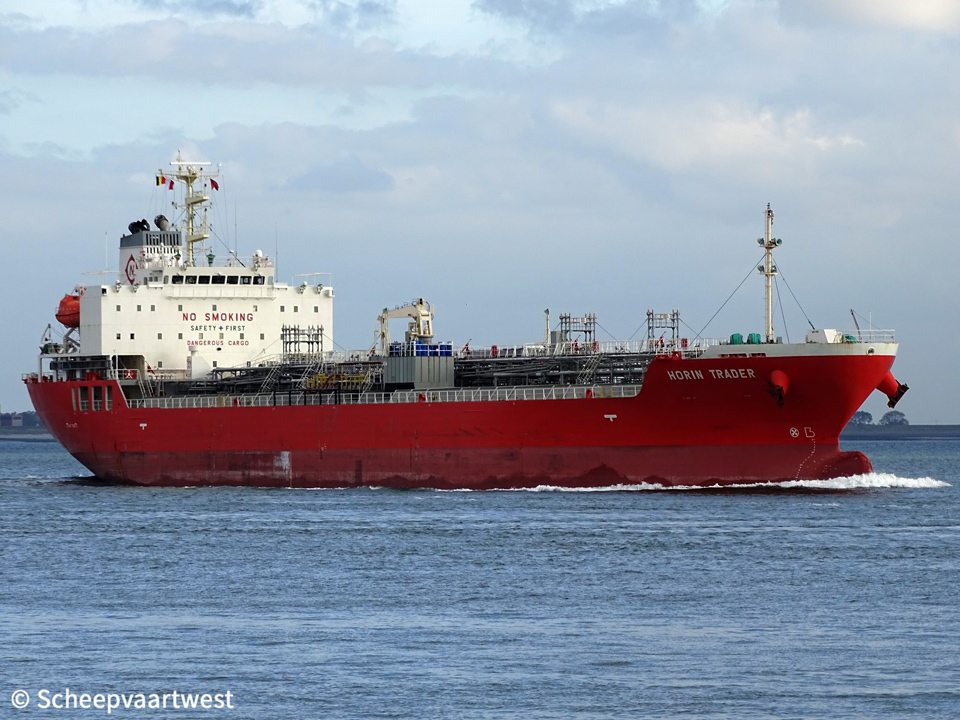

Name |
HORIN TRADER |
|
Type |
Chemical/Oil products tanker |
|
Main products |
Chemicals |
|
IMO-number |
9724051 |
|
Call sign |
DUHA |
|
Flag |
Philippines |
|
Port of registry |
Manila |
|
GT |
11.729 t Suez: 12.447,32 t |
|
DWT |
Summer: 19.855,61 t Winter: 19.297,59 t |
|
NT |
6.073 t Suez: 11.189,88 t Panama: 9.858 t |
|
Displacement |
Summer: 25.263,67 t Winter: 24.682,65 t |
|
Length |
145,53 m overall 137,00 m between perpendiculars |
|
Breadth |
23,73 m extreme |
|
Draught |
Summer: 9,72 m Winter: 9,51 m |
|
Keel to masthead |
37,98 m |
|
Air draft |
Summer deadweight: 28,26 m Normal ballast: 32,51 m Lightship: 35,67 m |
|
Freeboard |
Summer: 3.664 mm Winter: 3.866 m |
|
Depth |
13,35 m moulded |
|
Built |
2015 |
|
Date of completion |
29/05/2015 |
|
Builder |
Usuki Shipyard Co., Ltd. Usuki Japan |
|
Yard number |
1748 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hitachi 6S40ME-B - 2 stroke 6 cylinder 400 x 1.770 mm combustion engine 5.700 kW / 7.745 kW at 124 rpm Build: 11/11/2014 Builder: Hitachi Zosen Corporation Innoshima Work, Innoshima - Japan |
|
Propellers |
1x Fixed propeller - aft at 124 rpm |
|
Boilers |
1x CHO Aalborg 161,70 m² - 9,0 bar 1x CHR Aalborg 53,00 m² - 14,0 bar |
|
Generators |
3x Yanmar main diesel generatorsets each 575 kVA - 460 kW - 679 hp |
|
Emergency generator |
1x Diesel generatorset 65 kVA - 52 kW - 82 hp |
|
Bow thruster |
1x 871 hp |
|
Number of cargo tanks |
16 |
|
Cargo tank capacity 98% |
Total: 20.955,37 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
1.173,58 m³ (also cargo tank) |
|
Pumps |
12x Centrifugal cargo pumps each 250 m³/h 6x Centrifugal cargo pumps each 200 m³/h 2x Centrifugal ballast pumps each 330 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 42,30 m Bow to centre manifold: 76,82 m Stern to centre manifold: 68,71 m Distance between cargo manifold centres: 380 m Distance ships rail to manifold: 4.425 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 998 mm Distance main deck to centre of manifold: 2.760 mm Spill tank grating to centre of manifold: 950 mm |
|
Tank capacities |
Fuel oil: 973,63 m³ Diesel oil: 264,46 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t midship upper deck |
|
Manager |
Nisshin Shipping Co., Ltd. Tokyo Japan |
|
Technical operator |
Victoria Ship Management Inc. 19th Floor Nihonbashi 1-Chome Bldg. 1-4-1 Nihonbashi, Chuo-ku Tokyo 103-0027 Japan |
|
Commerical operator |
Hansa Tankers AS Kalfarveien 57A 5022 Bergen Norway |
|
Registered owner |
Amethyst Shipping Company, Inc. Elena Bldg., 1, 1806 Singalong cor. Nakpil Street, Malate Manila Philippines |
|
Disponent owner |
Hansa Tankers AS Kalfarveien 57A 5022 Bergen Norway |
|
Latest data adjustment |
07 March 2020 |
