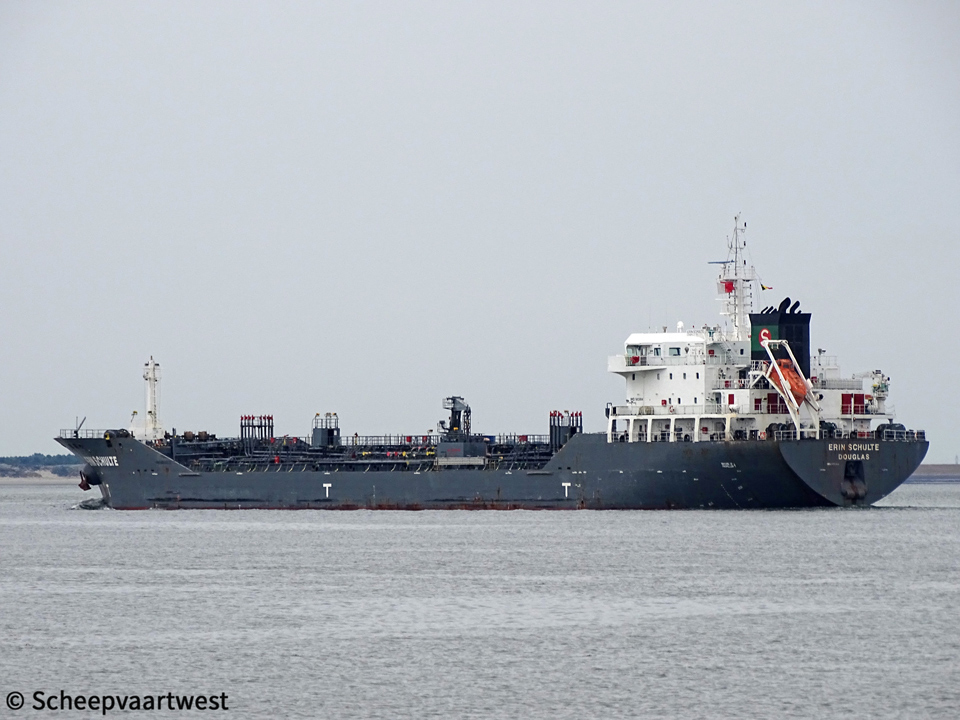

Erin Schulte 01

Westerschelde 20 July 2018



Name

ERIN SCHULTE

Type

Tanker for oil and chemicals

IMO-number

9439814

Call sign

2BXS4

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

11.233 t registered

Suez: 11.980,88 t

DWT

Summer: 16.716 t

NT

5.041 t registered

Panama: 9.455 t

Suez: 10.299,57 t

Length

144,15 m overall

135,60 m between perpendiculars

Breadth

23,00 m moulded

Draught

Max: 8,80 m

Freeboard

3.715 mm

Depth

12,50 m moulded

Speed

13,5 knots

Built

2009

Keel laid

20/05/2006

Launch date

28/09/2008

Delivery date

30/10/2009

Builder

Jiangxi Jiangzhou Union Shipbuilding Co., Ltd.
Rui Chang
China

Yard number

JZ1008

Hull material

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 7

Oil tight: 10

Main engine

1x STX-MAN B&W 6S35MC-MK7 - 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 5.954 bhp at 173,0 rpm

Manufacturer: STX Engine Co., Ltd.

Propellers

1x fixed pitch propeller

Manufacturer: Wartsila CME Zhenjiang Propeller Co., Ltd.

Boilers

2x Auxiliary oil fired boiler - 7,0 bat

1x Exhaust gas boiler - 7,0 bar

Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 600 kW

Manufacturer: Wuxi Fenxi Electrical Machine Co., Ltd.

Emergency generator

2x Diesel generatorset 100 kW

Bow thruster

1x 750 kW

Number of cargo tanks

12

Six wing tanks port & starboard side

Cargo tank capacity 100%

19.788,48 m³

Number of slop tanks

2

Pumps

4x Cargo pumps each 500 m³/h

1x Cargo pumps 25 m³/h

Maximum loading rate

2.100 m³/h

Number of tanks

Ballast: 14

Fuel oil: 10

Lubricating oil: 8

Diesel oil: 4

Fresh water: 3

Chain: 2

Mineral oil: 1

Waste water: 1

Tank capacities 100%

Diesel oil: 92,12 m³

Freshwater: 292,17 m³

Fuel oil: 750,76 m³

Lube oil: 85,28 m³

Tank Ballast: 7.440m³

Lifting equipment

1x Engine room overhead crane - SWL 2,0 t

Manufacture: Jiang Marine Machinery Factory

1x Hose handling crane - SWL 10,0 t

Manufacture: Zhenjiang Marine Auxiliary Machinery Work

Crew size

25

Manager

Bernhard Schulte (Hellas) Single Partner Limited Liability Company (SPLLC)
Athens
Greece

Operator

Bernhard Schulte Shipmanagement (Cyprus) Limited
Hanseatic House
111 Spyrou Araouzou Street
3036 Limassol
Cyprus

Registered owner

Dorchester LNG 2 Ltd.
Douglas
Isle of Man, United Kingdom

Latest data adjustment

09 March 2019
