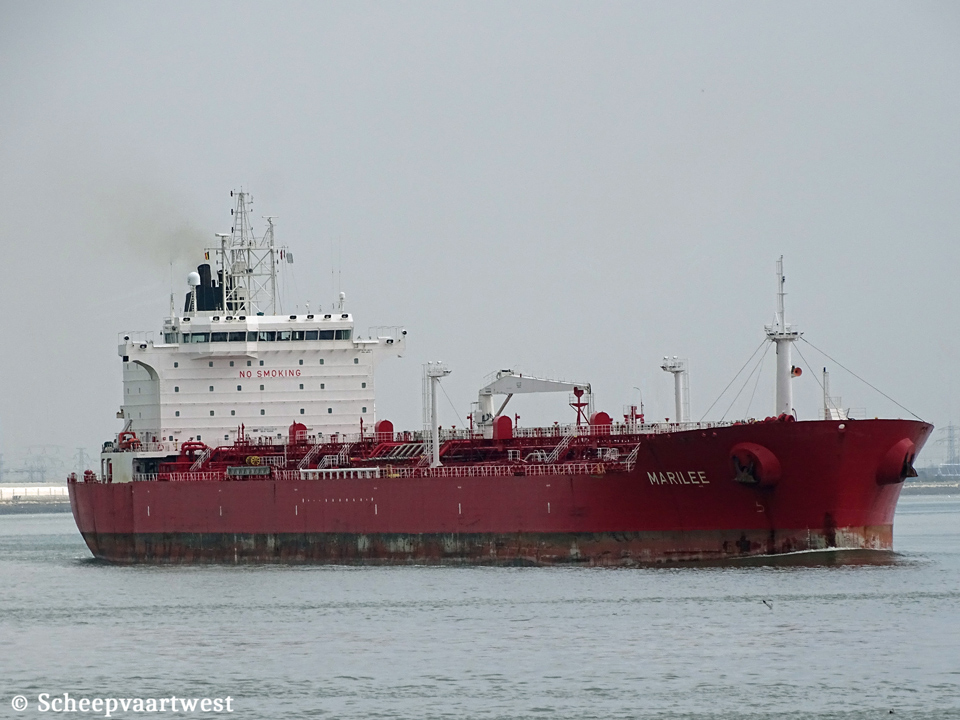

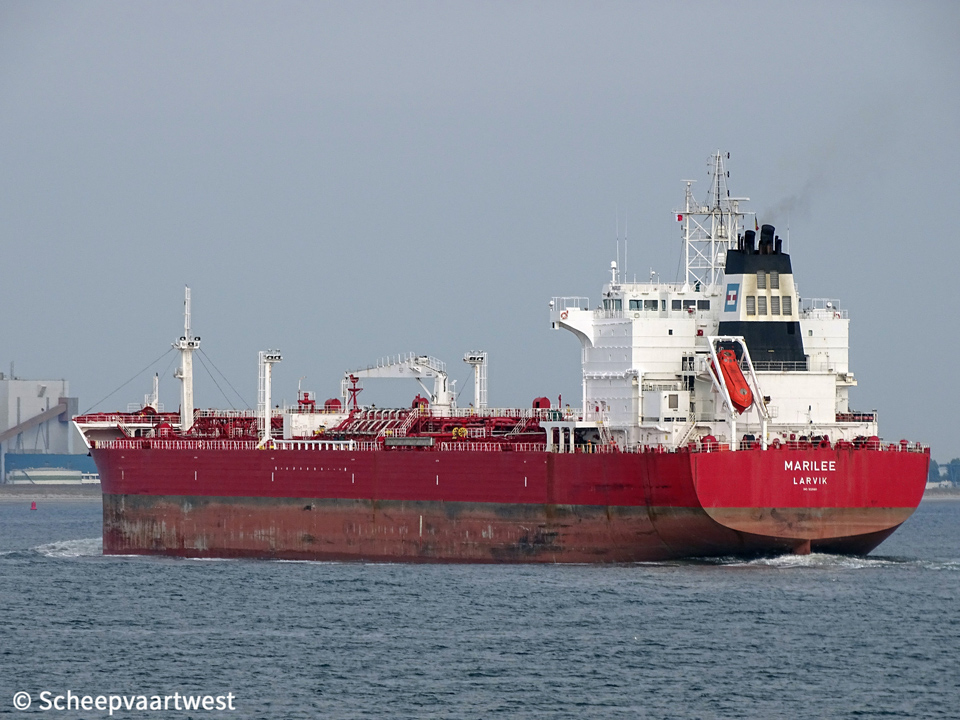

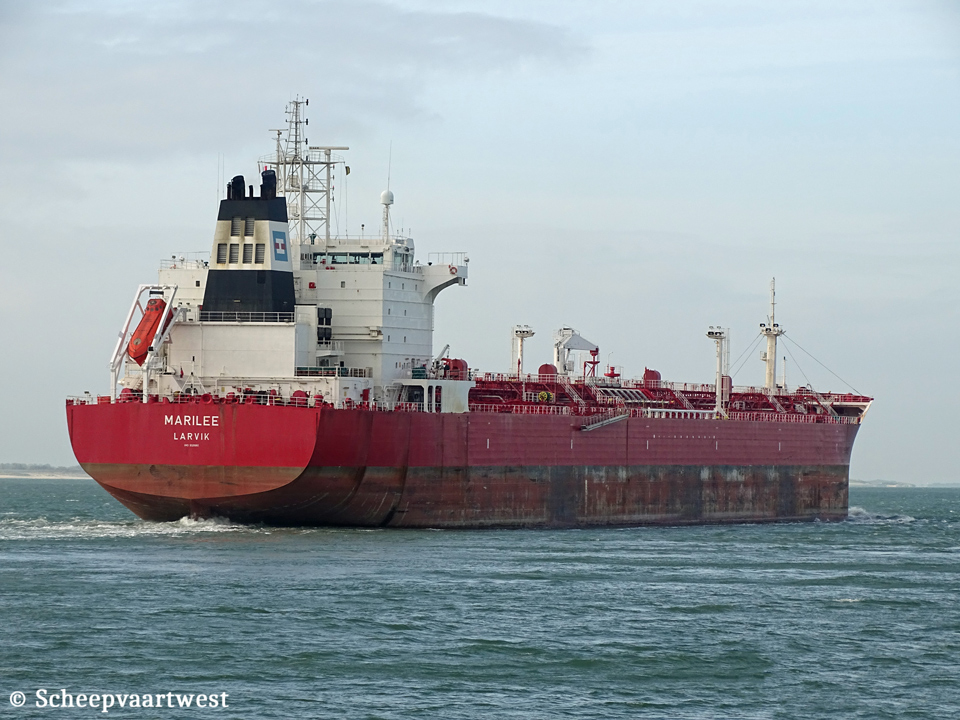

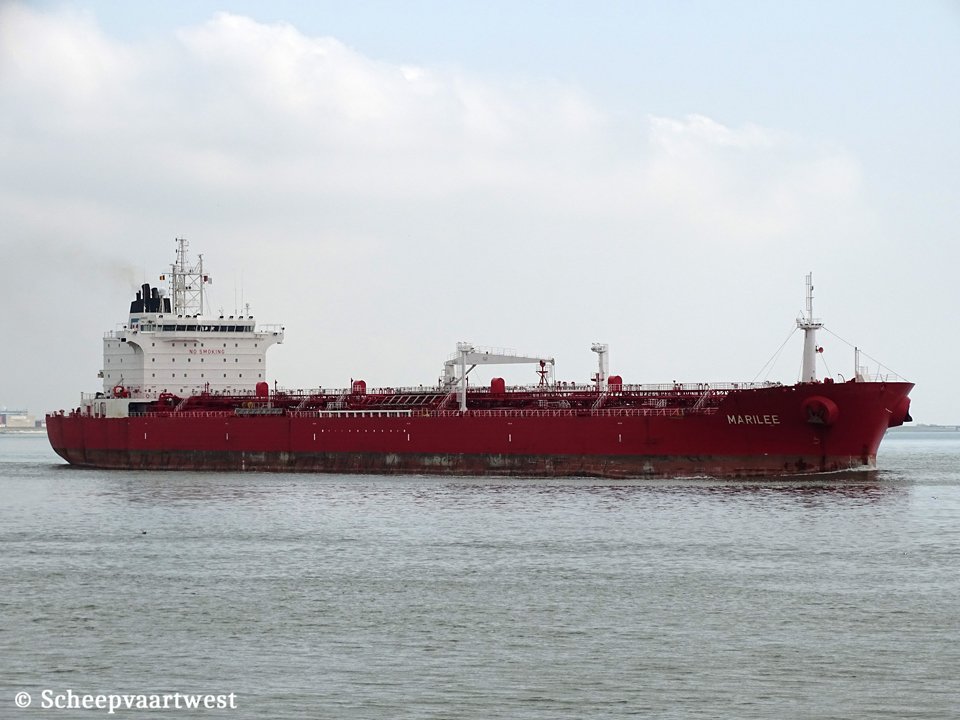

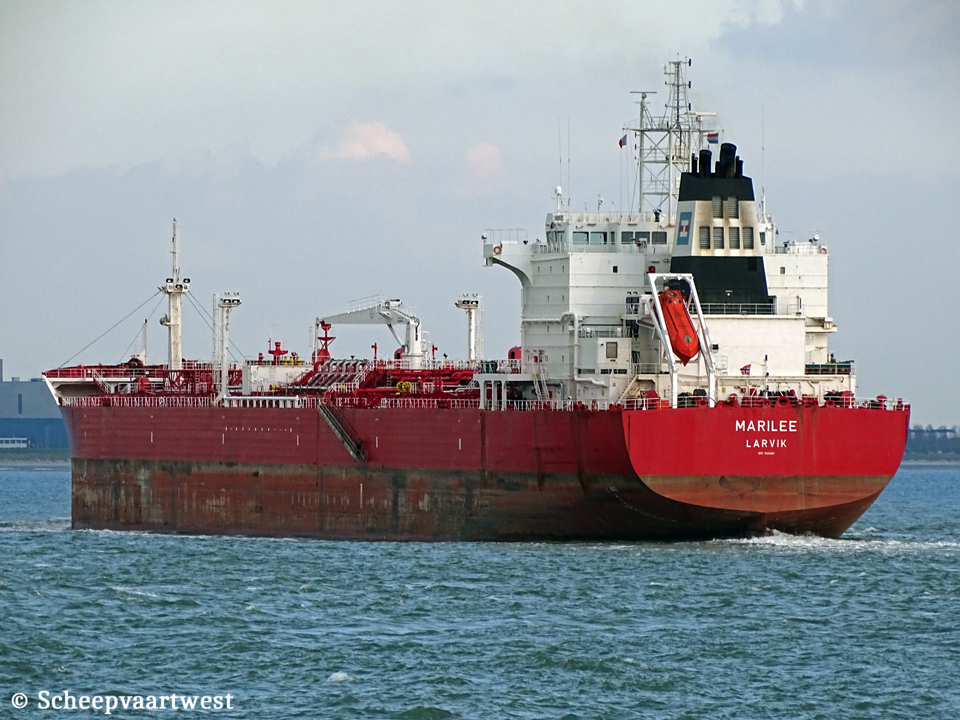

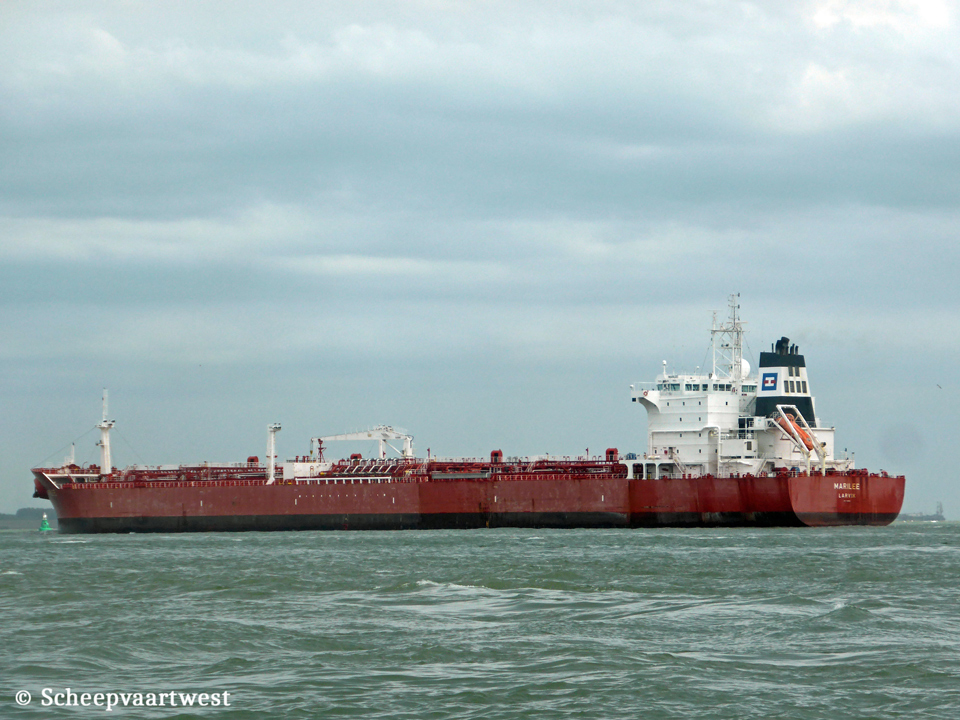

Marilee 01

Westerschelde 22 July 2018



Name

MARILEE

Type

Oil product tanker

IMO-number

9326861

Call sign

LAHJ6

Flag

Norway

Port of registry

Larvik

GT

42.835 t

Suez: 44.506 t

DWT

Summer: 74.898 t

Winter: 72.842 t

NT

22.004 t

Suez: 39.033,29 t

Panama: 35.378 t

Displacement

Summer: 90.160 t

Winter: 88.104 t

Length

228,60 m overall

221,02 m between perpendiculars

Breadth

32,27 m extreme

Draught

Summer: 14,18 m

Winter: 13,87 m

Keel to masthead

53,70 m

50,14 m in collapsed condition

Air draft

Summer deadweight: 39,53 full mast / 35.97 collapsed mast

Normal ballast: 45,30 full mast / 41,74 m collapsed mast

Lightship: 50,98 m full mast / 47,42 m collapsed mast

Freeboard

Summer: 6.310 mm

Winter: 6.600 mm

Depth

20,45 m moulded

Speed

15,50 knots ballast - Economic: 10,0 knots

15,0 knots laden - Economic: 10,0 knots

Built

2006

Keel laid

05/11/2005

Launch date

31/03/2006

Date of completion

28/09/2006

Builder

Brodosplit Shipyard Ltd.

Split

Croatia

Yard number

448

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W Brodosplit-Tvornica Dizel Motora 6S60MC Mk. VI - 6 cylinder combustion engine 13.560 kW

Propellers

1x Controllable pitch propeller

Builder: Rolls-Royce, Kristinehamn - Sweden

Boilers

Auxiliary boiler, oil/gas fired P (Auxiliary oil fired boiler)

Auxiliary boiler, composite S (Composite boiler)

Builder: TPK NOVA, Zagreb - Croatia

Generators

3x MAN-B&W 6L23/30H main diesel generatorsets each 1.100 kW

Emergency generator

1x Caterpillar 3406 diesel generatorset

Number of cargo tanks

12

Total cargo capacity 98%

81.707,7 m³

Natural segregation with double valve capacity 98%

Seg 1 COTs 1W: 10.962,4 m³
Seg 2 COTs 2W: 14.160,9 m³
Seg 3 COTs 3W: 14.193,0 m³
Seg 4 COTs 4W: 14.193,0 m³
Seg 5 COTs 5W: 14.193,0 m³
Seg 6 COTs 6W: 14.005,3 m³
Seg 7 COTs Slop P/S: 2.250,9 m³

Number of slop tanks

2

Slop tank capacity 98%

2.250,9 m³

Pumps

12x Submerged Framo/centrifugal cargo pumps each 1.000 m³/h

2x Submerged Framo/centrifugal cargo pumps each 300 m³/h

1x Submerged/centrifugal Framo pumps 80 m³/h

2x Submerged centrifugal Framo ballast pumps each 1.500 m³/h

Manifolds

Distance bridge front to centre of manifold: 82,10 m

Bow to centre manifold: 110,50 m

Stern to centre manifold: 118,00 m

Distance between cargo manifold centres: 2.500 mm

Distance ships rail to manifold: 4.400 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 900 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 2.294,1 m³

Diesel oil: 184,9 m³

Gas oil: 92,8 m³

Ballast: 46.302,1 m³

Anchor equipment

Length: 687,50 m

Diameter: 81 mm

Lifting equipment

1x Crane - SWL 15,0 t

Commerical operator

Straits Tankers Pte Ltd.
3 Anson Road #13-01 Springleaf Tower
Singapore 079909
Republic of Singapore

Technical operator

Thome Ship Management Pte. Ltd.
16 Raffles Quay, 43-01 Hong Leong Building,
Singapore
Republic of Singapore

Registered owner

LR ICE Shipping Six Ltd.
Trust Company Complex Ajeltake Road, Ajeltake Island
Majuro
Marshall Islands

Disponent owner

Marinvest Shipping AB
Viktor Rydbergsgatan 10
SE - 411 32 Göteborg
Sweden

Latest data adjustment

26 February 2019
