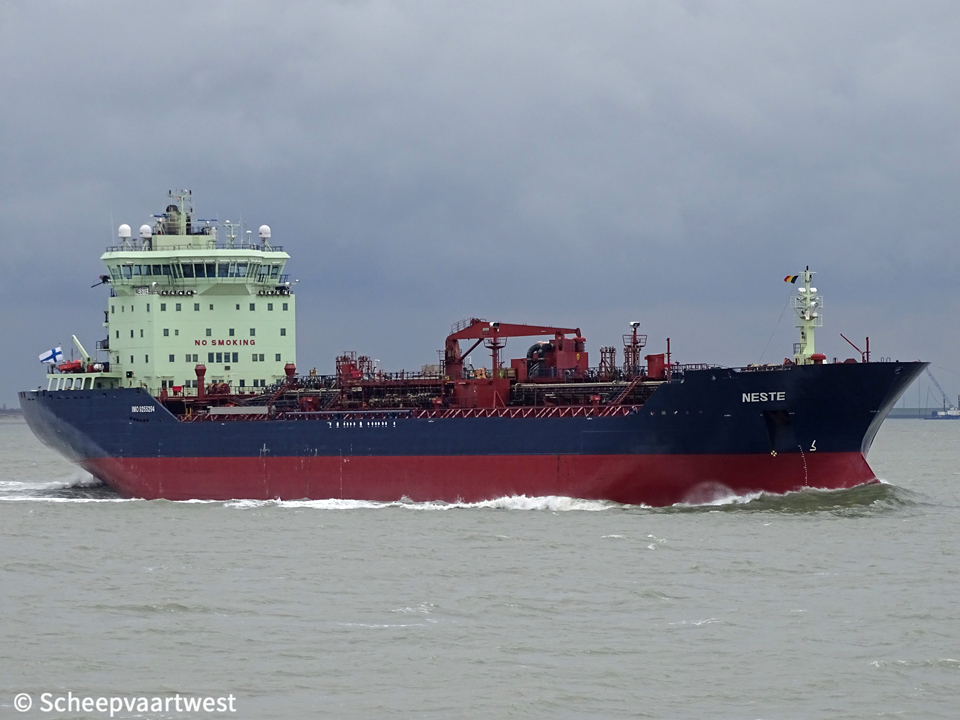

Neste 01

Westerschelde 26 January 2019

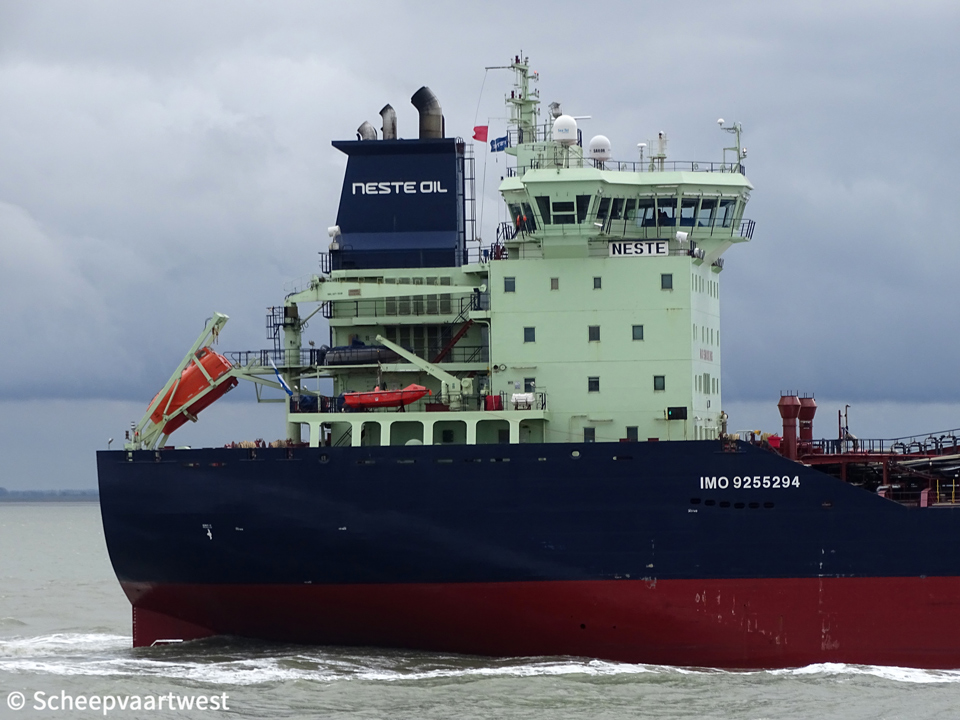

Neste 02
Westerschelde 26/01/19



Name

NESTE

Type

Tanker for chemicals and oil products

IMO-number

9255294

Call sign

OJLI

Flag

Finland

Port of registry

Porvoo

GT

15.980 t

DWT

Summer: 25.117 t

NT

7.777 t

Length

169,50 m overall

160,40 m between perpendiculars

Breadth

23,78 m extreme

Draught

Max: 10,90 m

Freeboard

4.020 mm

Depth

14,90 m

Speed

Max: 16,4 knots

Service: 14,5 knots

Built

2005

Keel laid

10/10/2003

Launch date

22/05/2004

Date of completion

07/12/2004

Builder

Nanjing Jinling Shipyard Co.,Ltd.
China

Yard number

JLZ010204

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 9

Longitudinal: 3

Continuous decks

1

Main engine

1x Wärtsilä W9L46 - 4 stroke single acting 9 cylinder 460 x 580 mm combustion engine 9.450 kW / 12.848 hp at 500 rpm

Manufacturer: Wärtsilä Italia SpA - Italy

Propellers

1x Controllable pitch propeller

Boilers

2x Auxiliary boiler, oil/gas fired VOS-10

Manufacturer: VKK Standardkessel Köthen GmbH

1x Auxiliary boiler, exhaust gas heated VAZ-270

Manufacturer: Aalborg

Generators

3x Wärtsilä W6L20 - 4 stroke 6 cylinder 200 x 280 diesel engine each 1.200 kW coupled with 3 generators each 1.020 kW

Emergency generator

1x Sisu Diesel 645 DSBIMG diesel generatorset

Bow thruster

1x Controllable pitch thruster 1.200 kW / 1.632 bhp

Number of cargo tanks

12

Cargo tank capacity 98%

Liquid: 26.469 m³

Number of slop tanks

2

Slop tank capacity 98%

1.246 m³

Pumps

4x cargo pumps each 300 m³/h

8x cargo pumps each 445 m³/h

Tank capacities

Ballast: 10.876 m³

Anchor equipment

Length: 605,00 m

Diameter: 64 mm

Manager

OSM Ship Management Finland OY
Alto 4th, Gate8 Business Park, Ayritie 8A
FI-01510 Vantaa
Finland

Owner

OSM Ship Management Finland OY

Registered owner

SSC Neslaiva OY

Latest data adjustment

23 February 2019
