Westerschelde 18 July 2016 |
 |
 |
|
| Antwerpen 26/04/19 | Antwerpen 26/04/19 | |
|
Name |

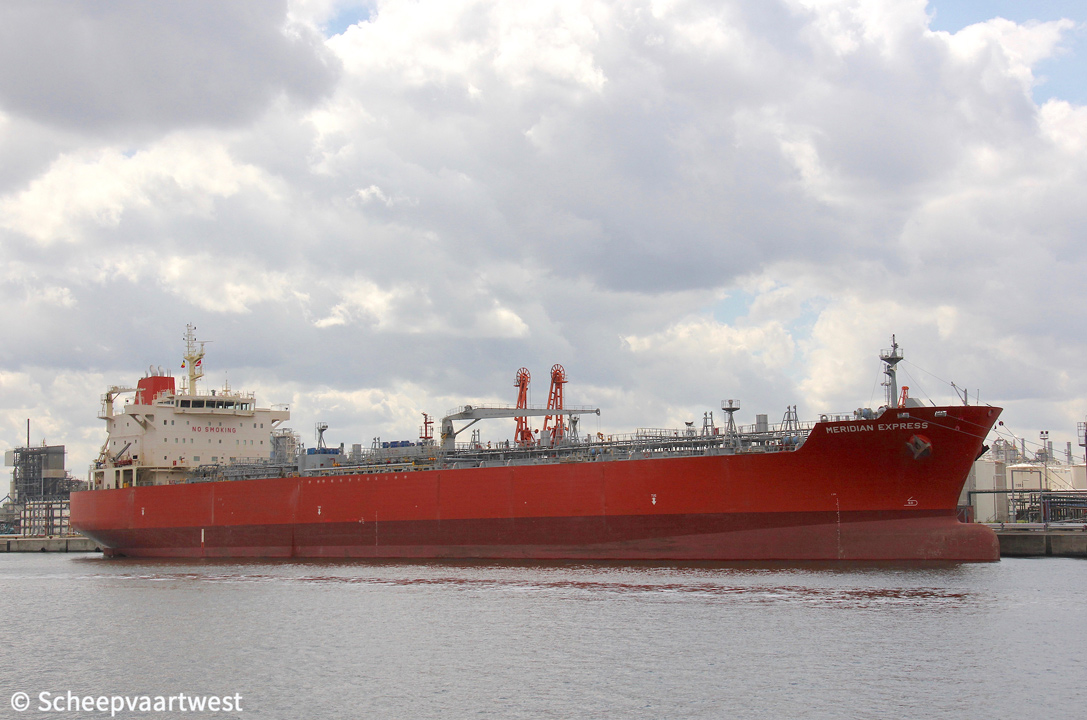

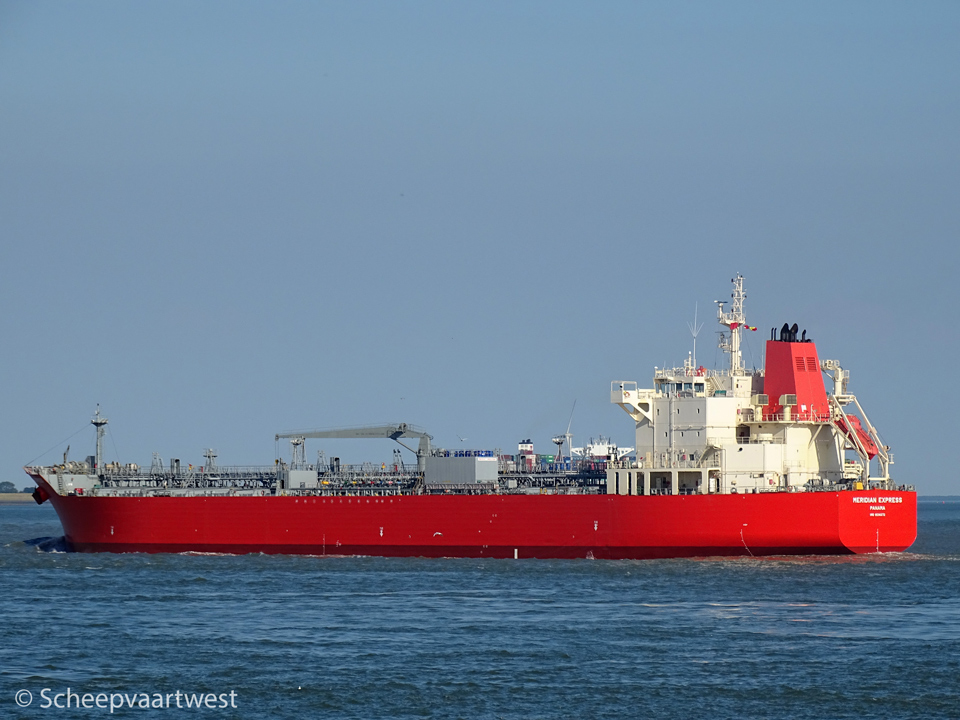

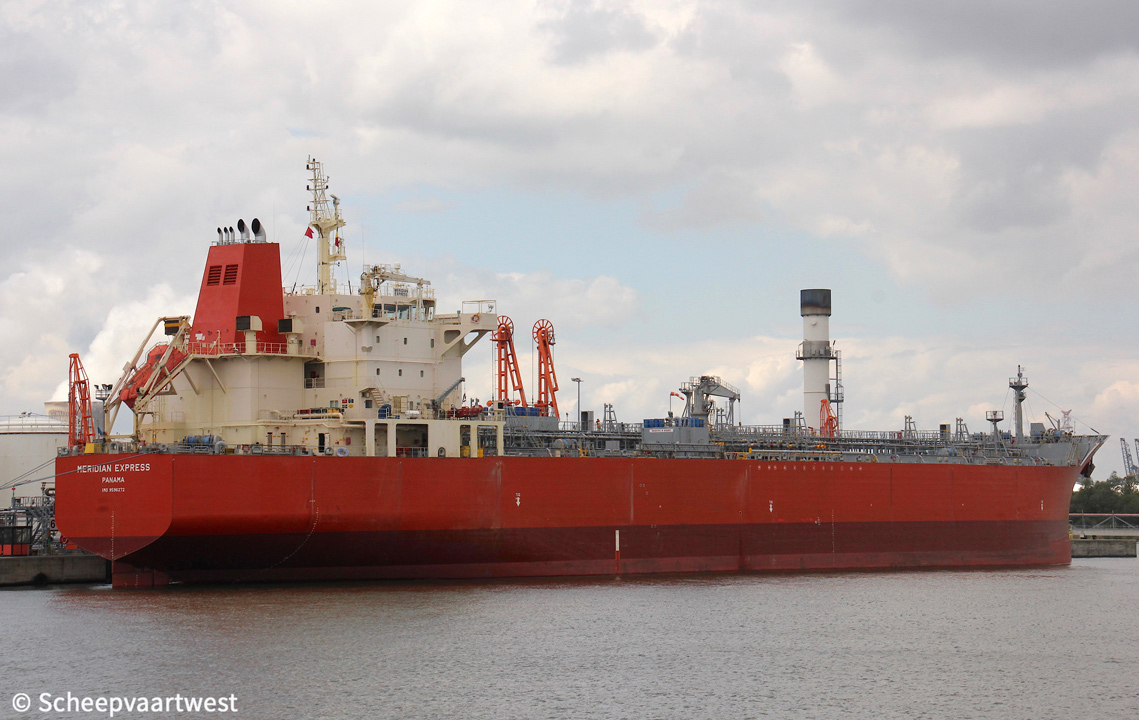

MERIDIAN EXPRESS |
|
Type |
Oil/Chemical tanker |
|
IMO-number |
9596272 |
|
Call sign |
3FQH2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
29.289 t registered |
|
DWT |
Summer: 46.589 t |
|
NT |
12.209 t registered |
|
Length |
183,17 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Max: 12,32 m |
|
Moulded L x B x D |
174 00 x 32 20 x 18 80 m |
|
Registered L x B x D |
175 54 x 32 20 x 18 80 m |
|
Freeboard |
Summer: 6.513 mm |
|
Depth |
18,80 m moulded |
|
Speed |
Max: 16,9 knots |
|
Built |
2013 |
|
Keel laid |
29/12/2010 |
|
Launch date |
28/02/2013 |
|
Date of completion |
29/05/2013 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
2319 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C 2 Stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 8.600 kW / 12.880 bhp at 123,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 500 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary Vertical boiler- 9,0 bat Evaporation: 18,00 t/h Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 800 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
Liquid: 54.261 m³ |
|
Tank capacities |
Fuel oil: 1.901 m³ Fresh water: 304 m³ |
|
Manager |
Anglo-Eastern Shipmanagement (Singapore) Pte Ltd. |
|
Owner |
Astraea Maritime S.A. |
|
Latest data adjustment |
14 February 2019 |
