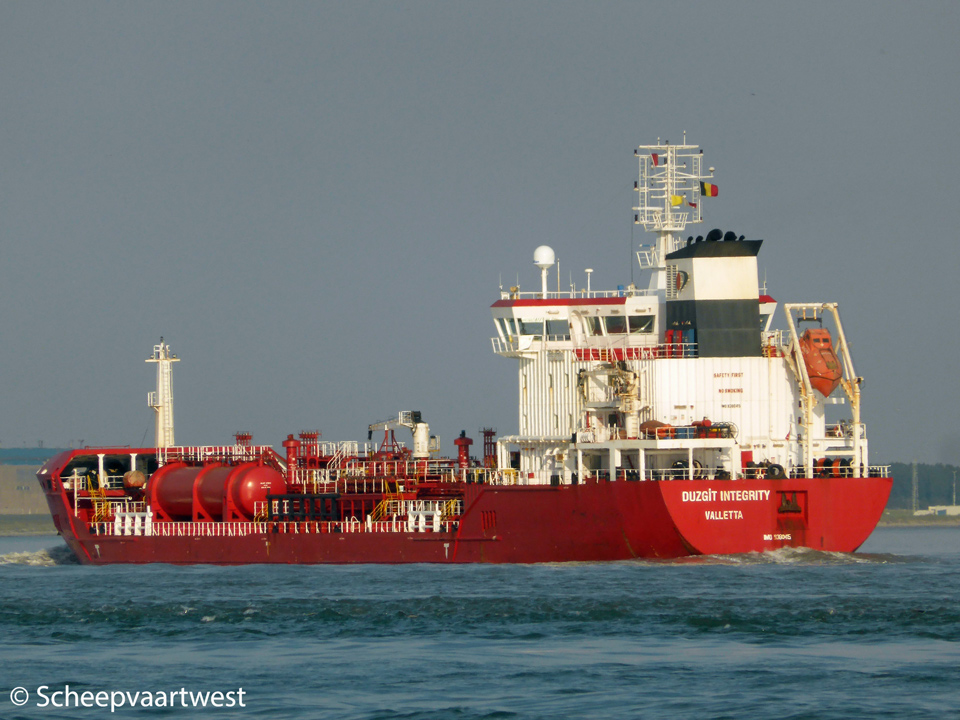

Duzgit Intergrity 01

Westerschelde 02 August 2015

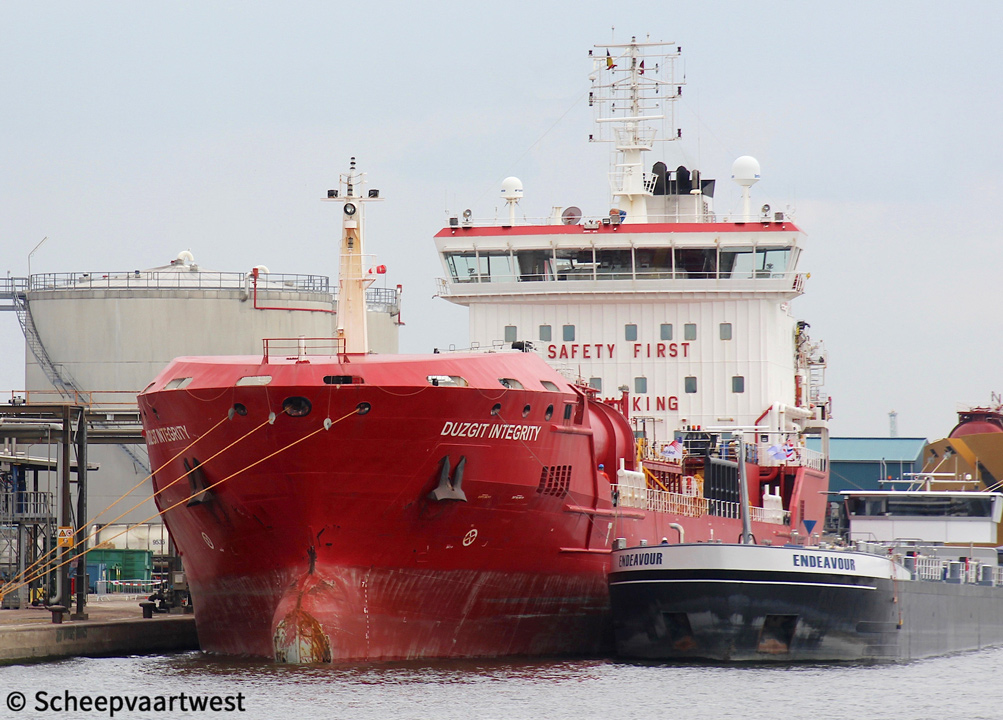

Duzgit Integrity 02
Antwerpen 07/05/19



Name

DUZGIT INTEGRITY

Type

Chemical and product tanker

IMO-number

9380415

Call sign

9HQS9

Flag

Malta

Port of registry

Valletta

GT

7.833 t

Suez: 8.184,69 t

DWT

Summer: 10.735,58 t

Winter: 10.371 t

NT

3.626 t

Suez: 6.516,83 t

Panama: 6.629 t

Light weight

4.081 t

Length

131,85 m overall

123,70 m between perpendiculars

Breadth

18,90 m moulded

Draught

Summer: 7,98 m

Winter: 7,81 m

Keel to mast end

35,85 m

Air draft

Lightship: 33,25 m

Normal ballast: 30,72 m

At loaded summer deadweight: 27,87 t

Freeboard

Summer: 2.234 mm

Winter: 2.400 mm

Depth

10,20 m moulded

Speed

Max: 14,5 knots

Service: 13,6 knots

Economic: 12,5 knots

Built

2008

Date of completion

01/04/2008

Builder

Marmara Shipyard
Korfez
Turkey

Yard number

073

Hull material

Steel

Hull type

Double hull

Watertight compartments

10

Continuous decks

1

Main engine

1x MaK 9M32C - 4 stroke 9 cylinder 480 x 320 mm combustion engine 4.500 kW / 6.114 hp at 600 rpm

Built: 2005

Builder: Caterpillar Motoren Gmbh & Co. Kg, Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHR 97,40 m² - 10,0 bar
2x CHO HTI-GESAB 72,10 m² / 10,0 bar

Shaft generator

1x 2.000 kVA - 1.600 kW

Generators

4x Main diesel generatorsets each 644 kVA - 515 kW - 700 hp

Emergency generator

1x Diesel generatorset 250 kVA - 200 kW - 284 hp

Bow thruster

499,61 kW / 670 bhp

Number of cargo tanks

12

Cargo tank capacity 98%

12.596 m³

Tank capacity 98%

CT1P: 988 m³

CT1S: 989 m³

CT2P: 1.113 m³

CT2S: 1.112 m³

CT3P: 967 m³

CT3S: 974 m³

CT4P: 1.125 m³

CT4S: 1.123 m³

CT5P: 963 m³

CT5S: 968 m³

CT6P: 974 m³

CT6S: 963 m³

Number of slop tanks

2

Slop tank capacity 98%

CSLP: 187 m³

CSLS: 150 m³

Tank capacities

Fuel: 534,85 m³

Ballast: 4.550 m³

General total capacity

12.596 m³

Pumps

10x Framo deepwell cargo pumps 375 m³/h each

2x Framo deepwell cargo pumps 100 m³/h each

2x Hydraulic deepwell ballast pumps 400 m³1/h each

Manifolds

Distance bow centre manifold: 68,20 m

Distance stern centre manifold: 59,50 m

Inboard from ships side: 4,80 m

Height above deck: 3,80 m

Height above waterline (loaded): 6,00 m

Height above waterline (in ballast): 8,90 m

Cargo rating

Total discharging rate 1.500 m³/h

Total loading rate 1.600 m³/h

Lifting equipment

1x Deck crane - SWL 5,0 t @ 16,00 m

1x Service crane - SWL 2,0 t, aft

Crew size

17

Manager

DSM Gemi Isletmeciligi AS

Technical operator

Densa Tanker Isletmeciligi Ltd.

Kosuyolu Cenap Sahabettin Sok. No:42

34718 Kadikoy-Istanbul

Turkey

Commerical operator

Densa Tanker Isletmeciligi Ltd.

Kosuyolu Cenap Sahabettin Sok. No:42

34718 Kadikoy-Istanbul

Turkey

Registered owner

DS Tankers Limited
171 Old Bakery Street
Valletta
Malta

Group

Düzgit Group DS Tankers Ltd.
Eski Büyükdere Caddesi, Park Plaza
No: 14, Kat : 11, 34467-Maslak
Sarıyer, Istanbul
Turkey

Latest data adjustment

15 January 2019
