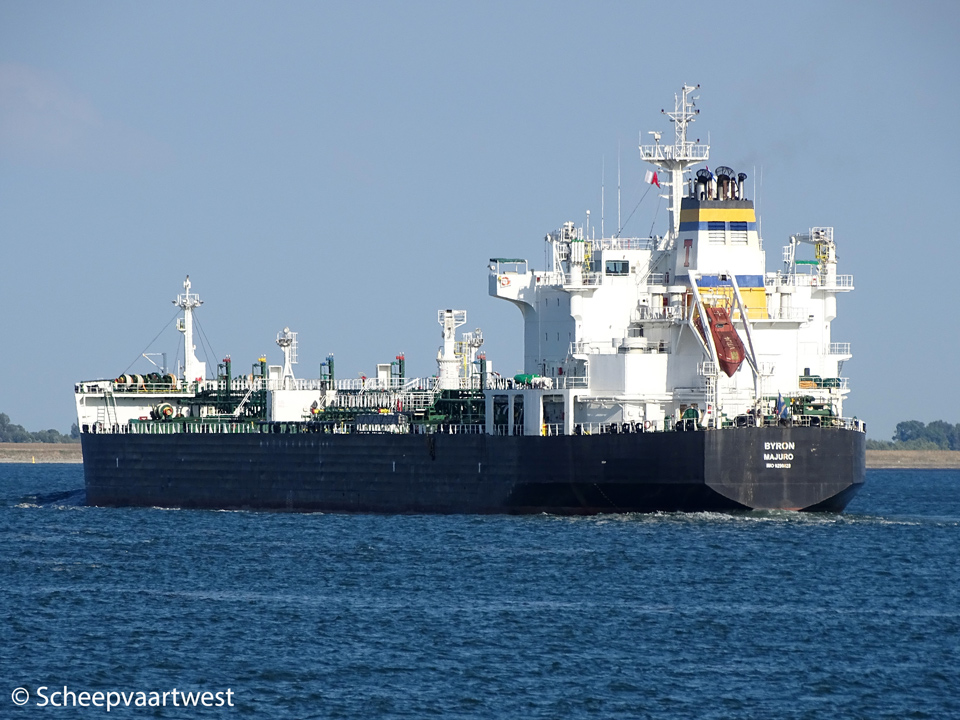

Westerschelde 31 July 201 |
|
Name |
BYRON |
|
Previous names |
2009 - 2017 Scarlet Star |
|
Type |
Oil product tanker - Handysize |
|
IMO-number |
9290828 |
|
Call sign |
V7TJ4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2009 - 2015 Norway |
|
GT |
23.298 t |
|
DWT |
Summer: 37.252 t |
|
Length |
182,55 m overall 175,00 m between perpendiculars |
|
Breadth |
27,38 m |
|
Draught |
Max: 11,22 m |
|
Freeboard |
5.515 mm |
|
Depth |
16,70 m |
|
Speed |
14,5 knots |
|
Built |
2005 |
|
Keel laid |
12/07/2004 |
|
Launch date |
26/10/2004 |
|
Delivery date |
04/01/2005 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
0327 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 9 longitudinal: 3 |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.460 kW / 12.853 hp at 127,0 rpm Built: 18/06/2004 Manufacturer: Hyundai Heavy Industries Co., Ulsan - South Korea |
|
Propellers |
1x Solid fixed pitch propeller aft at 127,0 rpm |
|
Boilers |
1 CHR Kangrim 377,00 m² - 11,6 bar |
|
Generators |
3x 6H21/32 main diesel generatorsets each 925 kVA - 740 kW - 1073 hp Manufacturer: Hyundai Heavy Industries Co. |
|
Emergency generator |
1x Agco 645 DSBIMG diesel generatorset 225 kVA- 180 kW - 272 hp |
|
Bow thruster |
1x 800 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
42.171,2 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
931 m³ |
|
Pumps |
10x Cargo pumps each 500 m³/h |
|
Tank capacities |
Ballast: 18.965 m³ Bunker: 1.129 t |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t |
|
Crew size |
30 |
|
Manager |
TCM - Tsakos Columbia Shipmanagement S.A. |
|
Registered owner |
Vernon Marine Ltd. |
|
Latest data adjustment |
15 January 2019 |
