Antwerpen 14 February 2019 |
 |
 |
|

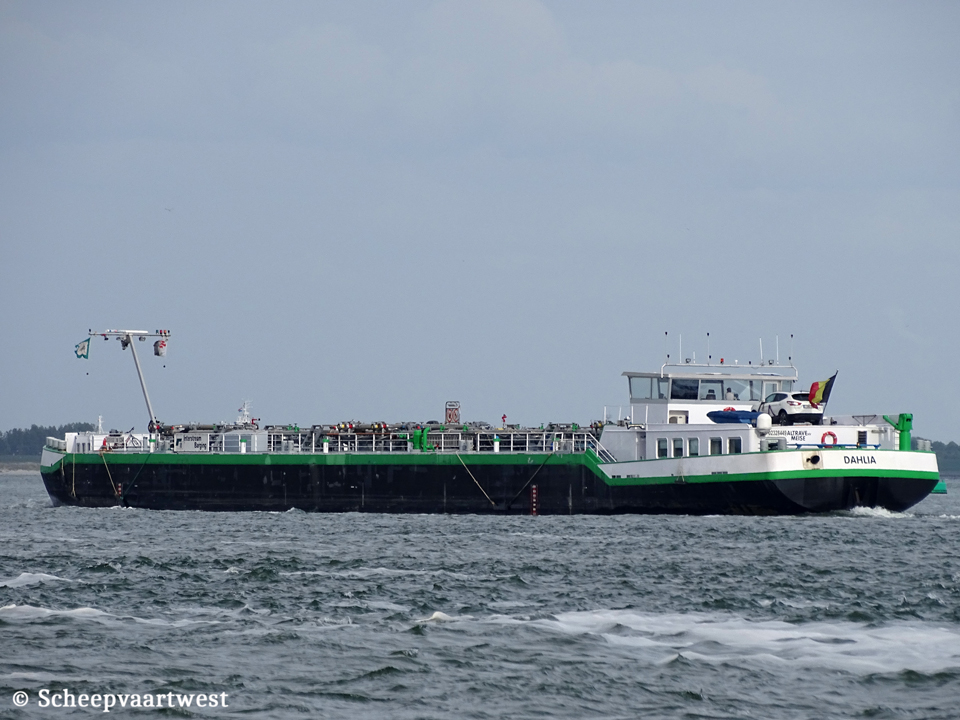

| Antwerpen 14/02/19 | Westerschelde 01/05/17 | |
|
Name |
DAHLIA |
|
Previous names |
2007 - 2016 Elma |
|
Type |
Inland tanker |
|
ENI-number |
02328449 |
|
Call sign |
PD4496 |
|
Flag |
Belgium |
|
Port of registry |
Meise |
|
Previous flags |
The Netherlands |
|
Tonnage |
1.558 t |
|
Length |
85,00 m overall 81,24 m between perpendiculars |
|
Breadth |
10,19 m |
|
Draught |
3,20 m |
|
Depth |
4,68 m |
|
Built |
2007 |
|
Builder casco |
Chvaletice Shipyard Chvaletice Czech Republic |
|
Builder completion |
Bijlsma Shipyard B.V. Lemmer The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 (B) DI-TA electronic - 4 stroke 170 x 190 mm combustion engine 1.379 hp / 1.015 kW at 1.600 rpm |
|
Gearbox |
1x Reintjes WAF 664 - reduction 5,044:1 |
|
Propellers |
1x Screw Propeller Solid 5 blades - Diameter 1.650 mm |
|
Generators |
1x John Deere generatorsets 71 kVA - 57 kW - 77 hp 1x John Deere generatorsets 520 kVA - 416 kW - 530 hp 1x John Deere generatorsets 144 kVA - 115 kW - 156 hp |
|
Bow thruster |
1x John Deere - van Wijk type SD 900 A - 660 hp |
|
Number of cargo tanks |
6 |
|
Cargo tank capacity 97% |
1.527 m³ |
|
Lifting equipment |
1x Car crane - SWL 1.800 kg |
|
Operator |
Interstream Barging The Netherlands |
|
Owner |
Altrave NV Meise Belgium |
|
Previous names & owners |
2007 - 2016 Elma - Elto Shipping (Frits & Mariette Kieboom de Rouck), Terneuzen - The Netherlands |
|
Latest data adjustment |
14 October 2022 |
