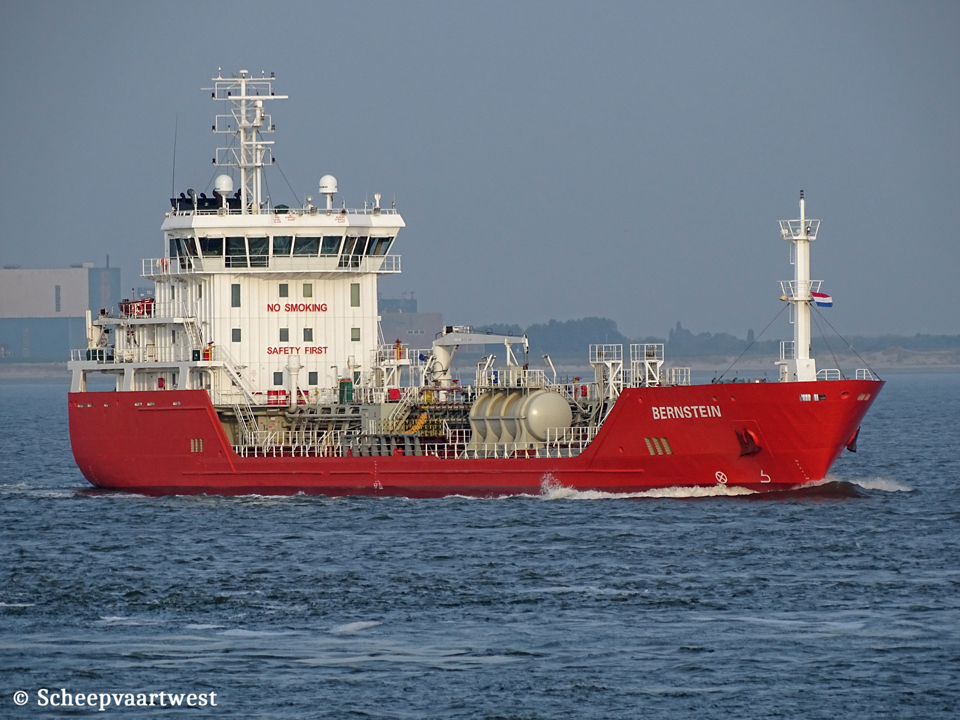

Bernstein IMO 9535541 02

Westerschelde 23 April 2020

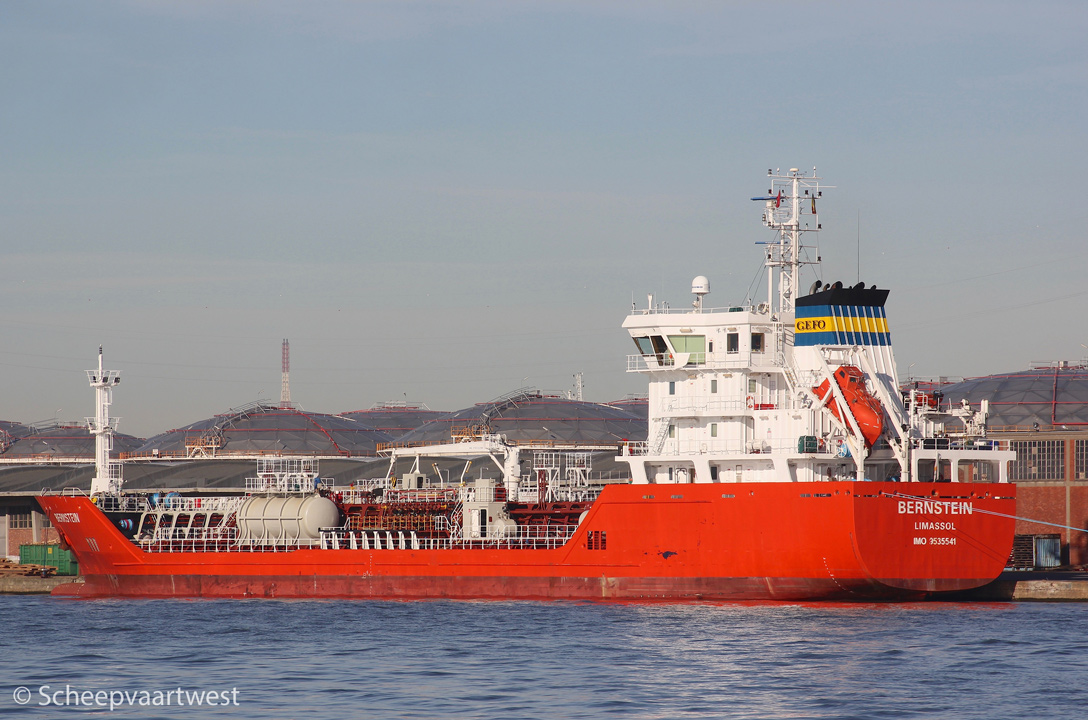

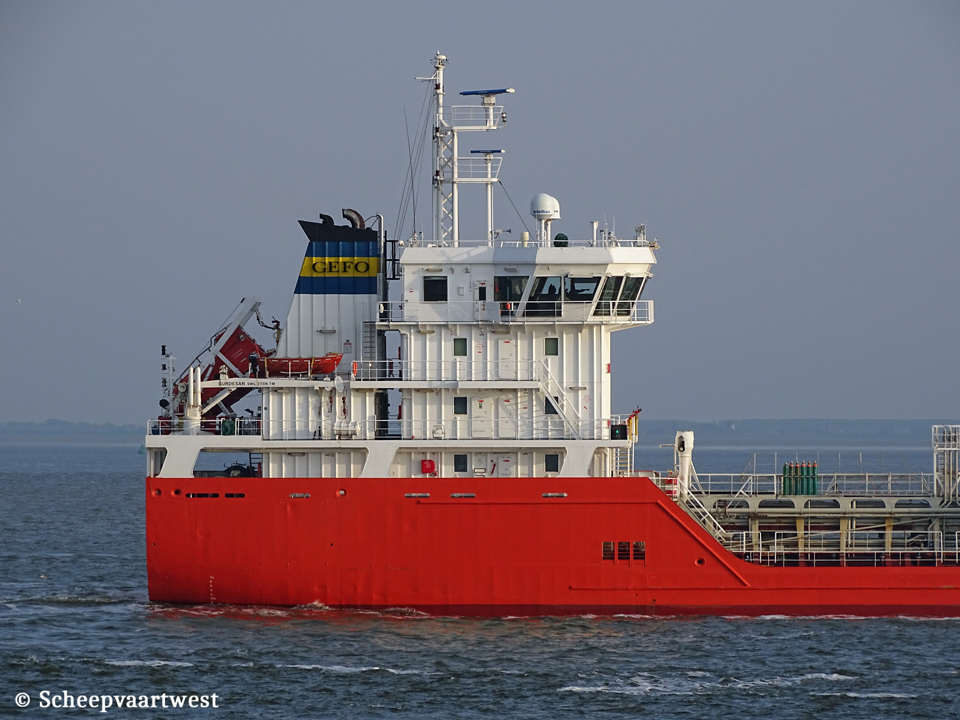

Bernstein IMO 9535541 03   Bernstein 01
Westerschelde 23/04/20   Antwerpen 14/02/20






Name

BERNSTEIN

Previous names

2010 - 2018 Besiktas Champion

Type

Tanker for oil and chemicals

IMO-number

9535541

Call sign

5BBF5

Flag

Cyprus

Port of registry

Limassol

Previous flags

2010 - 2011 Turkey

2011 - 2018 Malta, Valletta - Call sign: 9HA2741

GT

2.974 t

DWT

Summer: 4.114,8 t

NT

1.192 t

Length

98,71 m overall

91,65 m between perpendiculars

Breadth

14,10 m

Draught

Max: 5,79 m

Freeboard

1.411 mm

Depth

7,20 m

Speed

14,0 knots

Built

2010

Keel laid

10/07/2008

Launch date

24/09/2009

Date of completion

16/04/2010

Builder

Besiktas Shipyard

Yalova

Turkey

Yard number

04

Hull material

Steel

Hull type

Double hull

Continuous decks

2

Main engine

1x Caterpillar - 4 stroke single acting 9 cylinder 200 x 300 mm combustion engine 1.710 kW / 2.323 hp at 1.000 rpm

Built: 25/02/2008

Builder: Caterpillar Motoren GmbH & Co. KG - Germany

Propellers

1x Controllable pitch propeller

Boilers

2x CHO 52,10 m² - 10,0 bar

1x CHR 58,80 m² - 10,0 bar

Shaft generator

1x 290 kVA - 232 kW / 450 Volt 60 Hz

Generators

3x Main diesel generatorsets each 475 kVA - 380 kW - 530 hp / 450 Volt 60 Hz

Emergency generator

1x Diesel generatorset 124 kVA - 99 kW - 149 hp

Bow thruster

1x Tunnel thruster 346kW / 470 bhp, forward

Number of cargo tanks

11 + 2 slop tanks

Cargo tank capacity 98%

4.167 m³

Slop tank capacity

105 m³

Number of pumps

11x Cargo pumps each 150 m³/m²

Tank capacities

Fuel oil: 260 m³

Diesel oil: 62 m³

Ballast: 1.842 m³

Crew size

16

Manager

GEFO - Gesllschaft für Oeltransporte mbH

Raboisen 5

D-20095 Hamburg

Germany

Owner

Bernstein Tanker GmbH & Co KG

Raboisen 5

D-20095 Hamburg

Germany

Latest data adjustment

04 November 2023
