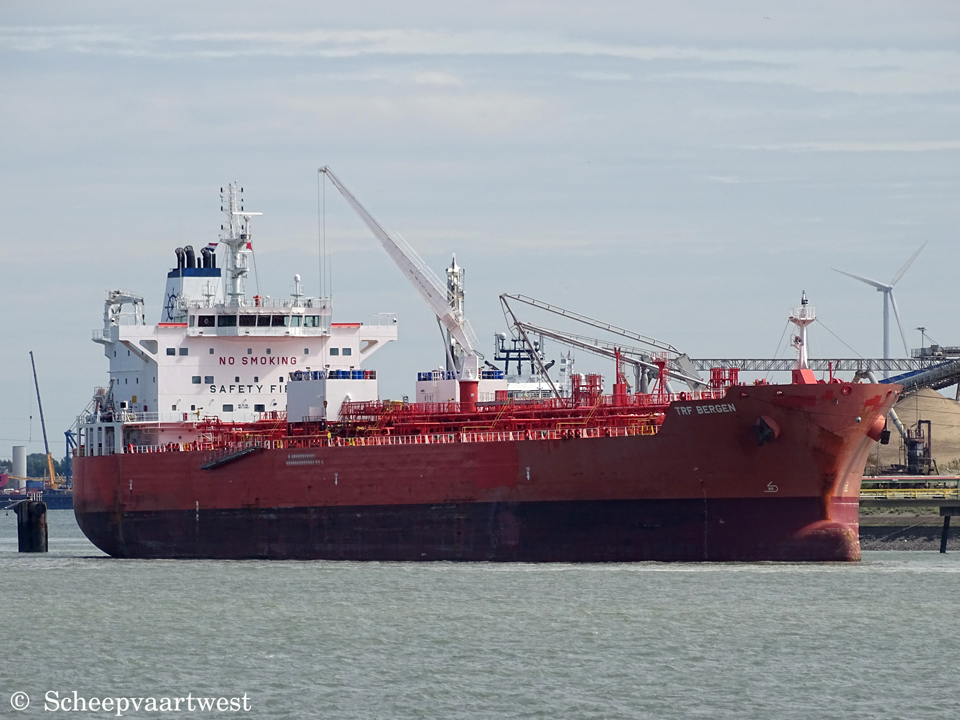

TRF Bergen 01

Vlissingen, The Netherlands 12 August 2018



Name

TRF BERGEN

Type

Tanker for chemicals and oil products

IMO-number

9692246

Call sign

V7KH7

Flag

Marshall Islands

Port of registry

Majuro

GT

29.531 t

DWT

Summer: 49.126 t

NT

13.451 t

Length

183,00 m overall

174,00 m between perpendiculars

Breadth

32,24 m extreme

Draught

Max: 13,32 m

Depth

19,10 m

Speed

15,0 knots

Built

2015

Keel laid

02/10/2014

Date of completion

07/05/2015

Builder

Hyundai Vinashin Shipyard Co., Ltd.
Ninh Phuoc
Vietnam

Yard number

S404

Hull material

Steel

Hull type

Double hull

Main engine

1x Hyundai/MAN B&W 6G50ME-B9.3 - 6 cylinder combustion engine 7.180 kW

Builder:
Hyundai Heavy Industries Co., Ltd.

Propellers

1x Fixed mono-block propeller

Boilers

1x Auxiliary boiler, composite

2x Auxiliary boiler, oil/gas fired
Builder: Kangrim

Generators

3x Hyundai 6H21/32 main diesel generatorsets each 1.140 kW

Builder: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Diesel generatorset 120 kW

Number of cargo tanks

20

Cargo tank capacity

51.733 m³

Tank capacities

Ballast: 22.739,9 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Manager

Navig8 Shipmanagement Private Ltd.

Operator

TRF Ship Management AS
Grev Wedels Plass 9
0151 Oslo
Norway

Registered owner

WLR/TRF Tanker Two LLC

Latest data adjustment

19 December 2018
