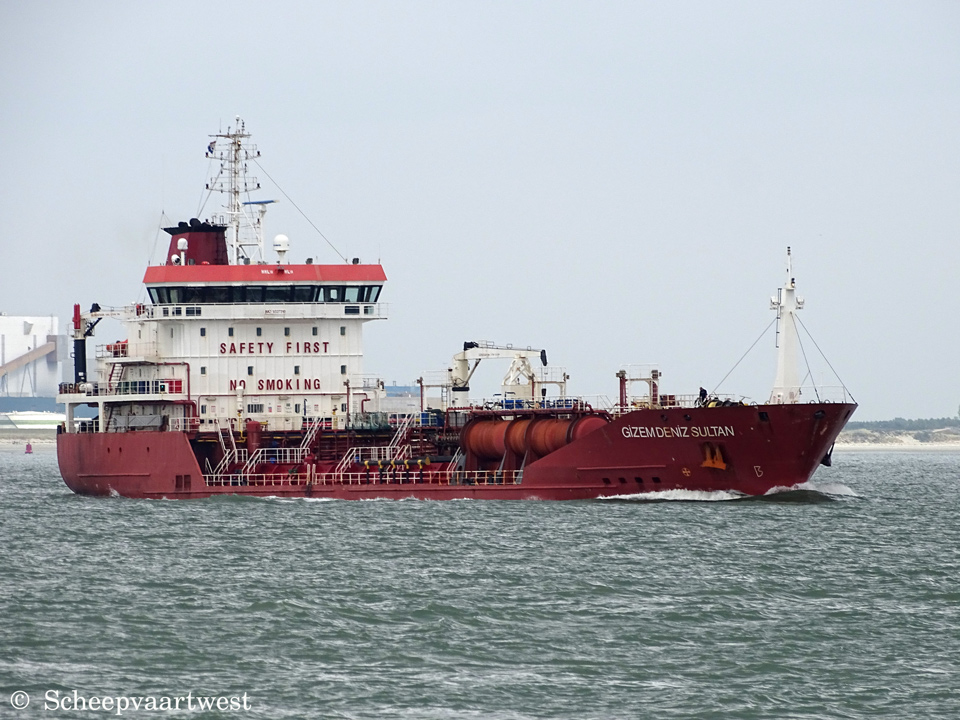

Gizemdeniz Sultan 01

Westerschelde 18 August 2018

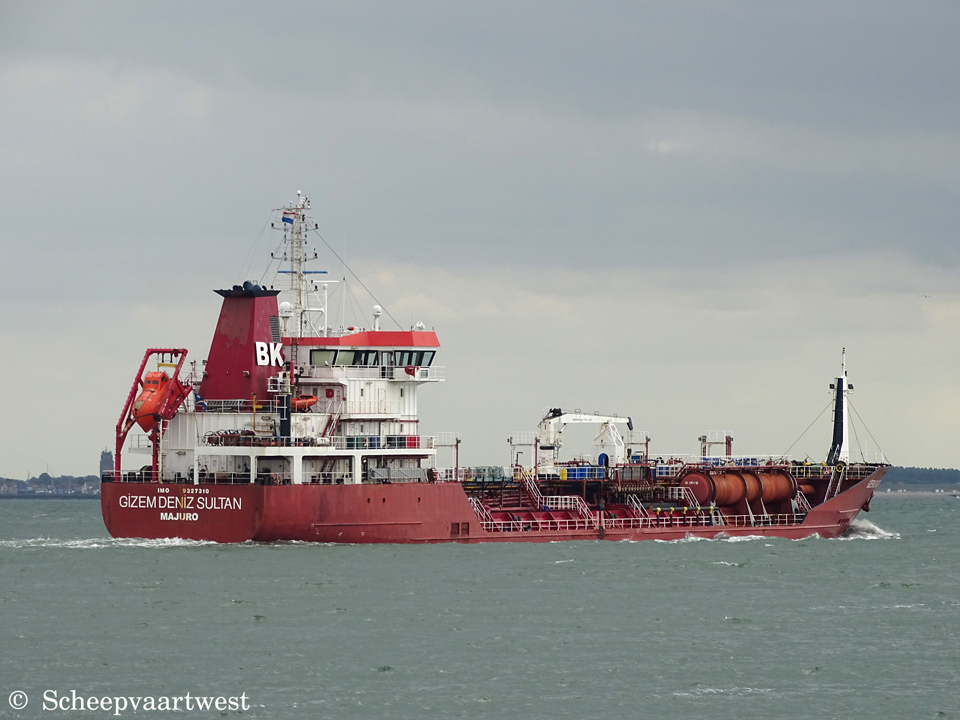

Gizemdeniz Sultan 02
Westerschelde 18/08/18



Name

GIZEMDENIZ SULTAN

Previous names

2006 build as: Camlibel

Type

Oil and chemical carrier

IMO-number

9327310

Call sign

V7AA5

Flag

Republic of the Marshall Islands

Port of registry

Majuro

Previous flags

2009 - 08/2013 Republic of Turkey, Istanbul

GT

3.934 t registered

DWT

Summer: 5.794 t

Winter: 5.598 t

NT

1.771 t registered

Displacement

Summer: 8.082 t

Winter: 7.886 t

Length

105,50 m overall

98,40 m between perpendiculars

Breadth

16,80 m extreme

Draught

Summer: 6,29 m

Winter: 6,20 m

Keel to masthead

32,00 m

Air draft

Lightship: 30,00 m

Normal ballast: 28,00 m

At loaded summer deadweight: 25,71 m

Freeboard

Summer: 1.120 mm

Winter: 1.251 mm

Depth

7,40 m moulded

Speed

Max: 15,0 knots

Built

2006

Keel laid

12/02/2005

Delivery date

27/04/2006

Builder

Torgem Shipyard (Torgem Gemi Insaat San. Ve Tic. A.S.)
Istanbul
Turkey

Yard number

80

Hull material

Ordinary strength steel

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 5

Oil tight: 4

Main engine

1x Wärtsilä 6L32 - 6 cylinder combustion engine 2.995 kW at 750 rpm

Manufacturer: Wärtsilä Finland Oy, Vaasa - Finland

Propellers

1x Controllable pitch propeller

Shaft generator

1x 165 kW

Generators

3x Main diesel generatorsets each 390 kW

Bow thruster

402 bhp

Number of cargo tanks

10

Cargo tank capacity 98%

6.291 m³

Number of slop tanks

2

Slop tank capacity 98%

161 m³

Number of segregations

12

Pumps

10 x Centrifugal cargo pumps each 300 m³/h

2x Centrifugal cargo pumps each 100 m³/h

1x Centrifugal cargo pump 70 m³/h
1x Centrifugal ballast pumps each 250 m³/h

Manifolds

Bow to centre manifold: 48,00 m

Stern to centre manifold: 58,00 m

Distance bridge front to centre of manifold: 37,00 m

Distance between cargo manifold centres: 430 mm

Distance ships rail to manifold: 4.400 mm

Distance manifold to ships side: 4.400 mm

Top of rail to centre of manifold: 1.600 mm

Distance main deck to centre of manifold: 3.200 mm

Spill tank grading to centre of manifold: 1.200 mm

Number of tanks

Ballast: 12

Fuel oil: 6

Fresh water: 4

Waste water: 4

Diesel oil: 4

Thermal oil: 3

Chain: 2

Slop: 2

Sludge: 1

Hydraulic oil: 1

Lubricating oil: 1

Tank capacities

Ballast: 2.335,91 m³

Fuel oil: 251 m³

Gas oil: 66 m³

Lifting equipment

1x Hose handling crane - SWL 5,0 t

1x Provision crane - SWL 2,0 t

Manager

VBG Denizcilik Sanayi Ve Ticaret AS

Technical operator

Bilka Denizcilik Sanayi Ticaret A.S.
Halk Sokak 52/6, Sahrayicedit Mah
Kadikoy
34742 Istanbul
Turkey

Commerical operator

UNI-Chartering
Turbinevej 10
5500 Middelfart
Denmark

Registered owner

Garanti Denizcilik A.S.
Sahrayicedid Mah. Halk Sokak. Siddiklar İs Merkezi no. 52/6

Kadikoy
Istanbul, 34734
Turkey

Disponent owner

Free Sipping and Trading Corporation
Majuro
Marshall Islands

Latest data adjustment

15 December 2018
