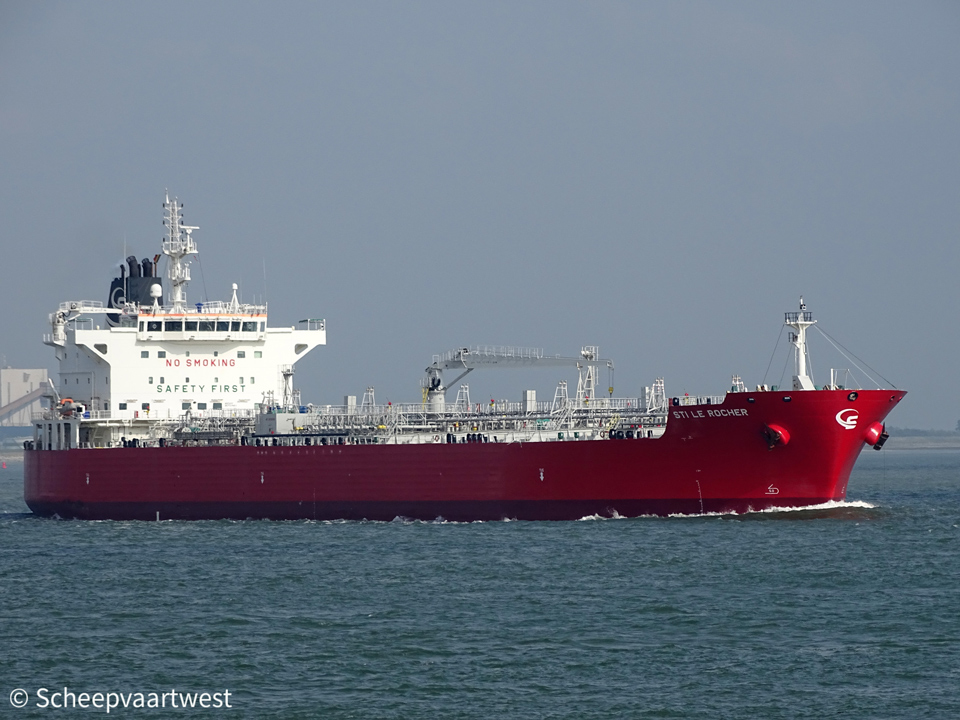

STI Le Rocher 01

Westerschelde 22 August 2018

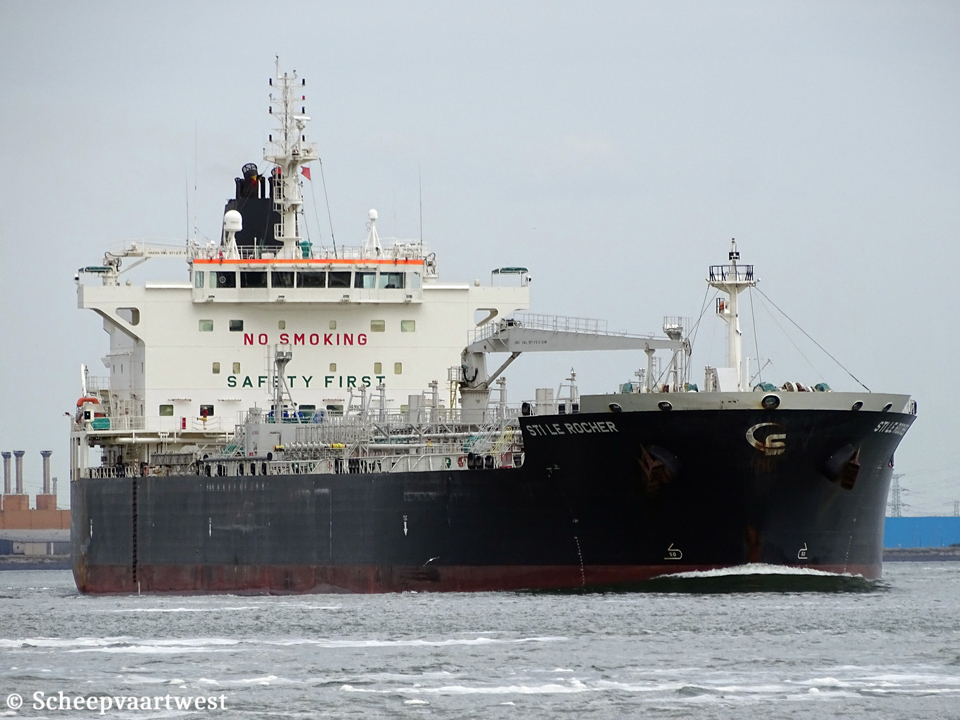

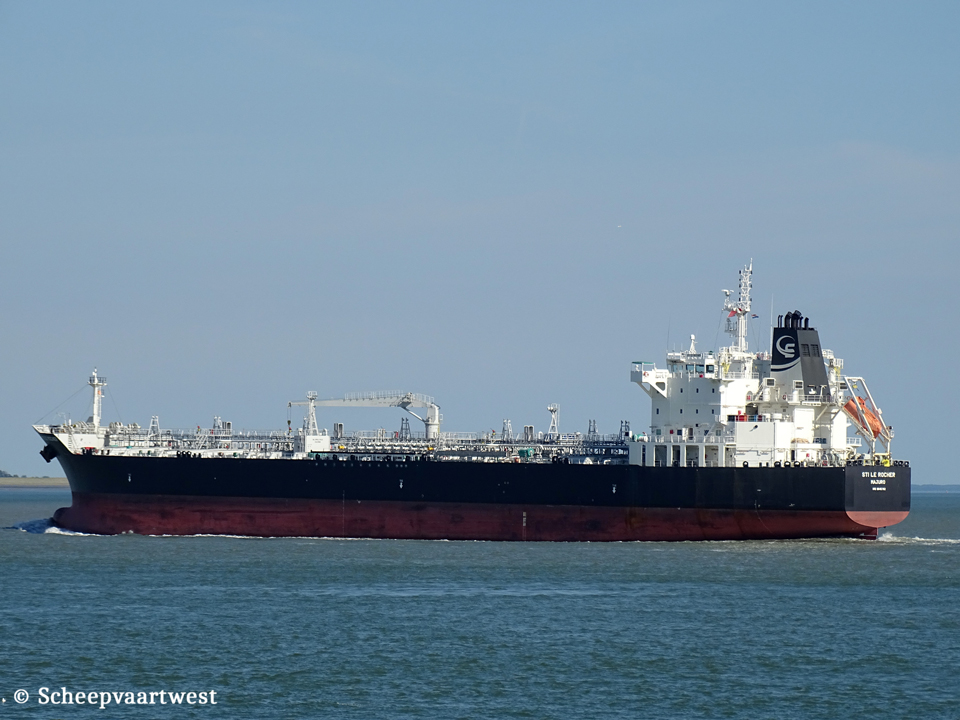

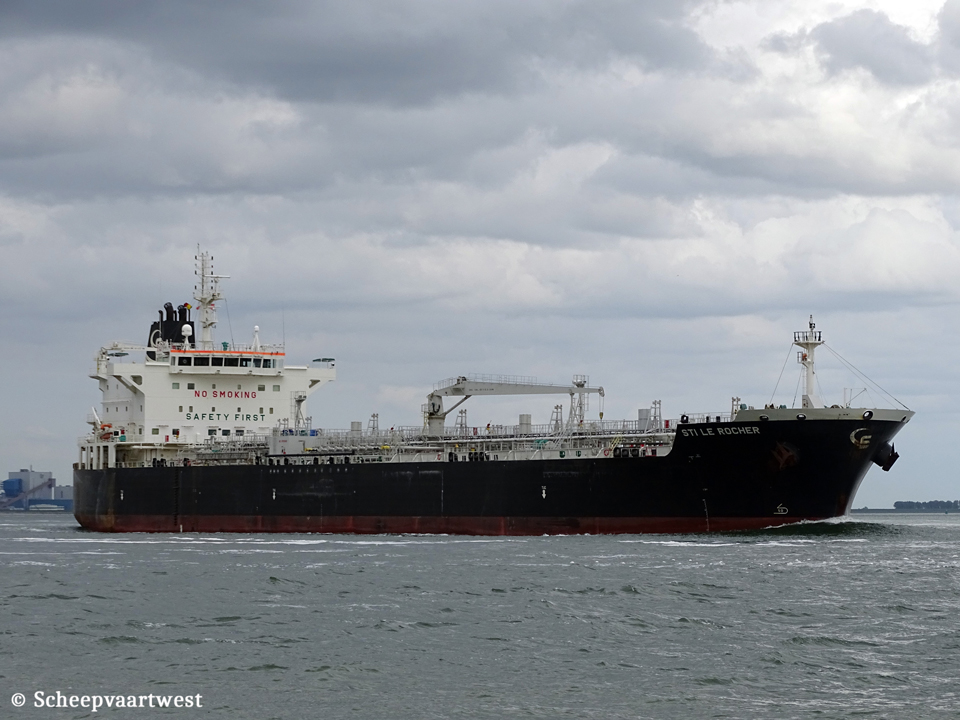

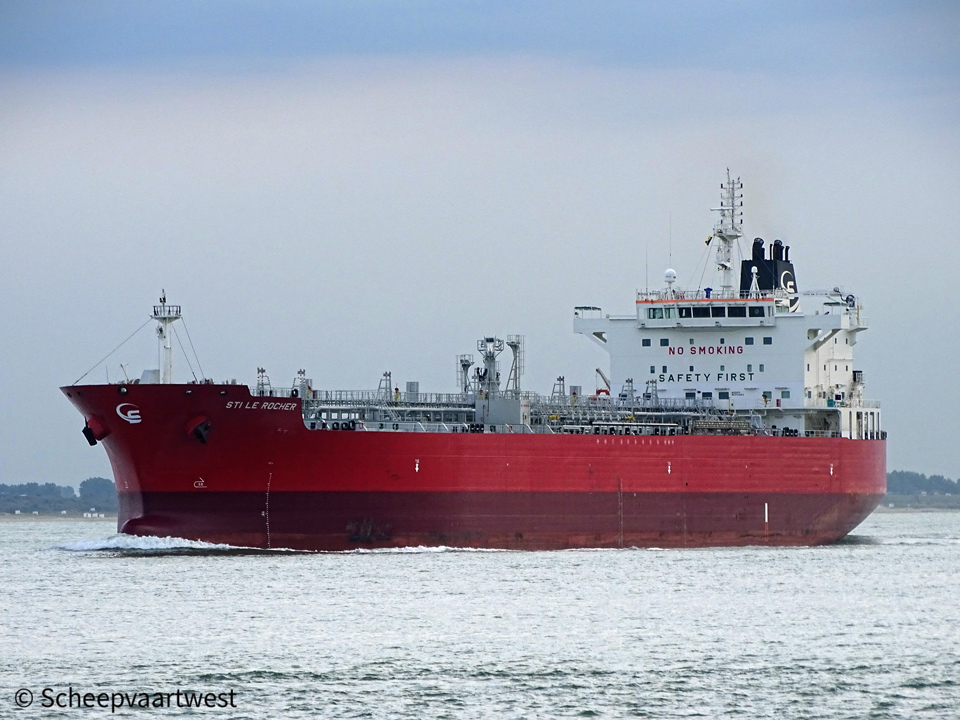

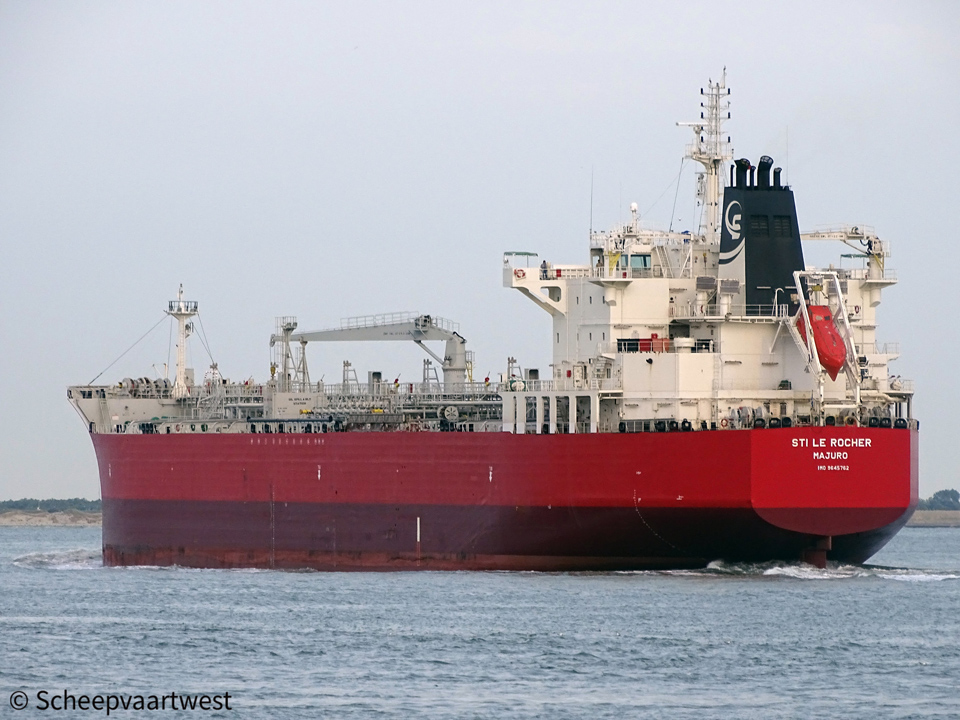

STI Le Rocher 02   STI Le Rocher 03   STI Le Rocher IMO 9645762 04   STI Le Rocher IMO 9645762 05   STI Le Rocher IMO 9645762 06   STI Le Rocher IMO 9645762 07
Westerschelde 16/08/18 Westerschelde 16/08/18   Westerschelde 01/05/17   Westerschelde 01/05/17   Westerschelde 01/05/17   Westerschelde 15/08/16


Name

STI LE ROCHER

Type

Chemical & Oil product tanker

IMO-number

9645762

Call sign

V7BC9

Flag

Marshall Islands

Port of registry

Majuro

GT

29.715 t registered

Suez: 31.346,19 t

DWT

Summer: 51.622 t

NT

13.483 t registered

Panama: 24.667 t

Suez: 27.452,02 t

Length

183,31 m overall

174,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Max: 13,02 m

Keel to mast end

49,81 m

Freeboard

6.108 mm

Depth

19,10 m moulded

Speed

14,5 knots

Built

2013

Keel laid

04/03/2013

Launch date

18/04/2013

Delivery date

27/06/2013

Builder

Hyundai Mipo Dockyard Co. Ltd.

Ulsan

South Korea

Yard number

2347

Hull material

Ordinary strength steel

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 4

Oil tight: 8

Main engine

1x MAN-B&W 6S50ME-B9.2 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 8.890 kW / 12.087 hp at 99,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Fired boiler - 9,0 MPa

1x Fired exhaust gas boiler - 9,0 Mpa

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12 + 2 slop tanks

Cargo tank capacity 100%

55.203 m³

Number of slop tanks

2

Number of pumps

12x Cargo pumps each 600 m³/h

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 8

Diesel oil: 4

Fresh water: 3

Waste water: 3

Chain: 2

Sludge: 2

Hydraulic oil: 1

Tank capacities 100%

Diesel oil: 300 m³

Freshwater: 298,8 m³

Fuel oil: 1.469,9 m³

Lube oil: 113,9 m³

Tank ballast: 22.426 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

Manufacture: Oriental Prec & Eng'g Co.

1x Hose handling crane - SWL 10,0 t

Manufacture: Dongnam Marine Crane Co., Ltd.

1x Provision Crane port - SWL 2,0 t

1x Provision Crane starboard - SWL 4,0 t

Manufacture: Hae An Machinery Ind. Co., Ltd.

Commercial manager

Scorpio Commercial Management

Le Millenium, 9 Boulevard Charles III

Monaco, 98000

Monaco

ISM manager

Zenith Gemi Isletmeciligi A.S.

Kat 18, C-Blok, Buyaka2 Sitesi, Poligon Caddesi 8, FSM Mah, Umraniye

34771 Istanbul

Turkey

Registered owner

Xiang T3 HK International Ship lease Co. Limited, Hong Kong - China

Care of Scorpio Commercial Management SAM

Le Millenium, 9, boulevard Charles III

98000 Monaco-Ville

Monaco

Latest data adjustment

14 October 2022
