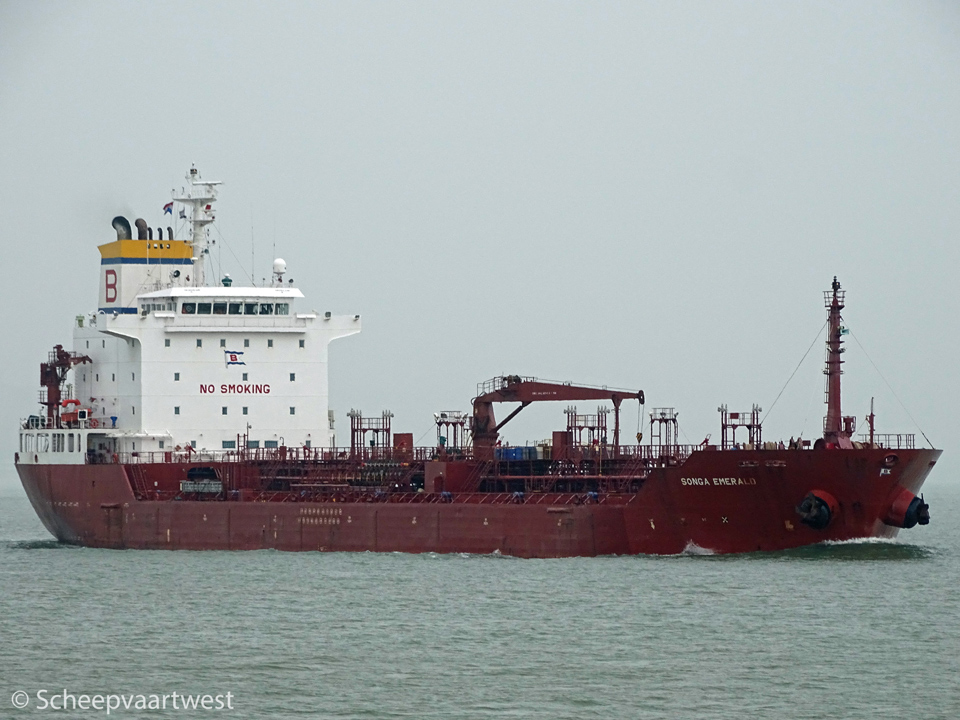

Songa Emerald 01

Westerschelde 13 April 2018

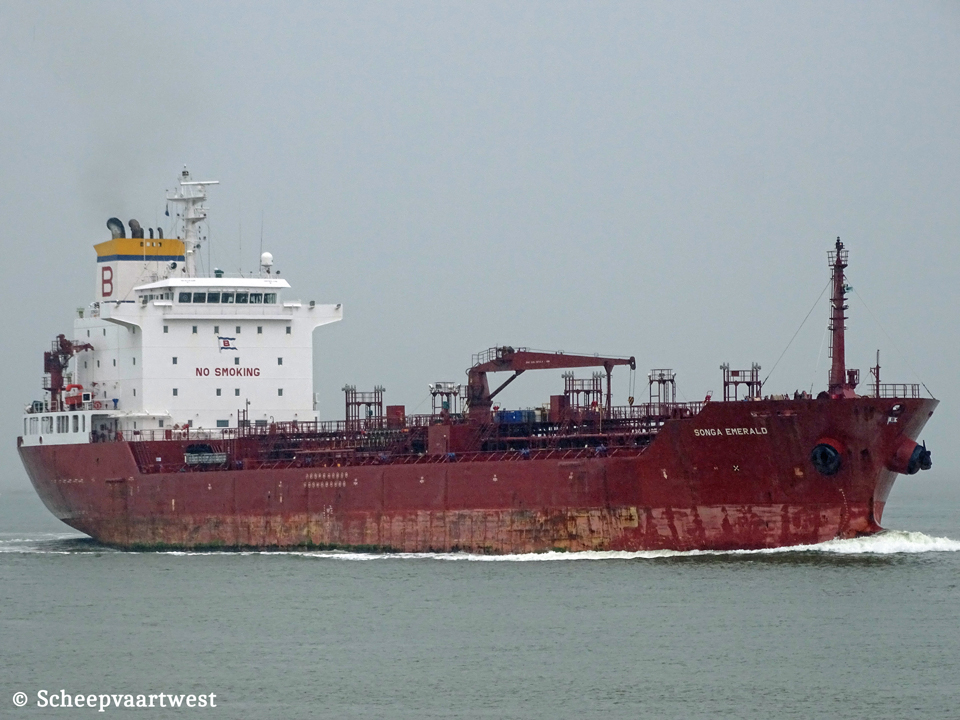

Songa Emerald IMO 9473937 02
Westerschelde 03/04/18


Name

SONGA EMERALD

Type

Oil/Chemical tanker

IMO-number

9473937

Call sign

V7RO7

Flag

Marshall Islands

Port of registry

Majuro

GT

11.259 t

DWT

Summer: 17.604,16 t

NT

5.265 t

Length

144,06 m

Breadth

22,59 m extreme

Draught

Max: 9,21 m

Reg. Dimensions Lx B x D

144,00 x 22,60 X 12,50 m

Rule Dimensions Lx B x D

136,00 x 22,60 X 12,50 m

Freeboard

Summer: 3.312 mm

Depth

12,50 m moulded

Speed

Max: 15,0 knots

Built

2009

Keel laid

11/03/2009

Launch date

08/05/2009

Date of completion

06/07/2009

Builder

Samho Shipbuilding Co., Ltd.

Tongyeong

South Korea

Yard number

SH-1208

Hull material

Steel

Hull type

Double hull

Watertight bulkheads

Transverse: 13

Continuous decks

1

Main engine

1x STX/MAN-B&W 8S35MC -2 stroke single acting 8 cylinder 350 x 1.400 mm combustion engine Mcr 5.920 kW at 173,0 rpm

Built: 04/2009

Manufacturer: STX Engine Co., Ltd., Changwon - South Korea

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary Boiler water tube boiler - 9,0 bar

Heating surface: 184,2 m²

2x Economizer exhaust gas boiler - 14,0 bar

Heating surface: 218,7 m²

Built: 04/2009

Manufacturer: Miura Boiler Co., Matsuyama

Generators

3x Main diesel generatorsets each 937 kW - 450 Volt

Bow thruster

1x 493 kW

Number of cargo tanks

14 + 2 slop tanks

Cargo tank capacity 98%

17.901,84 m³ excluding slop tanks

Number of slop tanks

2

Slop tank capacity 98%

716,40 m³

Segregation

15

Pumps

14x Framo centrifugal cargo pumps

2x Framo centrifugal ballast pumps

Tank capacities

Fuel oil: 914,0 m³

MDO: 112,13 m³

Fresh water: 469,1 m³

Water ballast: 7.681 m³

Lifting equipment

1x Hose handling crane - SWL 4,0 t

Crew size

25

Manager

Songa Shipmanagement Ltd.

Operator

Songa Shipmanagement Ltd.

Registered owner

Songa Product & Chemical tankers IV AS

Group

Arne Blystad AS

Haakon VIIs gt. 1, 11th floor

0161 Oslo

Norway

Renamed

09/ 2019 Emerald

Marshall Islands; Majuro - Call sign: V7RO7

Manager & owner: National Shipping S.A., Buenos Aires - Argentina

02/2021 J C Bazan

Argentina - Call sign: LW3877

Manager & owner: National Shipping S.A., Buenos Aires - Argentina

Latest data adjustment

23 may 2023
