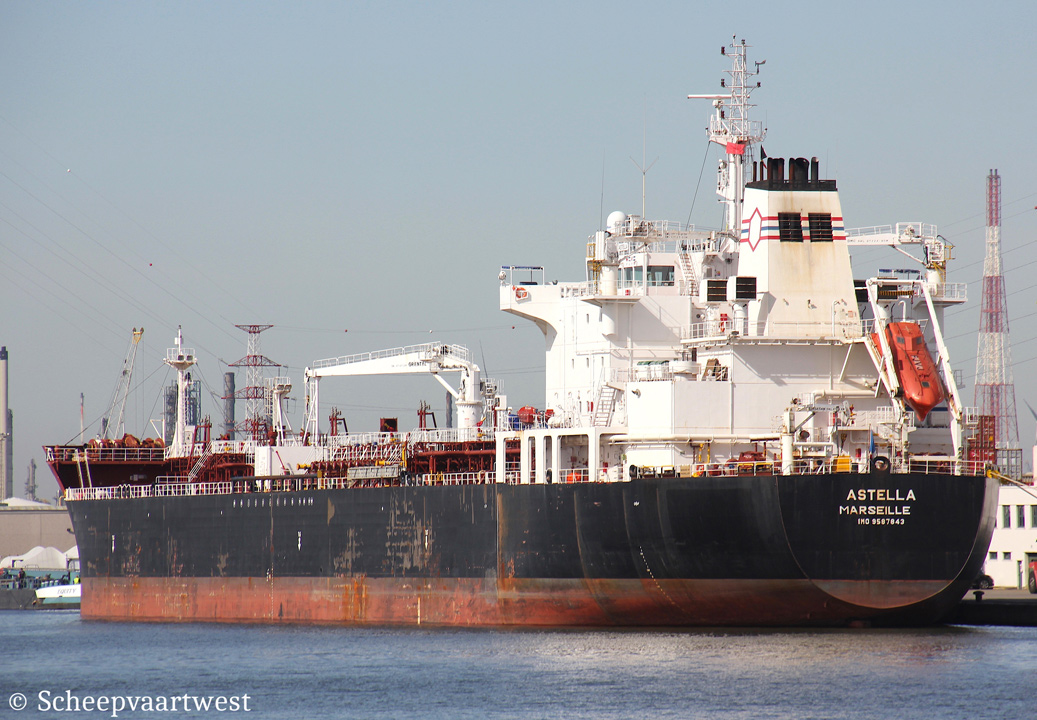

Astella 01

Antwerpen 17 September 2018

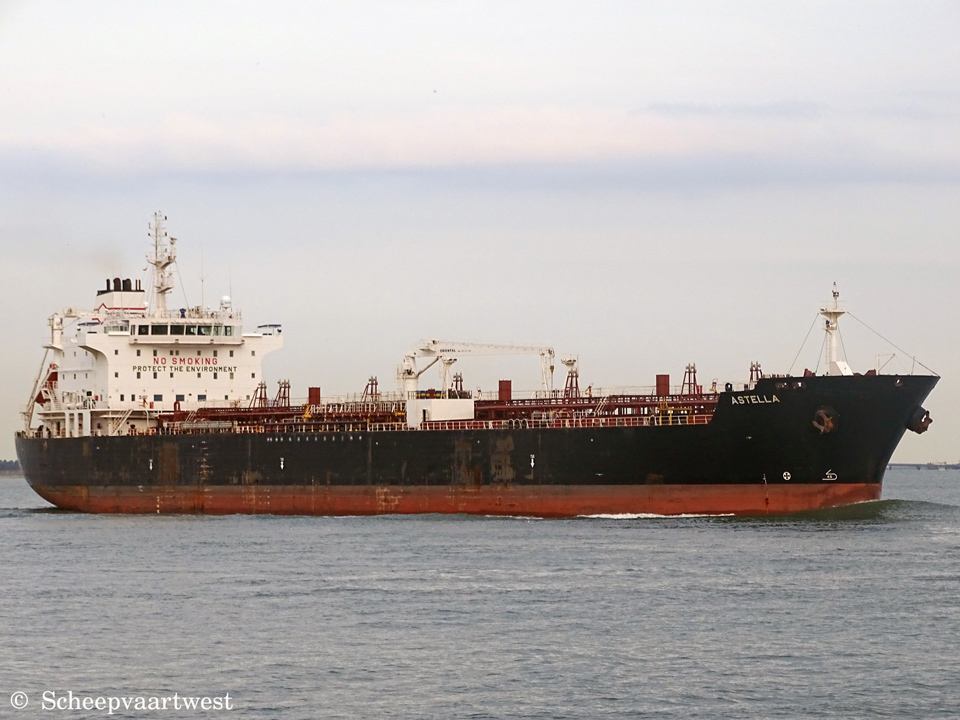

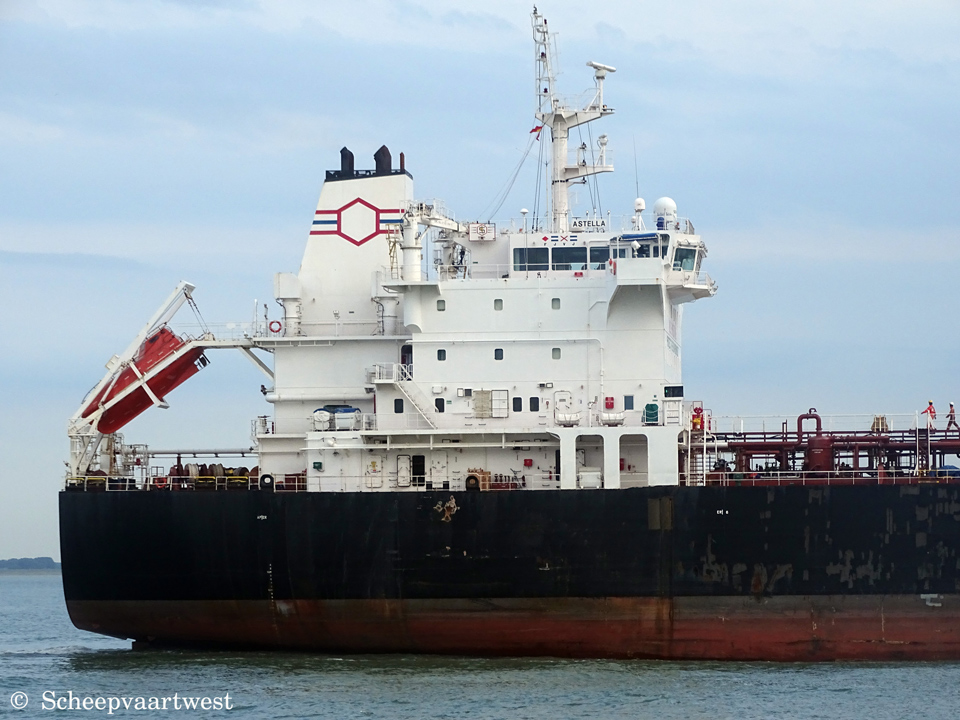

Astella 02   Astella 03
Westerschelde 16/08/18 Westerschelde 16/08/18


Name

ASTELLA

Type

Chemical and oil product tanker

Main products

Chemicals

IMO-number

9587843

Call sign

FJVJ

Flag

France

Port of registry

Marseille

Previous flags

2011 - 2016 Marshall Islands, Majuro - Call sign: V7VV5

GT

23.248 t

DWT

Summer: 37.583 t

NT

9.919 t

Length

184,00 m overall

176,00 m between perpendiculars

Breadth

27,40 m

Draught

Max: 11,51 m

Freeboard

5.714 mm

Depth

17,20 m

Speed

Max: 15,5 knots

Built

2011

Keel laid

20/12/2010

Launch date

16/02/2011

Date of completion

28/04/2011

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan

South Korea

Yard number

2312

Hull material

Steel

Hull type

Double hull

Watertight compartments

9

Continuous decks

1

Main engine

1x Hyundai-B&W6S46MC-C8 - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 10.679 hp at 129,0 rpm

Built: 23/11/2010

Builder: Hyundai Heavy Ind. Co., Ltd., Ulsan - South Korea

Propellers

1x Mono-block screw propeller solid

Builder: Hyundai Heavy Industries Co., Ltd.

Boilers

1x CHO 110,00 m² - 9,0 bar
1x CHR 36,00 m² - 12,0 bar

Generators

3x Main diesel generatorsets each 925 kVA - 740 kW - 1.060 hp

Emergency generator

1x Diesel generatorset 188 kVA - 150 kW - 245 hp

Number of cargo tanks

14

Total capacity of tanks

42.657,9 m³

Number of slop tanks

2

Pumps

10x Framo Deepwell cargo pumps each 500 m³/h

2x Framo Deepwell cargo pumps each 300 m³/h

2x Framo Deepwell cargo pumps each 200 m³/h

2x Ballast pumps each 750 m³/h

Tank capacities

Fuel oil: 1.331,9 m³

Ballast: 17.500 m³

Anchor equipment

Length: 605,00 m

Diameter: 66 mm

Lifting equipment

1x Crane - SWL 2,0 t

1x Crane - SWL 4,0 t

1x Crane - SWL 10,0 t

Crew size

25

Manager

Socatra
9, Allées de Tourny

33000 Bordeaux

France

Registered owner

Astella Acquisition SA

Latest data adjustment

27 October 2018
