Westerschelde 09 July 2015 |
 |
|
| Westerschelde 05/07/15 | |
|
Name |

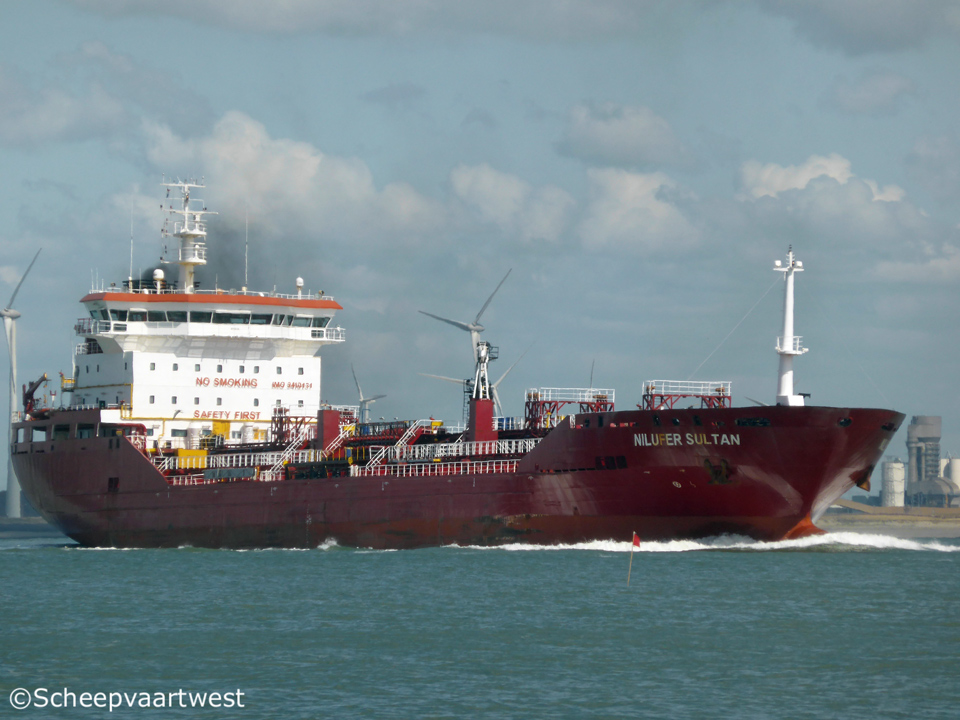

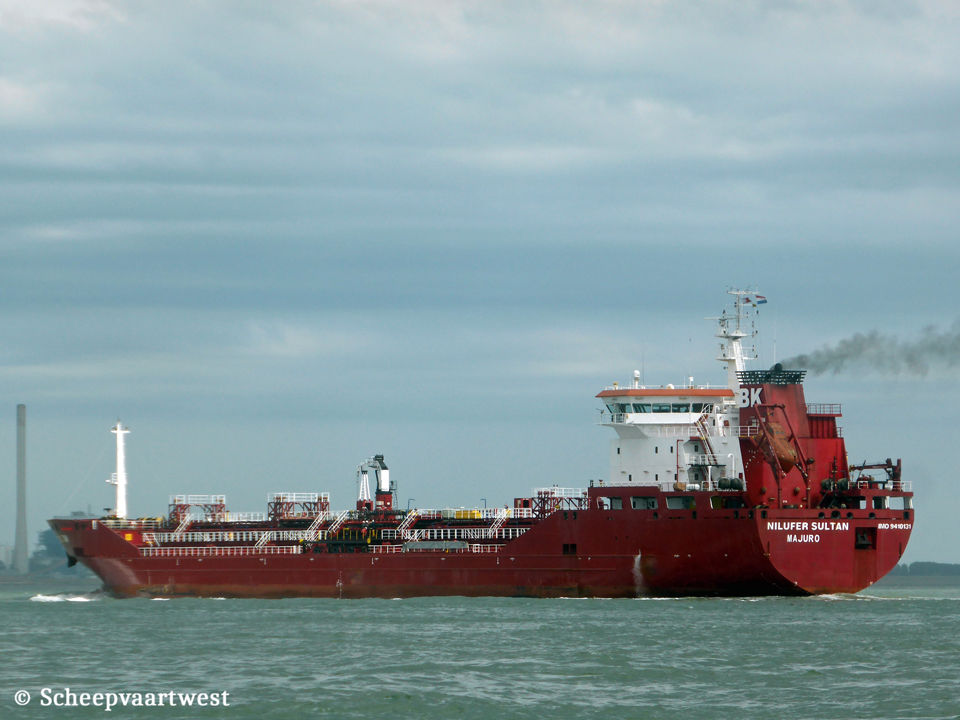

NILUFER SULTAN |
|
Type |
Oil tanker/Chemical tanker |
|
IMO-number |
9410131 |
|
Call sign |
V7ZG2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
02/2008 - 09/2012 Turkey, Istanbul - Call sign: TCTI6 |
|
GT |
12.619 t registered Suez: 14.084,5 t |
|
DWT |
Summer: 19.999 t Winter: 19.344 t |
|
NT |
6.766 t registered Panama: 10.604 t Suez: 12.290,6 t |
|
Displacement |
Summer: 26.506 t Winter: 25.850 t |
|
Length |
162,90 m overall 152,10 m between perpendiculars |
|
Breadth |
22,40 m extreme |
|
Draught |
Summer: 9,70 m Winter: 9,50 m |
|
Keel to masthead |
39,90 m |
|
Air draft |
37,23 m light ship 34,05 m Normal ballast 30,20 m At loaded summer deadweight |
|
Freeboard |
Summer: 3.113 mm Winter: 3.320 mm |
|
Depth |
12,80 m moulded |
|
Speed |
Max: 16,8 knots |
|
Built |
2008 |
|
Keel laid |
29/10/2006 |
|
Launch date |
03/02/2008 |
|
Delivery date |
16/10/2008 |
|
Builder |
Admarin Gemi Yapim San. Ve Tic. A.S. (Admarin Shipyard) Turkey |
|
Yard number |
10 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 4 Gas tight: 1 Oil tight: 9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6L48/60 B - 4 stroke single acting 6 cylinder 480 x 600 mm combustion engine Mcr 6.300 kW / 8.565 hp at 500 rpm Builder: MAN-B&W Diesel AG, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHR 900,00 m² - 10,0 bar 2x CHO 2.500,00 m² - 10,0 bar |
|
Shaft generator |
1.500 kW |
|
Generators |
2x Main diesel generatorsets each 1.000 kVA - 800 kW - 1.087 hp 1x Main diesel generatorset 688 kVA - 550 kW - 1087 hp Manufacturer: HHI Electro Electrics |
|
Bow thruster |
1x Tunnel thruster 800 kW / 1.088 bhp, forward |
|
Number of cargo tanks |
20 |
|
Cargo tank capacity 98% |
22.769,3 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
599 m³ |
|
Number of pumps |
16x Centrifugal cargo pumps each 375 m³/h 2x Centrifugal cargo pumps each 150 m³/h 2x Centrifugal cargo pumps each 100 m³/h 1x Centrifugal cargo pump each 70 m³/h 2x Centrifugal ballast pumps each 500 m³/h |
|
Manifolds |
Bow to centre manifold: 81,08 m Stern to centre manifold: 79,68 m Distance bridge front to centre of manifold: 51,11 m Distance between cargo manifold centres: 850 mm Distance ships rail to manifold: 5.010 mm Distance manifold to ships side: 4.880 mm Top of rail to centre of manifold: 1.882 mm Distance main deck to centre of manifold: 2.561 mm Spill tank grating to centre of manifold: 900 mm |
|
Number of tanks |
Ballast: 20 Fuel oil: 10 Diesel oil: 4 Waste water: 3 Sludge: 3 Chain: 2 Lubricating oil: 2 Fresh water: 2 Potable water: 2 Thermal oil: 2 Organic compound: 1 |
|
Tank capacities |
Diesel oil: 63,29 m³ Freshwater: 326,74 m³ Fuel oil: 963,48 m³ Lube oil: 31,35 m³ Tank ballast: 8.696;8 m³ |
|
Lifting equipment |
1x Gurdesan hose handling crane - SWL 10,0 t 1x Gurdesan Hose Handling Crane - SWL 2,0 t |
|
Crew size |
20 |
|
Technical operator |
Bilka Denizcilik Sanayi Ticaret AS Halk Sokak 52/6 Sahrayicedit Mah, Kadikoy 34742 Istanbul Turkey |
|
Commercial operator |
Uni-Chartering / Denmark Turbinevej 10 5500 Middelfart Denmark |
|
Registered owner |
Garanti Denizcilik A.S. Halk Sokak 52/6 Sahrayicedit Mah, Kadikoy 34742 Istanbul Turkey |
|
Disponent owner |
Uni-Chartering / Denmark Turbinevej 10 5500 Middelfart Denmark |
|
Renamed |
08/2022 Aviva Marshall Islands, Majuro - Call sign: V7ZG3 Owner: Garanti Denizcilik A.S., Istanbul - Turkey Operator: Nerezza Denizcilik Sanayi ve Ticaret Anonim Sirketi, Istanbul - Turkey |
|
Latest data adjustment |
17 September 2023 |
